🔧 Camry - Oxygen Sensor Replacement

Your Camry has two exhaust sensors: the front Air/Fuel (A/F) sensor (before the catalytic converter) and the rear oxygen (O2) sensor (after the catalytic converter). Replacement is mostly unplug-and-unscrew, but access and heat are the main challenges.

Difficulty Level: Intermediate | Estimated Time: 0.8-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool fully (burn risk).
• ⚠️ Hybrid safety: do not touch any orange high-voltage cables or connectors.
• ⚠️ Support the car with jack stands before going underneath (never rely on a jack).
• ⚠️ Battery: disconnecting the 12V negative terminal is recommended to prevent accidental shorts and to avoid the engine starting unexpectedly.
• ⚠️ Avoid twisting the sensor harness while removing/installing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• 22mm oxygen sensor socket (slotted) (specialty)
• Torque wrench (10–80 Nm range)
• Trim clip tool
• Needle-nose pliers
• Penetrating oil
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front A/F sensor (upstream, Bank 1 Sensor 1) - Qty: 1
• Rear O2 sensor (downstream, Bank 1 Sensor 2) - Qty: 1
• Anti-seize compound (sensor-safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Open the trunk and access the 12V battery area; use a 10mm socket to disconnect the negative (-) terminal and isolate it so it can’t spring back.
• Spray penetrating oil on the sensor threads (where it screws into the exhaust) and let it soak 10–15 minutes.
• A/F sensor = front (manifold). O2 sensor = rear (after cat).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front of the car (if doing the rear sensor)

• Use a floor jack (rated 2-ton minimum) to lift the front at the proper jacking point.
• Place jack stands (rated 2-ton minimum) under the support points and lower onto them.
• Keep wheel chocks in place.

Step 2: Locate which sensor you’re replacing

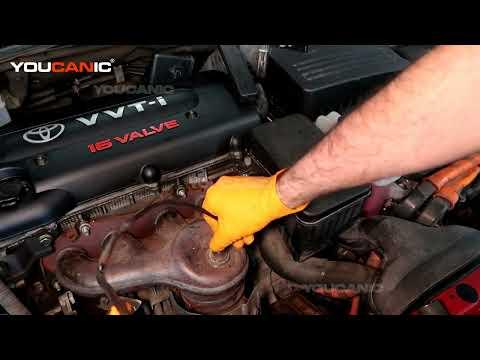

• Front A/F sensor (Bank 1 Sensor 1): on/near the exhaust manifold at the front of the engine bay.
• Rear O2 sensor (Bank 1 Sensor 2): threaded into the exhaust pipe after the catalytic converter (usually accessed from underneath).

Step 3: Unplug the sensor connector

• Release any harness clips using a trim clip tool or needle-nose pliers (gently).
• Press the connector lock tab and separate the plug by hand.
• Don’t pull on wires—pull on the connector body.

Step 4: Remove the old sensor

• Slide the wire through the slot of the 22mm oxygen sensor socket (slotted).
• Use a 3/8" drive ratchet with a 3/8" drive extension as needed and break the sensor loose.
• Unscrew the sensor the rest of the way by hand and remove it.

Step 5: Prepare and install the new sensor

• Compare the new sensor to the old one (same connector and length).
• If the new sensor threads are not pre-coated, apply a tiny amount of anti-seize compound (sensor-safe) to the threads only (avoid the tip).
• Thread the new sensor in by hand first to prevent cross-threading.
• Tighten using the 22mm oxygen sensor socket (slotted) and torque wrench:
  • Front A/F sensor: Torque to 44 Nm (32 ft-lbs)
  • Rear O2 sensor: Torque to 40 Nm (30 ft-lbs)

Step 6: Reconnect the wiring and secure the harness

• Plug the connector back in until it clicks.
• Reinstall any harness clips/retainers using a trim clip tool.
• Make sure the harness is not touching the exhaust.

Step 7: Lower the car and reconnect the 12V battery

• If lifted, raise slightly with the floor jack (rated 2-ton minimum), remove jack stands (rated 2-ton minimum), then lower the car.
• Reconnect the 12V negative terminal using a 10mm socket.

---

✅ After Repair

• Use an OBD2 scan tool to clear any stored codes.
• Start the car and listen for exhaust leaks (a “ticking” near the sensor area).
• Test drive 10–15 minutes, then re-scan for codes.
• If the same code returns, inspect the harness routing and connector pins for damage/corrosion.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,000-₹12,000 (parts + labor)

DIY Cost: ₹2,000-₹9,000 (parts only)

You Save: ₹2,000-₹6,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹1,500/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
