🔧 GLE - Upstream Oxygen Sensor Replacement

On your GLE, the upstream (pre-catalyst) oxygen sensor threads into the exhaust before the catalytic converter and helps the engine computer control fuel mixture. Replacing a failing upstream sensor can fix poor fuel economy, rough running, and a check engine light, but access can be tight and the exhaust gets extremely hot.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool fully before touching anything; it can cause severe burns.
• ⚠️ Support the SUV with jack stands on a level surface; never rely on a jack alone.
• ⚠️ Disconnect the negative battery cable before unplugging sensor wiring to avoid shorts.
• ⚠️ Do not twist the sensor harness while loosening the sensor; it can break internal wires.
• ⚠️ Use eye protection; rust and debris fall when working under the exhaust.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Oxygen sensor socket 22mm (7/8")
• Torque wrench (10-80 Nm range)
• Trim clip removal tool
• Pick tool
• Penetrating oil
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream (pre-catalyst) oxygen sensor - Qty: 1
• Anti-seize compound (oxygen-sensor safe) - Qty: 1
• Replacement underbody shield clips - Qty: 4

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the exhaust cool for at least 1 hour if the engine was recently running.
• Disconnect the battery: use a 10mm socket to remove the negative (-) cable and isolate it so it can’t spring back.
• Tip: Spray penetrating oil early for easier removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the SUV

• Use a floor jack (rated 3-ton minimum) to lift the front at the approved front jacking point.
• Set the SUV down onto jack stands (rated 3-ton minimum) placed at the front support points.
• Shake the SUV gently to confirm it’s stable before you get underneath.

Step 2: Remove the front underbody shield

• Use a trim clip removal tool to pop out plastic clips and a 10mm socket with a 3/8" drive ratchet to remove any small bolts holding the shield.
• Lower the shield and set it aside.
• Tip: Keep clips in a cup so none get lost.

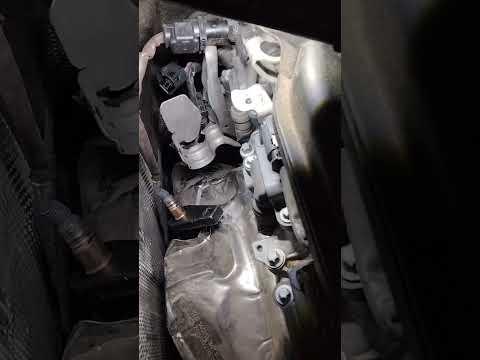

Step 3: Locate the upstream oxygen sensor and connector

• Find the sensor threaded into the exhaust pipe just before the catalytic converter (upstream/pre-cat).
• Follow the sensor wire to its electrical connector clipped to a bracket or harness.
• Use a pick tool to gently release any locking tab if it’s stubborn. (A locking tab is a small plastic catch that prevents the connector from unplugging.)

Step 4: Unplug the sensor and free the harness

• Unplug the connector by pressing the tab and pulling straight apart by hand.
• Use a trim clip removal tool to release the harness from any clips so the wire can rotate freely.
• Tip: Never pull on the wires—pull on the connector body.

Step 5: Loosen and remove the upstream oxygen sensor

• Spray the sensor threads area with penetrating oil and wait 5-10 minutes.
• Install the oxygen sensor socket 22mm (7/8") over the sensor hex, then use a 3/8" drive ratchet and 3/8" drive extension set as needed to break it loose.
• Once loose, unscrew it by hand and remove it with the harness.

Step 6: Install the new upstream oxygen sensor

• Compare the new sensor to the old one (same connector and length).
• If the new sensor threads are not pre-coated, apply a very small amount of anti-seize compound (oxygen-sensor safe) to the threads only—keep it off the tip.
• Thread the sensor in by hand first to avoid cross-threading (cross-threading is when threads go in crooked and damage the bung).
• Tighten with the oxygen sensor socket 22mm (7/8") and a torque wrench (10-80 Nm range): Torque to 50 Nm (37 ft-lbs).

Step 7: Route the harness and reconnect

• Clip the harness back into its holders using the trim clip removal tool as needed.
• Plug in the connector until it clicks and gently tug to confirm it’s locked.
• Make sure the wire is not touching the exhaust or any sharp edges.

Step 8: Reinstall the underbody shield and lower the SUV

• Reinstall the shield using the 10mm socket, 3/8" drive ratchet, and any replacement underbody shield clips needed.
• Lift slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), and lower the SUV.

Step 9: Reconnect the battery and clear codes

• Reconnect the negative battery cable using a 10mm socket.
• Use an OBD2 scan tool to clear stored fault codes.

---

✅ After Repair

• Start the engine and listen for exhaust leaks near the sensor (a “ticking” sound can indicate a leak).
• Use the OBD2 scan tool to confirm no oxygen-sensor codes return.
• Take a 10-15 minute test drive, then recheck for warning lights.
• Recheck that the harness is still clipped up and away from the exhaust after the drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $190-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
