🔧 Oxygen Sensor - Replacement

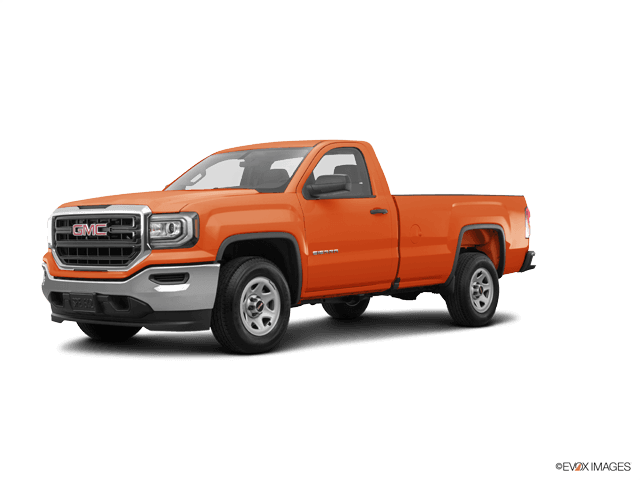

Assumption: This guide covers the upstream Bank 1 Sensor 1 oxygen sensor on your Sierra. Oxygen sensor location changes by bank and upstream/downstream position, so if you’re replacing a different sensor, the mounting point and access may differ.

The sensor threads into the exhaust and must be removed carefully so the threads and wiring are not damaged. After replacement, clear the fault code and confirm the engine runs normally.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Allow the exhaust to cool completely before starting. Exhaust parts can cause severe burns.
• Use jack stands if you need access under the truck. Never rely on a jack alone.
• Keep hands and wiring away from the exhaust pipe and catalytic converter.
• Disconnect the negative battery cable if the sensor connector is difficult to access or if you want to avoid setting additional codes.
• Penetrating oil helps, but use it sparingly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket 7/8 in (22mm)
• 3/8 in ratchet
• 3/8 in extension
• Breaker bar
• Penetrating oil
• Torque wrench
• Flat-head trim tool
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Nitrile gloves
• OBD-II scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor - Qty: 1
• Anti-seize compound - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the exhaust cool fully.
• If needed, raise the truck and support it securely with jack stands.
• Have the replacement sensor ready before removing the old one.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the sensor

• Find the oxygen sensor on the exhaust pipe or manifold.
• Trace the sensor wire to its electrical connector.
• Follow the wire before touching the sensor.

Step 2: Disconnect the connector

• Use a flat-head trim tool if needed to release the connector lock.
• Unplug the electrical connector carefully.
• Inspect the connector for corrosion or melted terminals.

Step 3: Loosen the old sensor

• Apply penetrating oil to the sensor threads if they are rusty.
• Use a 7/8 in oxygen sensor socket, 3/8 in ratchet, and extension to break the sensor loose.
• If it is tight, use a breaker bar for more leverage.
• Do not twist the wire harness.

Step 4: Remove the sensor

• Spin the sensor out by hand once it is loose.
• Check the exhaust bung threads for damage or carbon buildup.

Step 5: Install the new sensor

• If the new sensor does not have pre-applied compound, apply a small amount of anti-seize compound only to the threads. Keep it off the tip.
• Thread the new sensor in by hand first to avoid cross-threading.
• Use the oxygen sensor socket 7/8 in (22mm) and torque wrench to tighten it.
• Torque to 41 Nm (30 ft-lbs).

Step 6: Reconnect the harness

• Route the wire exactly like the original so it stays away from the exhaust.
• Reconnect the electrical connector until it clicks.
• Add a small amount of dielectric grease to the connector seal if desired.

Step 7: Verify the repair

• Lower the vehicle if it was raised.
• Use the OBD-II scan tool to clear the code.
• Start the engine and check for leaks, warning lights, or a loose connector.

---

✅ After Repair

• Drive the truck for a short test route.

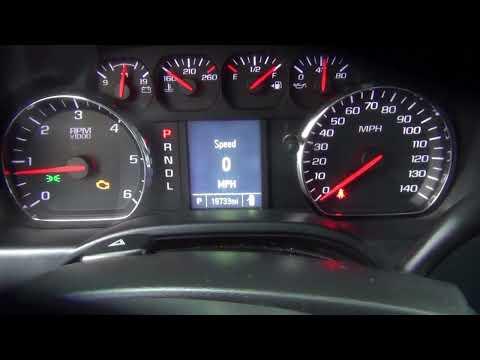

• Confirm the check engine light stays off.
• Re-scan for codes after the drive cycle if the light returns.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
