🔧 Fit - Oxygen Sensor Replacement

Your Fit has two exhaust oxygen-related sensors: an upstream air/fuel ratio sensor (before the catalytic converter) and a downstream oxygen sensor (after the catalytic converter). Replacement is mostly the same idea—unplug the connector, remove the sensor from the exhaust, and install the new one—but access and the correct part depend on which sensor you’re replacing.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot; work on a cold engine.
• ⚠️ Support the car with jack stands; never rely on a jack alone.
• ⚠️ Wear eye protection; rust and debris fall when under the car.
• ⚠️ Keep the sensor wiring away from the exhaust after install.
• 🔋 Battery disconnect is recommended if you’re worried about shorting the connector: remove negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 22mm oxygen sensor socket (specialty)
• 3/8" drive ratchet
• 3/8" drive extension set
• Breaker bar 3/8" drive
• Torque wrench (10-80 ft-lb range)
• 10mm socket
• Flat trim tool
• Penetrating oil
• OBD2 scan tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air/fuel ratio sensor (Bank 1 Sensor 1) - Qty: 1
• Downstream oxygen sensor (Bank 1 Sensor 2) - Qty: 1
• Anti-seize compound (sensor-safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the exhaust cool completely (at least 1 hour after driving).
• Decide which sensor you’re replacing:
  • Upstream (B1S1) = closer to the engine, before the catalytic converter.
  • Downstream (B1S2) = after the catalytic converter, further back under the car.
• Tip: If you share your trouble code (P0137, P0420, etc.), I can confirm which sensor is most likely involved.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of the car

• Use wheel chocks at the rear wheels.
• Use a floor jack (rated 2-ton minimum) to lift the front at the proper front jack point.
• Place jack stands (rated 2-ton minimum) under the approved support points and lower onto them.

Step 2: Locate the sensor you’re replacing

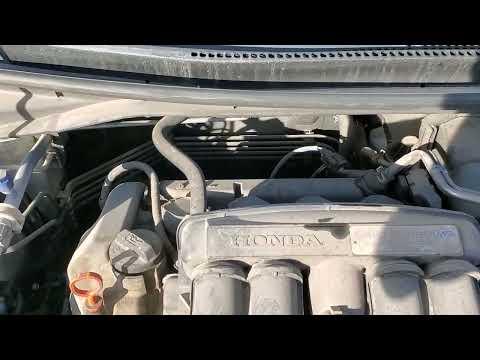

• For the upstream sensor, look on the exhaust pipe near the engine side of the catalytic converter.
• For the downstream sensor, look after the catalytic converter further back under the car.
• Use safety glasses and a flat trim tool to move any plastic clips or shields only if they block access.

Step 3: Unplug the sensor connector

• Spray the connector area lightly with penetrating oil only if it’s dirty (avoid soaking the electrical pins).
• Release the connector lock by hand; if needed, gently help with a flat trim tool.
• If a harness bracket is bolted on, remove it using a 10mm socket, then free the harness.
• Tip: Don’t twist the wires to remove the sensor.

Step 4: Loosen and remove the oxygen sensor

• Spray the sensor threads area with penetrating oil and wait 5–10 minutes.
• Place the 22mm oxygen sensor socket (specialty) over the sensor and attach a 3/8" drive ratchet and 3/8" drive extension set as needed.
• If it’s stubborn, use a breaker bar 3/8" drive to crack it loose, then spin it out by hand.

Step 5: Install the new sensor

• Compare old vs new sensor connector and wire length before installing.
• If the new sensor’s threads are not pre-coated, apply a tiny amount of anti-seize compound (sensor-safe) to the threads only (keep it off the sensor tip).
• Thread the sensor in by hand first to avoid cross-threading.
• Tighten using the 22mm oxygen sensor socket (specialty) and a torque wrench (10-80 ft-lb range): Torque to 44 N·m (33 ft-lb).

Step 6: Route the harness and reconnect

• Route the wiring exactly like the original, away from the exhaust.
• Reinstall any harness brackets using a 10mm socket.
• Reconnect the electrical connector until it clicks and locks.

Step 7: Lower the car

• Use the floor jack (rated 2-ton minimum) to lift slightly, remove the jack stands (rated 2-ton minimum), then lower the car.
• Remove wheel chocks.

---

✅ After Repair

• Use an OBD2 scan tool (specialty) to clear any stored codes.
• Start the engine and listen for exhaust leaks (a sharp “ticking” near the sensor area can indicate a leak).
• Test drive 10–15 minutes and re-check for a check engine light.
• If the code returns immediately, stop and tell me the exact code and whether you replaced upstream or downstream.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $70-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
