🔧 Camry - Oxygen Sensor Replacement

Your Camry has two exhaust sensors: the upstream Air/Fuel (A/F) sensor (before the catalytic converter) and the downstream Oxygen (O2) sensor (after the catalytic converter). Replacing the correct one fixes issues like a check engine light, poor fuel economy, or failed emissions readiness.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: This covers replacing either sensor (upstream or downstream) on the 2.5L hybrid exhaust layout.

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool fully; sensors thread into very hot parts.
• ⚠️ Support the car with jack stands on solid, level ground; never rely on a floor jack.
• ⚠️ Keep hands/tools away from orange high-voltage cables (hybrid system).
• ⚠️ Wear safety glasses; rust and dirt fall from underbody areas.
• 🔋 Battery disconnect is not usually required, but if you’re worried about shorting a connector, disconnect the 12V negative battery terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 22mm oxygen sensor socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Breaker bar (3/8" or 1/2" drive)
• Torque wrench (10-100 Nm range)
• Trim clip tool
• 10mm socket
• Penetrating oil
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

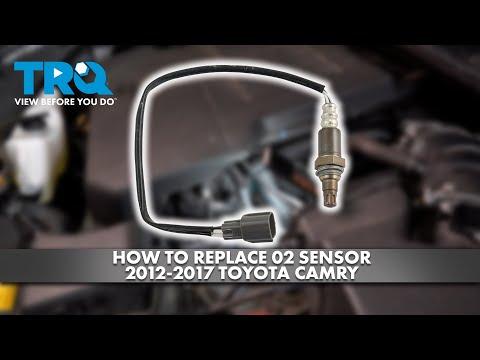

• Upstream Air/Fuel ratio sensor (Bank 1 Sensor 1) - Qty: 1
• Downstream oxygen sensor (Bank 1 Sensor 2) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Let the exhaust cool at least 45-60 minutes.
• If replacing the downstream sensor, raise the front and support with jack stands at proper lift points.
• Spray penetrating oil on the sensor threads and let it soak 10-15 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify which sensor you’re replacing

• Upstream sensor = Bank 1 Sensor 1 (in the exhaust manifold / front catalytic converter area).
• Downstream sensor = Bank 1 Sensor 2 (under the car, after the catalytic converter).
• Use an OBD2 scan tool to confirm the code points to B1S1 or B1S2.

Step 2: Gain access to the sensor

• If needed, raise the front using a floor jack (rated 3-ton minimum) and set it on jack stands (rated 3-ton minimum).
• Remove any small under-cover/clip that blocks access using a 10mm socket and trim clip tool.
• Tip: Keep bolts/clips in a small tray.

Step 3: Unplug the sensor electrical connector

• Locate the sensor harness and connector (do this before loosening the sensor).
• Release the lock tab by hand; if stuck, gently help it with a trim clip tool.
• Free the harness from any brackets/clips so it can rotate out with the sensor.

Step 4: Remove the old sensor

• Slide the 22mm oxygen sensor socket over the sensor wire and onto the hex.
• Use a 3/8" drive ratchet with a 3/8" drive extension set to loosen.
• If it’s very tight, switch to a breaker bar for controlled force.
• Once loose, spin it out by hand and remove it carefully.

Step 5: Install the new sensor

• Compare old vs new connector and length before installing.
• Start threading by hand first to avoid cross-threading.
• If the new sensor threads are not pre-coated, apply a tiny amount of anti-seize compound to the threads only (keep it off the tip).
• Tighten using the 22mm oxygen sensor socket and torque wrench: Torque to 40 Nm (30 ft-lbs).
• Tip: If it won’t thread by hand, stop and realign.

Step 6: Route the harness and reconnect

• Route the wiring exactly like the original (away from the exhaust).
• Clip the harness back into its brackets/clips by hand.
• Plug the connector in until it clicks and locks.

Step 7: Reinstall covers and lower the car

• Reinstall any under-cover using a 10mm socket and push-clips with a trim clip tool.
• Raise slightly with the floor jack (rated 3-ton minimum), remove jack stands, then lower the car.
• Remove wheel chocks.

---

✅ After Repair

• Clear codes with an OBD2 scan tool.
• Start the car and check for exhaust leaks or a burning smell from wiring touching the exhaust.
• Test drive 10-15 minutes and re-scan for pending codes.
• For emissions readiness, you may need several drive cycles before all monitors set.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $170-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
