🔧 4Runner - Oxygen (O2) / Air-Fuel (A/F) Sensor Replacement

Your 4Runner uses sensors in the exhaust to measure oxygen content so the engine computer can adjust fuel mixture and monitor the catalytic converters. A failed sensor can cause a check-engine light, poor fuel economy, rough running, or failed emissions readiness.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot—work on a fully cool exhaust to avoid burns.
• ⚠️ Support the truck with jack stands before going underneath; never rely on a jack alone.
• ⚠️ Do not pull on sensor wires; only twist the sensor hex with the proper socket.
• ⚠️ Battery disconnect is not required, but keep the key off to avoid accidental shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Penetrating oil
• 22mm oxygen sensor socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Breaker bar (3/8" or 1/2")
• Torque wrench (10-80 ft-lbs range)
• Trim clip remover
• 10mm socket
• Flashlight
• OBD2 scan tool (basic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Air/Fuel ratio sensor (upstream, Sensor 1) - Qty: 1
• Oxygen sensor (downstream, Sensor 2) - Qty: 1
• Anti-seize compound (sensor-safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• Let the exhaust cool completely (at least 1 hour after driving).
• Spray penetrating oil on the sensor threads where it meets the exhaust bung and let it soak 10–15 minutes.
• Tip: A sensor socket has a wire slot. A sensor socket is a deep socket with a side cutout so the wire can stay attached while you loosen/tighten.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify which sensor you’re replacing

• Use your OBD2 scan tool (basic) to read codes (examples: P0137/P0157 often point to downstream; P0130/P0150 or A/F related codes often point to upstream).
• Bank layout on the 4.0L V6: Bank 1 = passenger side, Bank 2 = driver side.
• Sensor layout: Sensor 1 (upstream A/F) is before the catalytic converter; Sensor 2 (downstream O2) is after the catalytic converter.

Step 2: Safely raise and support the truck (if needed)

• Lift with a floor jack (rated 3-ton minimum) at the front center jacking point.
• Set the frame onto jack stands (rated 3-ton minimum).
• Give the truck a gentle shake to confirm it’s stable before crawling underneath.

Step 3: Remove any skid plate that blocks access (if equipped)

• Use a 10mm socket (and your 3/8" drive ratchet) to remove skid plate bolts.
• Use a trim clip remover if you have plastic clips.
• Set the hardware aside in a small tray so nothing gets lost.

Step 4: Unplug the sensor connector

• Find the sensor wire and follow it to the connector clipped to the body/engine.
• Use a flashlight to see the lock tab clearly.
• Press the lock tab by hand (or gently with the trim clip remover) and unplug the connector.
• Tip: Never twist by the wire. Twisting the wire can break the sensor internally.

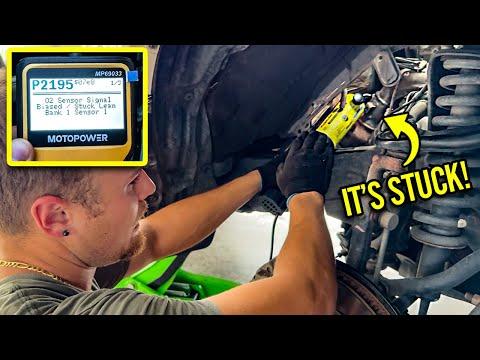

Step 5: Remove the old sensor

• Spray more penetrating oil at the sensor threads if it looks rusty.
• Slide the 22mm oxygen sensor socket over the wire and onto the sensor hex.
• Use a breaker bar (3/8" or 1/2") to crack it loose, then switch to a 3/8" drive ratchet and 3/8" drive extension set as needed to spin it out.

Step 6: Prepare and install the new sensor

• Compare the new sensor to the old one (same connector, same length, same tip style).
• If the new sensor threads are not pre-coated, apply a tiny amount of anti-seize compound (sensor-safe) to the threads only.
• Tip: Keep anti-seize off the sensor tip. Contamination can ruin readings.
• Start threading the new sensor by hand to avoid cross-threading (thread damage).
• Tighten with the 22mm oxygen sensor socket and torque wrench (10-80 ft-lbs range) to Torque to 44 Nm (32 ft-lbs).

Step 7: Reconnect wiring and resecure harness clips

• Plug the connector back in until it clicks.
• Reattach the harness to its clips/brackets so the wire can’t touch the exhaust.

Step 8: Reinstall skid plate (if removed) and lower the truck

• Reinstall skid plate hardware using the 10mm socket and 3/8" drive ratchet.
• Lift slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), then lower fully.

---

✅ After Repair

• Start the engine and listen for exhaust leaks (a “ticking” sound near the sensor area).
• Use the OBD2 scan tool (basic) to clear codes.
• Drive 10–15 minutes and recheck for pending/returning codes.
• If the check-engine light returns quickly, inspect the connector seating and ensure the sensor wire isn’t melted against the exhaust.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $80-$300 (parts only)

You Save: $170-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
