🔧 Versa - Radiator Hose Replacement

You’ll be draining some coolant, removing the old radiator hose, then installing the new hose and refilling/bleeding the cooling system. This matters because a weak or leaking hose can cause overheating and engine damage very quickly.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic to people and pets; catch it in a drain pan and clean spills.
• ⚠️ Keep hands/loose clothing away from the cooling fan; it can turn on unexpectedly.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel with long neck
• Pliers for hose clamps
• Channel-lock pliers
• Flat-head screwdriver
• Pick tool (small hook) (specialty)
• 10mm socket
• 10mm ratchet
• Torque wrench (10–100 Nm range)
• Trim clip removal tool
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upper radiator hose - Qty: 1
• Lower radiator hose - Qty: 1
• Hose clamps - Qty: 4
• Engine coolant (Nissan Blue long-life, 50/50 premix) - Qty: 2 gallons
• Radiator cap - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool fully (ideally 2+ hours).
• Set the climate control to Heat (HOT) later during bleeding so coolant flows through the heater core.
• Assumption: You want either the upper or lower radiator hose; steps below cover both—do the one you’re replacing (or do both while coolant is drained).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove pressure safely

• Put on safety glasses and nitrile gloves.
• With the engine completely cool, slowly loosen the radiator cap to the first “stop” to release any leftover pressure, then remove it fully.

Step 2: Raise the front (for easier access)

• Use a floor jack (rated 3-ton minimum) to lift the front of your Versa.
• Set it down securely on jack stands (rated 3-ton minimum).

Step 3: Drain the coolant

• Place a drain pan (at least 2-gallon) under the radiator drain (petcock) area.
• Open the drain carefully (use a flat-head screwdriver if needed) and let coolant drain.
• If coolant drains slowly, loosen the overflow reservoir cap to help it flow.

Step 4: Remove splash shield (if equipped)

• Use a trim clip removal tool to remove plastic clips.
• Use a 10mm socket with a 10mm ratchet to remove bolts holding the lower cover/splash shield.

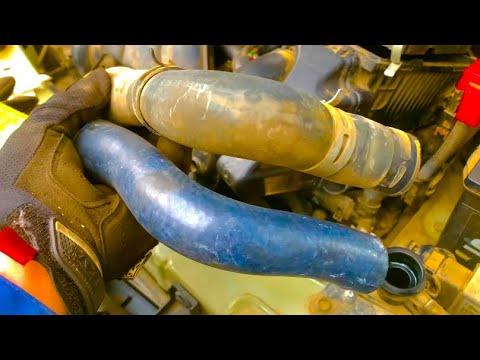

Step 5: Identify the hose you’re replacing

• Upper radiator hose: runs from the top of the radiator to the engine (coolant outlet).
• Lower radiator hose: runs from the bottom of the radiator to the engine (inlet/water pump side).
• Replace clamps if they look rusty or weak.

Step 6: Release the hose clamps

• Use pliers for hose clamps to squeeze the spring clamp tabs and slide the clamp back onto the hose.
• If you have a screw-type clamp, use a flat-head screwdriver to loosen it and slide it back.
• Spring clamps can snap—keep a firm grip.

Step 7: Remove the old hose (break the seal)

• Twist the hose by hand to break it loose (don’t just yank).
• If it’s stuck, gently work a pick tool (small hook) (specialty) under the edge to break the seal. (A pick tool is a small hooked tool used to separate stuck rubber from metal.)
• Pull the hose off and aim it into the drain pan—more coolant will spill out.

Step 8: Clean and inspect the fittings

• Use shop towels to wipe the radiator neck and engine neck clean.
• Check for cracks, heavy corrosion, or damaged “bead” (the raised lip that helps the hose stay on). If damaged, don’t force it—parts may need replacement.

Step 9: Install the new radiator hose

• Slide new hose clamps onto the new hose before installing it.
• Push the hose fully onto the radiator/engine fitting until it seats against the stop.
• Position the clamp behind the raised lip on the fitting (not on the very end).
• Use pliers for hose clamps to set spring clamps in place, or use a flat-head screwdriver to snug worm-gear clamps.

Step 10: Reinstall splash shield (if removed)

• Reinstall bolts using a 10mm socket and 10mm ratchet.
• Torque to 7 Nm (62 in-lbs) for small underbody 10mm bolts.
• Reinstall clips using a trim clip removal tool (and press them back in by hand).

Step 11: Refill coolant

• Close the radiator drain (petcock) securely.
• Use a funnel with long neck to slowly fill the radiator with Nissan Blue long-life, 50/50 premix.
• Fill the coolant overflow reservoir to the MAX line.
• If your Versa has an air-bleed screw near the engine coolant outlet, open it with the appropriate tool, then close it once coolant flows without bubbles.

Step 12: Bleed air and warm up

• Install the radiator cap.
• Start the engine and set cabin heat to HOT with the fan on low.
• Let the engine idle until it reaches normal temperature and the upper hose gets hot (this means the thermostat opened).
• Watch the temperature gauge; if it rises abnormally, shut the engine off and let it cool—air may still be trapped.

Step 13: Final level check

• Shut the engine off and let it cool fully.
• Recheck the overflow reservoir and top off to MAX using the funnel with long neck.
• Inspect both hose ends for seepage and reposition clamps if needed using pliers for hose clamps or a flat-head screwdriver.

---

✅ After Repair

• With the engine fully warm, confirm the cabin heater blows hot air (good sign coolant is circulating).
• Check for leaks after a 10-minute idle, then again after your first short drive.
• Recheck coolant level the next morning (cold engine) and top off the reservoir if it dropped.
• Dispose of old coolant properly (most parts stores accept used coolant).

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $180-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
