🔧 Fusion - Radiator Hose Replacement

Replacing a radiator hose fixes coolant leaks and helps prevent overheating. You’ll remove the old hose, install the new one with good clamps, then refill and bleed the cooling system so it doesn’t trap air.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

Assumption: You’re replacing the upper radiator hose (most common).

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; severe burns risk.
• ⚠️ Coolant is toxic; keep away from kids/pets and clean spills immediately.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Dispose of used coolant properly (do not pour on the ground).
• 🔋 Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Hose clamp pliers
• Channel-lock pliers
• Pick tool
• Flat-blade screwdriver
• 8mm socket
• 10mm socket
• 1/4" ratchet
• 3" extension
• Trim clip removal tool
• Funnel
• Shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upper radiator hose - Qty: 1
• Radiator hose clamps - Qty: 2
• Engine coolant (Motorcraft-spec orange, prediluted 50/50) - Qty: 2-3 gallons
• Distilled water - Qty: 1 gallon

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (best is overnight).
• Set the HVAC to heat later during bleeding (this helps coolant flow through the heater core).
• Know your clamp type: spring clamps use pliers; worm-gear clamps use a screwdriver or 8mm socket.
• Take a quick photo of hose routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the coolant pressure safely

• Verify the engine is stone cold.
• Place a shop rag over the coolant reservoir cap.
• Slowly loosen the cap to the first stop to release any leftover pressure, then remove it fully by hand.

Step 2: Raise the front (if you need access from underneath)

• Use a floor jack to lift the front at the proper jack point.
• Set the car down on jack stands and keep the wheel chocks in place.

Step 3: Drain enough coolant to get the hose off cleanly

• Position a drain pan (at least 10-quart) under the radiator drain area.
• If an undertray/splash shield blocks access, remove it using a trim clip removal tool and 8mm socket.
• Open the radiator drain (petcock) if accessible; use a flat-blade screwdriver if needed.
• Drain until the coolant level is below the upper hose height, then close the drain snugly by hand.
• Drain less = less air bleeding later.

Step 4: Remove the air intake ducting (if it blocks the upper hose)

• Loosen any intake duct clamps using an 8mm socket and 1/4" ratchet.
• Remove any duct fasteners with a 10mm socket.
• Lift the ducting out and set it aside.

Step 5: Remove the old upper radiator hose

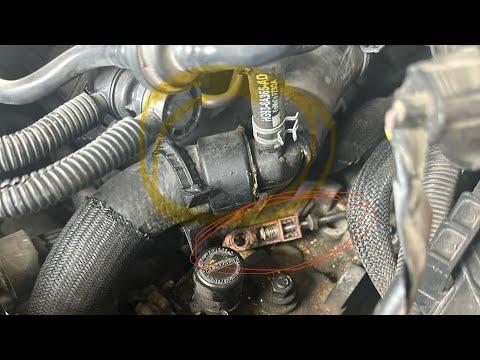

• Locate the upper hose running between the radiator and the engine (thermostat housing area).
• Move the clamp back from the hose end:
  • For spring clamps, squeeze and slide it back using hose clamp pliers (this tool grabs and locks the clamp open).
  • For worm-gear clamps, loosen with a flat-blade screwdriver or 8mm socket.
• Twist the hose to break it free. Use channel-lock pliers gently if needed.
• If it’s stuck, carefully work the edge with a pick tool to break the seal, then pull the hose off.
• Repeat for the other end and remove the hose.
• Don’t pry hard on plastic fittings.

Step 6: Prep the fittings and compare the new hose

• Wipe the radiator neck and engine-side neck with shop rags.
• Inspect the necks for cracks or heavy corrosion using a flashlight.
• Compare the new hose to the old one: same shape, same bends, same length.

Step 7: Install the new upper radiator hose

• Slide the clamps onto the new hose before installing.
• Push the hose fully onto the radiator neck first, then onto the engine-side neck.
• Position clamps behind the bead/ridge on each fitting.
• Secure the clamps:
  • Spring clamp: release it into position using hose clamp pliers.
  • Worm-gear clamp: tighten with a 8mm socket and 1/4" ratchet until snug (do not crush the fitting).

Step 8: Reinstall intake ducting and shields

• Reinstall intake ducting using a 10mm socket and 1/4" ratchet.
• Tighten intake clamps using an 8mm socket.
• Reinstall any splash shield using a trim clip removal tool and 8mm socket.

Step 9: Refill and bleed the cooling system

• Make sure the drain is closed.
• Use a funnel to fill the reservoir with the correct prediluted 50/50 coolant to the MAX line.
• Start the engine and let it idle with the reservoir cap off.
• Set the cabin heat to HOT and the fan to a low/medium speed.
• Watch the coolant level; add coolant as the level drops.
• When the engine reaches operating temp, you should feel the upper hose get hot (thermostat opened).
• Once bubbles slow down and the level stabilizes, install the cap hand-tight.
• Shut the engine off and let it cool fully, then recheck level and top off as needed.
• Low heat output usually means trapped air.

---

✅ After Repair

• Start the engine and inspect both hose ends for leaks using a flashlight.
• Test drive 10-15 minutes, then recheck for leaks and recheck coolant level after it cools.
• Verify the temperature gauge stays normal and the heater blows hot at idle.
• Check the area under the car for drips the next morning.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $45-$160 (parts only)

You Save: $90-$505 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
