🔧 Wrangler - Radiator Hose Replacement

Replacing a radiator hose on your Wrangler means draining some coolant, swapping the hose, then refilling and bleeding air so it doesn’t overheat. The exact access and steps change a bit between the upper and lower radiator hose.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can cause severe burns.
• ⚠️ Support your Wrangler with jack stands if you go underneath; never rely on a jack.
• ⚠️ Coolant is toxic—keep it away from kids/pets and clean spills immediately.
• 🔋 Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)

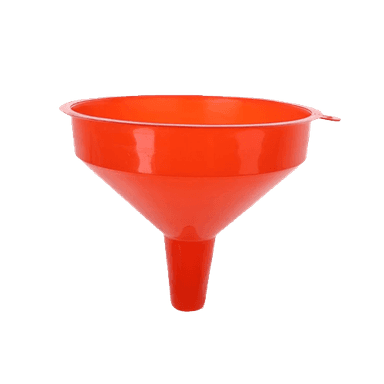

• Funnel
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Flathead screwdriver
• Hose clamp pliers
• Pick tool (small) (specialty)
• 8mm socket
• 10mm socket
• Ratchet
• Torque wrench (ft-lb range)
• Rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upper radiator hose - Qty: 1
• Lower radiator hose - Qty: 1
• Radiator hose clamps - Qty: 2
• Engine coolant (OAT, 10-year/150k type; 50/50 premix) - Qty: 1-2 gallons
• Distilled water - Qty: 1 gallon

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool completely (radiator hoses should feel cool to the touch).
• Set your HVAC to heat once you start bleeding later (this helps move coolant through the heater core).
• Decide which hose you’re replacing: upper or lower. The lower hose usually needs under-vehicle access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which hose and relieve pressure safely

• Verify the hose: the upper hose runs from the thermostat housing to the top of the radiator; the lower hose runs from the bottom of the radiator to the water pump inlet.
• Place a drain pan under the front of the engine bay.
• Slowly loosen the radiator cap to the first stop to release any remaining pressure.
• Remove the cap fully once no hissing is heard.

Step 2: Drain enough coolant to get below the hose level

• Position the drain pan under the radiator drain area (lower corner of the radiator).
• Open the drain carefully (use a flathead screwdriver only if your drain style requires it).
• Drain 1–2 gallons, then close the drain.
• Drain less if only doing the upper hose.

Step 3: Remove the old hose clamps

• Use hose clamp pliers to compress the spring clamp, then slide it back on the hose a few inches away from the fitting.
• If your Wrangler has screw-style clamps, loosen them with an 8mm socket or flathead screwdriver, then slide them back.
• Repeat for the clamp on the other end of the hose.
• Take a photo of clamp positions first.

Step 4: Break the hose free (without cracking fittings)

• Twist the hose by hand to break it loose from the radiator/engine fitting.
• If it’s stuck, gently work a pick tool (small) (specialty) under the hose edge to break the seal (a pick tool is a small hooked tool used to separate stuck rubber without prying hard).
• Pull the hose off and aim the end into the drain pan for any remaining coolant.

Step 5: Install the new hose

• Compare the new hose to the old one (length and bends should match).
• Slide the clamps onto the new hose before installing it.
• Push the hose fully onto each fitting until it seats against the hose stop/bead.
• Reposition the clamp(s) to the same location as factory: centered over the fitting bead area.
• If using screw clamps, tighten with an 8mm socket (snug, do not overtighten).

Step 6 (Lower hose only): Safely access from underneath if needed

• Raise the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove any front skid plate that blocks access using a 10mm socket and ratchet.
• Reinstall skid plate hardware after hose replacement: Torque to 12 Nm (9 ft-lbs) unless your hardware differs.

Step 7: Refill coolant and bleed air

• Using a funnel, refill the radiator with OAT 50/50 premix coolant until full.
• Fill the coolant reservoir to the MAX line.
• Start the engine and set HVAC to HOT with the fan on low.
• Let the engine idle while watching the coolant level; add coolant as the level drops.
• Once the thermostat opens (upper hose gets hot), top off again and install the radiator cap.

Step 8: Check for leaks

• With the engine running, inspect both ends of the hose for seepage.
• Shut the engine off, let it cool, then recheck the reservoir level and top off if needed.

---

✅ After Repair

• Test drive 10–15 minutes while watching the temperature gauge.
• After the engine fully cools, recheck the reservoir and add coolant to the MAX line if needed.
• Inspect for dried coolant residue around clamps the next day (a sign of a small leak).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$460 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
