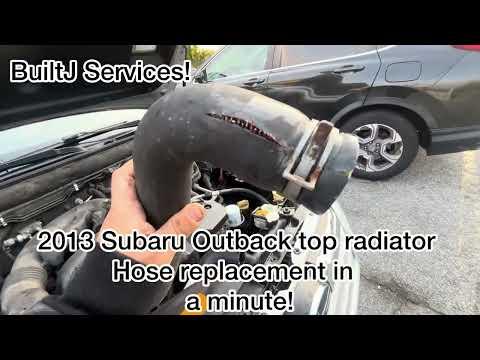

🔧 Outback - Radiator Hose Replacement

Replacing a radiator hose stops coolant leaks and helps prevent overheating. On your Outback there are two main radiator hoses (upper and lower); the job is similar for both, but the lower hose usually requires working from underneath.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: You’re replacing either the upper and/or lower radiator hose.

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can cause severe burns.
• ⚠️ Support the vehicle with jack stands if you go underneath; never rely on a jack.
• ⚠️ Coolant is toxic to people and pets; catch it in a pan and dispose of it properly.
• ⚠️ Keep hands clear of the cooling fans; they can turn on unexpectedly.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Spill-free coolant funnel kit (specialty)
• Hose clamp pliers (specialty)
• Channel-lock pliers
• Pick tool (small hook pick)
• Flathead screwdriver
• 10mm socket
• 1/4" drive ratchet
• Trim clip removal tool
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upper radiator hose - Qty: 1
• Lower radiator hose - Qty: 1
• Radiator hose clamps - Qty: 2-4
• Engine coolant (Subaru Super Coolant equivalent, pre-mix) - Qty: 1-2 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (ideally 2+ hours).
• Set the HVAC to HOT (temperature dial all the way warm) so coolant can circulate through the heater core during bleeding.
• If you’re replacing the lower hose, raise the front using a floor jack and support it with jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve cooling system pressure (cold engine only)

• Place shop rags around the radiator cap area.
• Slowly loosen the radiator cap by hand to the first “stop” to release any leftover pressure, then remove it fully.

Step 2: Drain enough coolant to get below the hose level

• Position a drain pan (at least 2-gallon) under the radiator drain area.
• If equipped with a radiator drain cock, open it carefully by hand; if access is tight, use a flathead screwdriver gently.
• Drain until the coolant level is below the hose you’re replacing, then close the drain cock snugly (do not overtighten plastic).
• Tip: Draining less saves time bleeding.

Step 3: Gain access (upper vs lower hose)

• Upper hose: Use a flashlight to locate the hose between the radiator top neck and the engine/thermostat housing area.
• Lower hose: Remove the lower splash shield/undercover using a 10mm socket, 1/4" drive ratchet, and trim clip removal tool as needed.

Step 4: Remove the hose clamps

• Most OEM-style clamps are spring clamps (a constant-tension clamp).
• Use hose clamp pliers (specialty) to squeeze the clamp tabs, then slide the clamp back onto the hose away from the fitting.
• If the clamp is a worm-gear style, loosen it using a flathead screwdriver.

Step 5: Break the hose free

• Twist the hose by hand to break the seal. If it’s stuck, use channel-lock pliers gently on the hose (don’t crush the radiator neck).
• If it still won’t release, carefully slide a pick tool (small hook pick) under the hose end to let a little air in, then twist again.
• Pull the hose off and aim it into the drain pan to catch remaining coolant.
• Tip: Don’t pry on the radiator neck.

Step 6: Prep the fittings

• Wipe the radiator neck and engine-side fitting with shop rags.
• Make sure the old hose didn’t leave rubber stuck to the fitting (remove carefully with the pick tool if needed).
• Inspect the radiator neck for cracks and the fittings for heavy corrosion.

Step 7: Install the new hose and position clamps

• Slide the clamps onto the new hose first.
• Push the new hose fully onto each fitting until it bottoms out past the bead (the raised ring on the neck).
• Use hose clamp pliers (specialty) to move spring clamps into place behind the bead.
• If using worm-gear clamps, tighten with a flathead screwdriver until snug and secure (do not strip or crush the neck).

Step 8: Reinstall the underbody cover (if removed)

• Reinstall the splash shield using a 10mm socket, 1/4" drive ratchet, and any clips with the trim clip removal tool.
• Lower the vehicle safely using the floor jack (rated 3-ton minimum).

Step 9: Refill coolant

• Install the spill-free coolant funnel kit (specialty) at the radiator fill neck.
• Pour in engine coolant (Subaru Super Coolant equivalent, pre-mix) until full.
• Fill the overflow reservoir to the FULL line.

Step 10: Bleed air from the system

• Start the engine and let it idle.
• Keep the HVAC set to HOT and fan on low/medium.
• Watch for air bubbles in the funnel; add coolant as the level drops.
• As the engine warms up, carefully squeeze the new hose a few times by hand to help move trapped air.
• When the radiator fan cycles on/off at least once and bubbles slow down, shut the engine off and let it cool.
• Top off the radiator and overflow bottle as needed, then install the radiator cap securely.
• Tip: Cooling completely gives the best final level.

---

✅ After Repair

• Start the engine and check carefully for leaks at both ends of the hose (use a flashlight).
• Test drive 10-15 minutes while watching the temperature gauge.
• After the engine cools fully, recheck the overflow reservoir level and top off to the FULL line.
• Look under the car the next morning for any coolant drips.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $40-$140 (parts only)

You Save: $180-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
