🔧 Explorer - Radiator Hose Replacement

Replacing a radiator hose stops coolant leaks and prevents overheating. On your Explorer, you’ll typically be replacing either the upper radiator hose (top of radiator to engine) or the lower radiator hose (bottom of radiator to engine/water pump area).

Assumption: You’re replacing either the upper or lower hose with factory-style spring clamps (most common).

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine—hot coolant can spray and burn you.
• ⚠️ Support the vehicle with jack stands if you lift it—never rely on a floor jack alone.
• ⚠️ Coolant is toxic—keep it away from kids/pets and clean spills immediately.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel with long neck
• Hose clamp pliers (specialty)
• Slip-joint pliers
• Flathead screwdriver
• 8mm socket
• 10mm socket
• 1/4" ratchet
• 3/8" ratchet
• Torque wrench (5–80 Nm range)
• Plastic trim clip remover
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upper radiator hose - Qty: 1
• Lower radiator hose - Qty: 1
• Radiator hose clamps - Qty: 2 (replace if corroded/weak)
• Engine coolant (Motorcraft Orange OAT equivalent) 50/50 premix - Qty: 2-3 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (best: sit overnight).
• Turn the cabin heat to HOT later during bleeding (this helps move coolant through the heater circuit).
• If you need access from underneath, lift the front using a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Open the hood and locate the plastic engine cover.
• Pull upward firmly to release the rubber grommets, or remove fasteners using a 10mm socket if your cover uses bolts.
• Tip: Pull straight up to avoid cracking it.

Step 2: Relieve cooling system pressure (cold engine only)

• Place a drain pan under the front of the vehicle.
• Slowly loosen the coolant reservoir cap to the first stop to vent any leftover pressure, then remove it fully by hand.

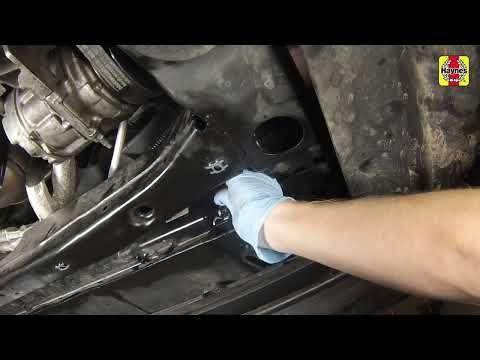

Step 3: Remove the lower splash shield (if needed for access)

• From underneath, remove the shield fasteners using an 8mm socket and a plastic trim clip remover.
• Set the shield and fasteners aside in a small pile so nothing gets lost.

Step 4: Drain enough coolant to get the hose off

• If your radiator has a drain cock, open it carefully and drain into the drain pan. Use slip-joint pliers only if needed—plastic drains can break.
• If there’s no accessible drain cock, you can drain by loosening the lower radiator hose clamp and letting coolant drain as you pull the hose off (controlled mess method).
• Drain until the coolant level is below the hose you’re replacing.

Step 5: Remove the radiator hose clamps

• Locate the hose you’re replacing:
  • Upper hose: top of radiator to the engine thermostat housing area.
  • Lower hose: bottom of radiator to the engine/water pump area (harder to reach).
• Use hose clamp pliers (specialty) to squeeze the spring clamp tabs and slide the clamp back on the hose.
• If you have a screw-type clamp, loosen it with a flathead screwdriver until the hose is free.
• Hose clamp pliers lock the clamp open for you.

Step 6: Break the hose loose and remove it

• Twist the hose by hand to break it free from the fitting.
• If it’s stuck, use slip-joint pliers to gently rotate the hose (do not crush the plastic radiator neck).
• Pull the hose off and aim it into the drain pan as coolant will spill.
• If the hose is bonded on, carefully help it with a flathead screwdriver by sliding the tip under the hose end to release it. Do not gouge the fitting.

Step 7: Inspect and clean the hose fittings

• Wipe the radiator neck and engine-side fitting with shop towels.
• Remove any crusty residue so the new hose seals well.
• Check the radiator neck for cracks (especially if it’s plastic). If cracked, do not continue—parts will need additional replacement.

Step 8: Install the new hose and position clamps

• Slide the clamps onto the new hose first.
• Push the hose fully onto each fitting until it bottoms out (you should feel it “seat”).
• Position the clamp behind the raised bead of the fitting (this bead keeps the hose from slipping off).
• For spring clamps: use hose clamp pliers (specialty) to move the clamp into position.
• For screw clamps: tighten with a flathead screwdriver to Torque to 3–4 Nm (27–35 in-lbs).

Step 9: Reinstall the splash shield (if removed)

• Reinstall the shield using a plastic trim clip remover (to align clips) and an 8mm socket to tighten screws.
• Snug fasteners evenly. Torque to 2–3 Nm (18–27 in-lbs) if using a small torque wrench.

Step 10: Refill coolant

• Use a funnel with long neck and fill the coolant reservoir with Motorcraft Orange OAT equivalent 50/50 to the MAX line.
• Leave the cap off for the initial bleed step.

Step 11: Bleed air from the cooling system (burp the system)

• Start the engine and set the HVAC to HOT with the fan on medium.
• Let the engine idle and watch the coolant level in the reservoir; add coolant as it drops using the funnel.
• Once the engine warms up, squeeze the upper radiator hose gently with a gloved hand to help move trapped air.
• When the radiator fan cycles on and off at least once, install the reservoir cap by hand.
• Tip: Keep your face away from the fill opening.

Step 12: Check for leaks

• With the engine running, inspect both ends of the new hose with a flashlight.
• Look for drips, wetness at the clamp, or a misting spray.
• If leaking: shut off engine, let it cool, then reposition/tighten the clamp.

---

✅ After Repair

• After a full cool-down, recheck the coolant level and top off to the MAX line using the funnel.
• Take a 10–15 minute test drive, then recheck for leaks and recheck level again after it cools.
• Dispose of old coolant properly (sealed container; take to a recycling/collection center).
• If the temperature gauge rises, heat stops working, or you hear gurgling, shut it down and re-bleed—air is still trapped.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
