🔧 Outback - Radiator Hose Replacement

This job replaces a leaking, swollen, or cracked radiator hose so your cooling system can hold pressure and circulate coolant correctly. The steps below cover both the upper and lower radiator hoses on your Outback.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: You’re replacing the upper and/or lower radiator hose (steps cover both).

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; coolant can spray and burn you.
• ⚠️ Support the vehicle with jack stands before going underneath (don’t rely on a jack).
• ⚠️ Coolant is toxic to people and pets—catch every drop and clean spills.
• ⚠️ Keep fingers clear of fans and belts when the engine is running.
• 🔋 Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• Spill-free coolant funnel kit (specialty)
• Hose clamp pliers (specialty)
• Channel-lock pliers
• Pick tool
• Flathead screwdriver
• 10mm socket
• 3/8" ratchet
• Torque wrench (10–80 ft-lbs range)
• Trim clip removal tool
• Shop rags

---

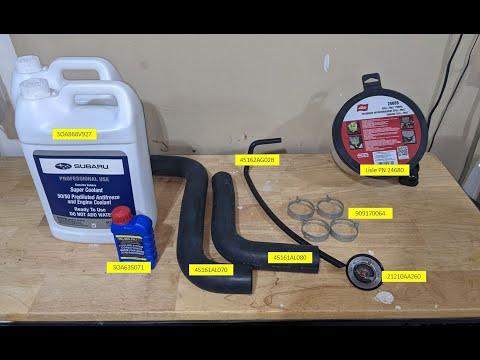

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upper radiator hose - Qty: 1
• Lower radiator hose - Qty: 1
• Radiator hose clamps - Qty: 2-4
• Engine coolant (Subaru Super Coolant compatible, premixed 50/50) - Qty: 1-2 gallons

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• ❄️ Let the engine cool completely (upper radiator hose should feel cool to the touch).
• 🧼 Set a drain pan under the radiator area and have rags ready.
• 🧰 Know your tools: hose clamp pliers are pliers that lock and hold spring clamps open; a spill-free funnel seals at the radiator fill neck to help burp air safely.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve any leftover pressure (engine cold)

• Use a shop rag to cover the radiator cap.
• Slowly turn the cap to the first stop to release any pressure, then remove it fully.

Step 2: Raise the front (for lower hose access)

• Place wheel chocks behind the rear wheels.
• Lift the front with a floor jack (rated 3-ton minimum) at the front center jack point.
• Set the vehicle onto jack stands (rated 3-ton minimum).

Step 3: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool to pop out plastic clips.
• Use a 10mm socket with a 3/8" ratchet to remove any bolts.
• Set the shield and fasteners aside in a small pile.

Step 4: Drain enough coolant to drop the hose level

• Position your drain pan (at least 2-gallon) under the radiator drain area.
• Open the radiator drain cock carefully (usually a small plastic drain). Use a flathead screwdriver only if needed.
• Drain until the coolant level is below the hose you’re replacing, then close the drain.

Step 5: Remove the upper radiator hose (top hose)

• Use hose clamp pliers (specialty) to compress the spring clamp and slide it back on the hose.
• Twist the hose by hand to break it free. If it’s stuck, gently work around the edge with a pick tool (do not gouge the radiator neck).
• Pull the hose off the radiator, then off the engine-side connection.
• Use shop rags to catch remaining coolant.

Step 6: Remove the lower radiator hose (bottom hose)

• From underneath, use hose clamp pliers (specialty) to move the clamps back.
• Use channel-lock pliers carefully to twist the hose if it’s stuck.
• Pull the hose off the radiator outlet and the engine-side connection, aiming the hose end into the drain pan (at least 2-gallon).

Step 7: Install the new hose(s)

• Compare old and new hoses on the ground to confirm the same shape and length.
• Slide the clamps onto the new hose first.
• Push the hose fully onto each fitting until it bottoms out (it should cover the full bead/ridge on the neck).
• Position spring clamps behind the bead/ridge using hose clamp pliers (specialty).
• Tip: Clamp should sit square, not crooked.

Step 8: Reinstall the splash shield

• Reinstall bolts using a 10mm socket and 3/8" ratchet.
• Snug small shield fasteners with a torque wrench (10–80 ft-lbs range) to Torque to 7 Nm (62 in-lbs) if you want a safe spec for small 10mm undertray bolts.
• Reinstall clips using a trim clip removal tool (press centers to lock).

Step 9: Refill coolant and burp air

• Insert the spill-free coolant funnel kit (specialty) onto the radiator fill neck.
• Slowly add engine coolant (Subaru Super Coolant compatible, premixed 50/50) using a funnel until the funnel level stabilizes.
• Fill the overflow reservoir to the “FULL” line (use a funnel).
• Start the engine and set the HVAC to hot (max temp) with the fan on low.
• Let the engine idle and watch the funnel level; add coolant as the level drops.
• When the radiator fans cycle on/off and bubbles mostly stop, gently raise RPM to ~2,000 for 10–15 seconds, then let it idle again.
• Shut the engine off, let it cool, then remove the funnel and install the radiator cap.

Step 10: Lower the vehicle

• Lift slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), then lower fully.

---

✅ After Repair

• 🔍 With the engine running, check both hose ends for seepage or dripping.
• 🌡️ Watch the temperature gauge on the first drive; stop if it rises abnormally.
• 🧊 After a full cool-down (later that day or next morning), recheck the overflow reservoir and top off to “FULL” if needed.
• 🧼 Dispose of old coolant properly (sealed container; approved recycling center).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
