🔧 Transit Connect - Radiator Hose Replacement

Replacing a radiator hose stops coolant leaks and prevents overheating. You’ll remove the old hose, install the new one with proper clamps, then refill and bleed the cooling system so it doesn’t trap air.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant reservoir when hot; scalding risk.
• ⚠️ Support the vehicle with jack stands if you lift it; never rely on a jack.
• ⚠️ Keep coolant off paint and away from kids/pets; it’s toxic.
• ⚠️ If the cooling fan turns on automatically, keep hands clear (it can start unexpectedly).
• ⚠️ Battery disconnect is not required for this job, but keep tools away from the radiator fan wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Flat-blade screwdriver
• Hose clamp pliers (specialty)
• Pick tool (small hook) (specialty)
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (5–25 Nm range)
• Trim clip removal tool
• Funnel
• Clean shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

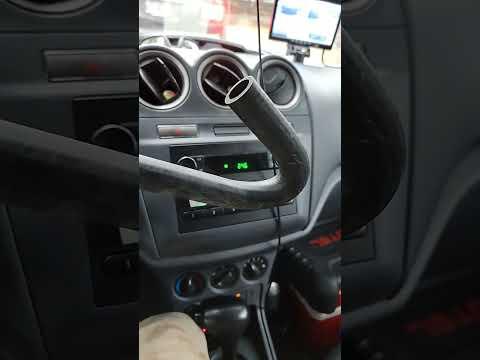

• Radiator hose (upper) - Qty: 1
• Radiator hose (lower) - Qty: 1
• Hose clamps - Qty: 2-4
• Ford-approved OAT engine coolant (orange), concentrate or premix - Qty: 2-3 gallons
• Distilled water - Qty: 1-2 gallons
• Replacement splash shield fasteners/clips - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (at least 2 hours).
• Place wheel chocks behind the rear wheels.
• Set a large drain pan under the front of the vehicle.
• Assumption: You’re replacing either the upper or lower radiator hose; steps show both paths.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Lift the front with a floor jack and support it on jack stands.
• Use a trim clip removal tool to remove plastic clips.
• Use an 8mm socket or 10mm socket with a 1/4" drive ratchet to remove any bolts.
• Set the shield and hardware aside in a safe spot.

Step 2: Relieve pressure safely

• Place a rag over the coolant reservoir cap.
• Slowly loosen the cap by hand to release any leftover pressure, then remove it.

Step 3: Drain enough coolant to get below the hose level

• Position the drain pan under the radiator area.
• If your radiator has a drain valve, open it carefully using a flat-blade screwdriver (turn slowly).
• If there is no drain valve or access is tight, you can drain by loosening the lower radiator hose clamp (next step) and letting coolant flow into the pan.
• Drain until the coolant level is below the hose you’re replacing.

Step 4: Remove the hose clamps

• Locate the hose and identify the clamp type:
  • Spring clamp: squeeze it with hose clamp pliers (specialty) and slide it back on the hose.
  • Worm-gear clamp: loosen it with a flat-blade screwdriver.
• Do this on both ends of the hose.

Step 5: Remove the radiator hose

• Twist the hose by hand to break it loose from the fitting.
• If it’s stuck, use a pick tool (small hook) (specialty) to gently lift the edge of the hose off the fitting. (A pick tool is a small hooked tool that helps separate stuck rubber without prying hard.)
• Pull the hose off and aim any remaining coolant into the drain pan.
• Tip: Do not pry on plastic fittings.

Step 6: Prep the fittings and compare parts

• Wipe the radiator/engine fittings clean using clean shop rags.
• Inspect the fitting “bead” (the raised ridge) for cracks or heavy corrosion using a flashlight.
• Compare the new hose to the old hose (same bends, same length, same end diameters).

Step 7: Install the new hose and clamps

• Slide the clamps onto the new hose before installing it.
• Push the hose fully onto each fitting until it bottoms out (you should feel it seat).
• Position each clamp behind the raised ridge on the fitting.
• If using worm-gear clamps, tighten with a flat-blade screwdriver until snug (do not crush the hose).

Step 8: Reinstall splash shield (if removed)

• Reinstall the shield using the 8mm socket or 10mm socket with a 1/4" drive ratchet.
• If any bolts were removed, snug them evenly. Torque to 8 Nm (71 in-lbs) for small splash-shield fasteners.
• Reinstall clips with the trim clip removal tool (or by hand if they press in).

Step 9: Refill coolant

• Lower the vehicle off the jack stands using the floor jack.
• Use a funnel to refill the reservoir with Ford-approved OAT coolant (orange).
• If using concentrate, mix with distilled water to a 50/50 blend before filling.

Step 10: Bleed air from the cooling system (basic method)

• Start the engine and set the heater to maximum heat and the fan to medium.
• Let the engine idle and watch the temperature gauge.
• As the thermostat opens, the coolant level may drop—add coolant as needed using the funnel.
• Once warm air blows steadily from the vents and the level stabilizes, install the reservoir cap hand-tight.
• Tip: Stop if it starts to overheat.

Step 11: Check for leaks

• With the engine running, inspect both ends of the replaced hose using a flashlight.
• Look for seepage at the clamp area and under the vehicle.
• Shut the engine off and re-check clamp positioning if you see any wetness.

---

✅ After Repair

• After the engine fully cools, recheck coolant level and top off to the “MAX” line.
• Drive 10–15 minutes, then inspect again for leaks and any coolant smell.
• Verify the heater blows hot and the temperature stays normal.
• Dispose of old coolant properly (sealed container; take to a recycling center).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $50-$180 (parts only)

You Save: $200-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
