🔧 Explorer - Timing Belt Replacement (Correction: Timing Chain System)

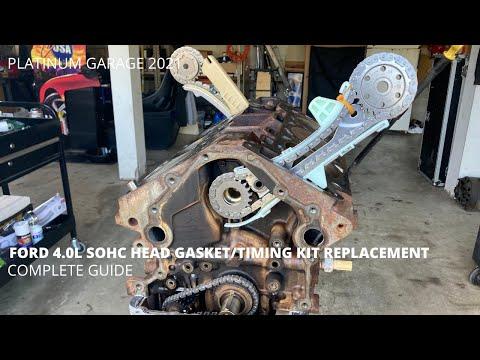

Your Explorer’s 4.0L SOHC V6 does not use a timing belt—it uses a timing chain system (multiple chains, guides, and hydraulic tensioners). “Replacing the timing belt” on this engine usually means replacing the timing chains/guides/tensioners, which is a big job and can require engine removal depending on what you’re replacing.

Difficulty Level: Advanced | Estimated Time: 12-20 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before starting.
• ⚠️ Disconnect the negative battery cable to prevent accidental cranking.
• ⚠️ Support the vehicle with jack stands on solid, level ground.
• ⚠️ If you must remove the A/C compressor from brackets, do not open refrigerant lines unless refrigerant is professionally recovered.
• ⚠️ An engine hoist is required if doing a full timing-chain job; never work under a suspended engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Metric socket set 8mm-21mm
• SAE socket set 5/16"-7/8"
• 1/4" drive ratchet
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench 10-150 ft-lbs
• Torque angle gauge (specialty)
• Combination wrench set 8mm-21mm
• Screwdriver set
• Pry bar set
• Pliers set
• Fuel line disconnect tool set (specialty)
• Harmonic balancer puller kit (specialty)
• 3-jaw puller (specialty)
• Engine support bar (specialty)
• Engine hoist (2-ton minimum) (specialty)
• Engine stand (optional) (specialty)
• Drain pan (at least 10 qt)
• Funnel
• Gasket scraper
• Shop rags
• Paint marker
• Ford 4.0L SOHC cam/crank timing tool kit (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (4.0L SOHC) - Qty: 1
• Hydraulic timing chain tensioners - Qty: 2
• Timing chain guides/cassettes - Qty: 1 set
• Front cover gasket set - Qty: 1
• Valve cover gasket set - Qty: 1
• Crankshaft front seal - Qty: 1
• RTV silicone sealant (sensor-safe) - Qty: 1
• Engine oil (5W-30) - Qty: 6 quarts
• Oil filter - Qty: 1
• Coolant (Motorcraft Orange or equivalent for your Explorer) - Qty: 3-4 gallons premix (or equivalent concentrate + distilled water)
• Thermostat and gasket (recommended while open) - Qty: 1
• Serpentine belt (recommended if worn) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Plan your approach: many full timing-chain jobs on the 4.0L SOHC are done with engine removal because one chain cassette is at the rear of the engine.
• Tip: Take photos every step for reassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Answer 2 quick questions (so I give the right procedure)

• Are you replacing the full timing chain system (all chains/guides/tensioners including the rear cassette), or only the front timing components?
• What symptom are you fixing: cold-start rattle, check engine light/cam timing codes, or preventative maintenance?

Step 2: Do not start disassembly until scope is confirmed

• This engine has multiple chains and timing references; the correct steps (and whether the engine must come out) depend on the scope.
• The Ford 4.0L SOHC cam/crank timing tool kit (specialty) is required to set timing accurately.

---

✅ After Repair

• Refill coolant, change oil and filter, and check for leaks on first start.
• Verify there is no timing chain rattle and no warning lights.
• Recheck coolant level after the first full heat cycle.

---

💰 DIY vs Shop Cost

Shop Cost: $2,000-$4,500 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $1,650-$3,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-18 hours.

---
