🔧 Corolla - Timing Chain (No Timing Belt) Service

Your Corolla uses a timing chain, not a timing belt. Toyota does not list the timing chain as a regular maintenance item, and it usually lasts the life of the engine unless there is noise, low oil maintenance, or internal damage.

If the chain, guides, or tensioner ever do need replacement, it is a major engine job. For a first-time DIYer, this is generally not recommended without experience, tools, and a manual. Below is an overview so you understand the process and why a shop is usually best.

Difficulty Level: Advanced | Estimated Time: 8-12 hours (professional), longer for DIY

---

⚠️ Safety & Precautions

• ⚠️ This job involves working very deep in the engine, with the engine mount removed and the engine supported from below.
• ⚠️ Incorrect timing chain installation can cause severe engine damage (bent valves, no-start).
• ⚠️ Always disconnect the negative battery terminal before starting.
• ⚠️ Allow the engine to cool completely; you will open the cooling system and engine.
• ⚠️ Use proper support under the engine and jack stands under the car; never rely on the jack alone.
• ⚠️ You will need a way to hold the crankshaft pulley while loosening/tightening its bolt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Metric socket set (8mm–19mm)
• 🛠️ Metric combination wrench set (8mm–19mm)
• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive ratchet
• 🛠️ 1/2" drive breaker bar
• 🛠️ Torque wrench (3/8" drive, 5–80 Nm range)
• 🛠️ Torque wrench (1/2" drive, 40–200 Nm range)
• 🛠️ Torx bit set
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Phillips screwdriver (medium)
• 🛠️ Pry bar (small)
• 🛠️ Needle-nose pliers
• 🛠️ Plastic trim tool set
• 🛠️ Crankshaft pulley holding tool (specialty)
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Engine support bar or second jack with wood block (specialty)
• 🛠️ Oil drain pan (8+ liters)
• 🛠️ Coolant drain pan (8+ liters)
• 🛠️ Gasket scraper or plastic razor scraper
• 🛠️ Brake cleaner spray
• 🛠️ Shop rags
• 🛠️ Fender cover
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses
• 🛠️ Permanent marker or paint pen
• 🛠️ Small inspection mirror
• 🛠️ Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Timing chain kit (chain, guides, tensioner) - Qty: 1
• 🔩 Timing chain cover gasket set - Qty: 1
• 🔩 Valve cover gasket set - Qty: 1
• 🔩 Crankshaft pulley bolt (single-use) - Qty: 1
• 🔩 Camshaft sprocket bolts (if specified as single-use) - Qty: 4
• 🔩 Engine oil (0W-20 synthetic) - Qty: 4.5 quarts
• 🔩 Oil filter - Qty: 1
• 🔩 Engine coolant (Toyota pink or equivalent) - Qty: 1-2 gallons premixed
• 🔩 RTV sealant (oil-resistant, Toyota spec) - Qty: 1 tube
• 🔩 Accessory drive belt - Qty: 1
• 🔩 New engine mount bolts (if specified as single-use) - Qty: 4-6
• 🔩 Plastic clips for splash shields (assortment) - Qty: 1 pack

---

📋 Before You Begin

• Park the Corolla on level ground, set the parking brake, and put the transmission in P.
• Let the engine cool completely for at least 1–2 hours.
• Disconnect the negative battery terminal with a 10mm socket and move the cable aside.
• Raise the front of the car with a floor jack and support it securely on jack stands under the pinch welds or proper frame points.
• Place an engine support bar over the engine bay, or position a second floor jack with a wood block under the oil pan to support the engine when you remove the right engine mount.
• Take photos of each area before removing parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove engine covers and intake components

• Remove the plastic engine cover by pulling up gently; if fasteners are present, use a 10mm socket.
• Disconnect the air intake hose clamps with a flathead screwdriver and unplug any sensors (MAF) by pressing the tabs.
• Remove the airbox top and intake duct using a 10mm socket on mounting bolts.
• Label electrical connectors with tape for easier reassembly.

Step 2: Drain engine oil and coolant

• Place an oil drain pan under the oil pan.
• Use a 14mm socket to remove the oil drain plug and drain the oil completely, then reinstall the plug finger-tight for now.
• Place a coolant drain pan under the radiator drain or lower hose.
• Open the radiator drain (if equipped) or loosen the lower radiator hose clamp with pliers and remove the hose to drain coolant.

Step 3: Remove accessory drive belt and right engine mount

• From the passenger side, locate the belt tensioner and use a 14mm socket and breaker bar to rotate the tensioner and slip the belt off. Remove the belt.
• Support the engine from below with a floor jack and wood block under the oil pan, just enough to take weight.
• Use a 14mm socket to remove the bolts and nuts for the right-side engine mount and bracket.
• Set the mount aside and make sure the engine is stable on the jack/support bar.

Step 4: Remove valve cover

• Disconnect ignition coil connectors and remove ignition coils using a 10mm socket.
• Remove any wiring brackets attached to the valve cover with a 10mm socket or plastic trim tool.
• Remove the valve cover bolts with a 10mm socket.
• Gently pry up the valve cover using a plastic trim tool or small pry bar, avoiding metal-on-metal contact.
• Torque spec on reassembly (valve cover bolts): 8–9 Nm (71–80 in-lbs).

Step 5: Remove crankshaft pulley and timing cover

• From below, remove the lower splash shield using a 10mm socket and plastic trim tool for clips.
• Install the crankshaft pulley holding tool on the crank pulley.
• Use a 1/2" drive breaker bar and 19mm socket to loosen and remove the crankshaft pulley bolt.
• Remove the crankshaft pulley (you may need a gentle pry with a small pry bar).
• Remove all timing cover bolts with a 10mm socket and carefully pry the cover away using a plastic trim tool.
• Torque spec on reassembly (timing cover bolts): 8–10 Nm (71–89 in-lbs).

Step 6: Set engine to Top Dead Center (TDC)

• Install a 19mm socket on the crankshaft and rotate the engine clockwise with a ratchet until the timing marks align.
• On the 2ZR engine, align the crankshaft sprocket mark with its reference mark on the block, and camshaft sprocket marks with their reference on the head.
• Use a paint pen to mark the current positions of the chain relative to the cam and crank sprockets.
• Do not rotate the engine once marks are set.

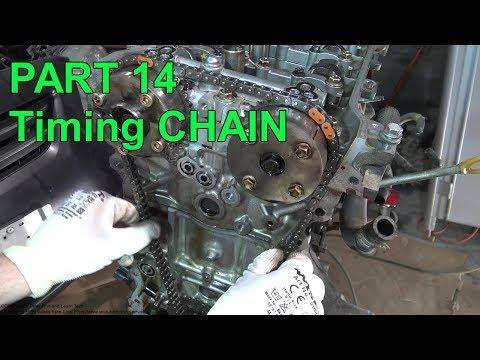

Step 7: Remove timing chain tensioner, guides, and chain

• Relieve chain tension by removing the chain tensioner bolts with a 10mm socket, then remove the tensioner.
• Remove the chain guides (usually 10mm bolts) using a 10mm socket.
• Carefully lift the timing chain off the camshaft sprockets and crank sprocket.
• Keep track of guide orientation and bolt locations.

Step 8: Install new timing chain, guides, and tensioner

• Compare the new chain and guides with the old ones to ensure they match.
• Install the new chain on the crank sprocket first, then onto the camshaft sprockets, aligning any colored links with timing marks per the chain kit instructions.
• Install new guides using a 10mm socket and tighten bolts to 9–10 Nm (80–89 in-lbs).
• Install the new tensioner with a 10mm socket, torque bolts to 9–10 Nm (80–89 in-lbs), then release the locking pin (if equipped) to apply tension.
• Rotate the crankshaft two full turns clockwise with a 19mm socket and verify timing marks realign correctly.

Step 9: Reinstall timing cover, crank pulley, and valve cover

• Clean old RTV and gasket material from the timing cover and engine block with a gasket scraper and brake cleaner.
• Apply fresh RTV sealant at specified joints (corners where block, head, and cover meet) per the service pattern.
• Install the timing cover and hand-thread all bolts, then tighten with a 10mm socket to 8–10 Nm (71–89 in-lbs) in a crisscross pattern.
• Install the crankshaft pulley, then use the crank holding tool and a 1/2" drive torque wrench with 19mm socket to tighten the new crank bolt to 128 Nm (94 ft-lbs) plus 60° of additional turn.
• Install the new valve cover gasket, then reinstall the valve cover and torque bolts with a 10mm socket and 3/8" torque wrench to 8–9 Nm (71–80 in-lbs).
• Reinstall ignition coils and torque their bolts to 8–9 Nm (71–80 in-lbs) with a 10mm socket.

Step 10: Reinstall engine mount, belt, and remaining components

• Reinstall the right engine mount and bracket using a 14mm socket.
• Tighten engine mount bolts to approximately 59–64 Nm (44–47 ft-lbs) with a torque wrench (check exact spec if possible).
• Install a new accessory drive belt, routing it correctly, then use a 14mm socket on the tensioner to slip the belt on.
• Reinstall the lower splash shield with a 10mm socket and plastic trim tool.
• Reinstall intake ducting, airbox, and engine cover using a 10mm socket and flathead screwdriver for clamps.

Step 11: Refill fluids and reconnect battery

• Install a new oil filter using a oil filter wrench if needed (if you have one; otherwise be careful by hand), then torque the drain plug with a 14mm socket to 39 Nm (29 ft-lbs).
• Fill the engine with fresh 0W-20 oil.
• Reconnect the lower radiator hose and tighten clamp with pliers, or close the radiator drain.
• Fill the cooling system with the correct coolant using a funnel.
• Reconnect the negative battery terminal with a 10mm socket.

---

✅ After Repair

• Lower the Corolla from the jack stands carefully using the floor jack.
• Start the engine and let it idle; listen for abnormal noises such as rattling from the timing area.
• Check for oil and coolant leaks around the timing cover, valve cover, and hose connections.
• Allow the engine to reach operating temperature, then top off coolant as needed.
• Take a short test drive, gently at first, and recheck fluid levels and for leaks afterward.
• If you hear timing noise or misfire, shut it off immediately.

---

💰 DIY vs Shop Cost

Shop Cost: $1200–$2000 (parts + labor)

DIY Cost: $300–$600 (parts + fluids, not including tools)

You Save: $900–$1400 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 8–12 hours.

---
