🔧 Timing Drive - Timing Belt Replacement

Your Sierra 1500 6.2L does not use a timing belt. It uses a timing chain that is internal to the engine and not a routine replacement item. If you’re hearing chain rattle, have cam/crank correlation faults, or suspect timing wear, the repair is a major engine service with front cover removal and precise timing alignment.

Difficulty Level: Advanced | Estimated Time: 10-16 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting.
• Work on a cool engine only.
• Support the truck securely with jack stands if front-end access is needed.
• Engine timing work can cause severe engine damage if cam/crank timing is incorrect.
• A scan tool may be needed to clear codes and verify cam/crank correlation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set 8mm-24mm
• Metric wrench set
• Torque wrench
• Breaker bar
• Harmonic balancer puller (specialty)
• Camshaft holding tool (specialty)
• Crankshaft holding tool (specialty)
• Torque angle gauge
• Floor jack (rated 3-ton minimum)
• Jack stands
• Drain pan
• Safety glasses
• Nitrile gloves
• Plastic scraper
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain set - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Water pump gasket - Qty: 1
• Serpentine belt - Qty: 1
• Engine coolant - Qty: 1-2 gallons
• Engine oil - Qty: As needed
• Oil filter - Qty: 1
• RTV sealant - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Drain engine coolant before removing the front cover.
• Drain engine oil if the pan must be lowered for access.
• Keep all parts in order. Timing components must go back exactly as removed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect and drain

• Use a 10mm socket to disconnect the negative battery cable.
• Use a drain pan to drain the engine coolant.
• If required for access, drain the engine oil as well.

Step 2: Remove front accessories

• Use a metric socket set to remove the belt drive components, fan shroud pieces, and accessories blocking the timing cover.
• Remove the serpentine belt with a breaker bar on the tensioner.
• Keep bolts grouped by part.

Step 3: Remove the harmonic balancer

• Use a harmonic balancer puller (specialty) to remove the crank pulley.
• Do not pry on the balancer. That can damage the seal and crank snout.

Step 4: Remove the timing cover

• Use a metric socket set to remove the timing cover bolts.
• Carefully break the seal and remove the cover.
• Use a plastic scraper to clean old gasket material from the cover and block.

Step 5: Set engine timing

• Rotate the engine by hand with a breaker bar until the timing marks align.
• Use a camshaft holding tool (specialty) and crankshaft holding tool (specialty) to keep timing fixed.
• Torque to factory specification for all holding tools and timing fasteners per service data.

Step 6: Replace timing components

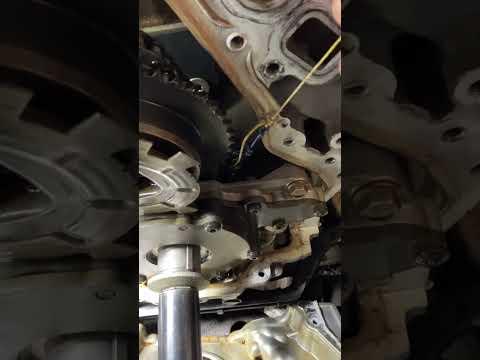

• Use a metric socket set to remove the chain guides, tensioner, and chain.
• Install the new timing chain set in the exact timing position.
• Torque to factory specification for guide, tensioner, and sprocket fasteners.

Step 7: Reassemble front cover

• Install the new front crankshaft seal in the timing cover.
• Apply RTV sealant at the specified joint areas.
• Install the timing cover with a torque wrench.
• Torque to factory specification for timing cover bolts in sequence.

Step 8: Reinstall balancer and accessories

• Use a torque wrench to install the harmonic balancer to factory specification.
• Reinstall all accessories, belt, shrouds, and brackets with a metric socket set.
• Torque to factory specification for all removed fasteners.

Step 9: Refill and verify

• Refill engine coolant and engine oil.
• Reconnect the battery with a 10mm socket.
• Start the engine and check for leaks, noises, and warning lights.

---

✅ After Repair

• Clear any stored diagnostic trouble codes with a scan tool.
• Verify normal idle and no chain noise on cold start.
• Check coolant and oil levels again after a road test.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,500 (parts + labor)

DIY Cost: $400-$900 (parts only)

You Save: $1,400-$2,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-16 hours.

---
