🔧 Timing Belt - Not Applicable

Your Rogue does not use a timing belt. It uses a timing chain, which is designed to last the life of the engine under normal conditions. If you’re chasing a rattle, poor running, or a cam/crank timing code, the repair is a timing chain diagnosis or timing chain replacement, not a belt job.

Difficulty Level: Advanced | Estimated Time: 8-14 hours

---

⚠️ Safety & Precautions

• Timing chain service requires major engine disassembly.
• Disconnect the negative battery cable before starting.
• Support the engine properly if mounts must be removed.
• Keep track of chain marks, guides, and tensioner orientation.
• Do not rotate the engine without confirming timing alignment.

---

🔧 Required Tools

You’ll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• Torque wrench
• Breaker bar
• Engine support bar (specialty)
• Harmonic balancer puller (specialty)
• Timing chain alignment tools (specialty)
• Drain pan

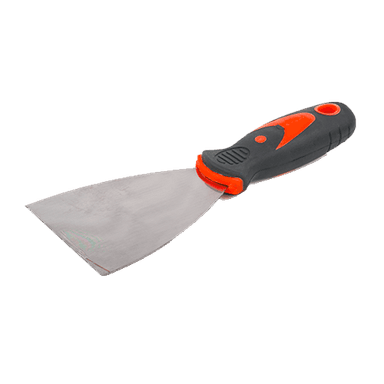

• Gasket scraper
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Front cover gasket set - Qty: 1
• Valve cover gasket - Qty: 1
• Engine oil - Qty: 5 quarts
• Oil filter - Qty: 1
• Coolant - Qty: as needed

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Drain engine oil and coolant if front cover removal is required.
• Have factory timing marks and torque specs ready before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Prepare the engine

• Use a socket set to remove the engine covers and accessory drive components needed for access.
• Drain engine oil and coolant if required for front cover removal.
• Label every connector and bolt.

Step 2: Set engine to top dead center

• Use a breaker bar on the crankshaft bolt to rotate the engine to top dead center on cylinder 1.
• Confirm the crank and cam timing marks line up before removal.

Step 3: Remove timing cover components

• Use the socket set and wrench set to remove the front cover fasteners.
• Remove the harmonic balancer with a harmonic balancer puller.
• Carefully separate the timing cover without damaging the sealing surfaces.

Step 4: Remove chain and related parts

• Use the socket set to remove the tensioner, guides, and chain components.
• Keep all parts in order so you can compare old and new pieces.
• Do not let the crankshaft move.

Step 5: Install the new chain kit

• Install the new guides and tensioner with the socket set.
• Fit the timing chain using the alignment marks on the chain and sprockets.
• Use the timing chain alignment tools to verify cam and crank positions.
• Tighten fasteners to the manufacturer torque specs from the service manual.

Step 6: Reassemble the engine

• Install new gaskets and reseal the front cover using the torque wrench.
• Reinstall the harmonic balancer and accessory components.
• Refill engine oil and coolant.

Step 7: Verify repair

• Reconnect the battery.
• Start the engine and listen for abnormal chain noise.
• Check for oil or coolant leaks.
• Scan for diagnostic trouble codes and clear them if repair is successful.

---

✅ After Repair

• Let the engine idle and reach operating temperature.
• Recheck fluid levels.
• Verify there are no leaks at the front cover.
• Road test and confirm no rattles, misfires, or warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,500 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $1,450-$2,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-14 hours.

---
