🔧 Timing System - Correction

Your Golf does not use a timing belt on this engine. It uses a timing chain, which is a different and much more involved repair. If you were trying to replace the serpentine belt, that is a separate job.

Difficulty Level: Advanced | Estimated Time: 8-14 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting.
• Support the engine from below before removing engine-side mounts.
• Do not rotate the engine unless the crankshaft and camshafts are properly timed.
• Use correct locking tools for crankshaft and camshaft timing.
• This repair is not beginner-friendly; incorrect timing can cause engine damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Torx bit set

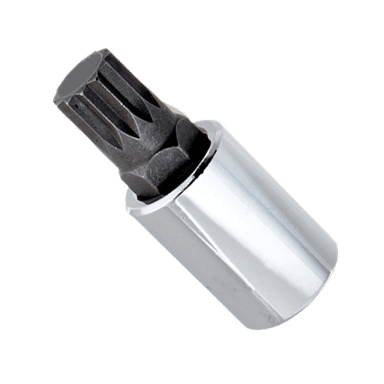

• Triple-square bit set
• Torque wrench
• Breaker bar
• Floor jack (rated 3-ton minimum)
• Jack stands
• Engine support bar
• Timing chain locking kit (specialty)
• Drain pan
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Valve cover gasket - Qty: 1
• Front crankshaft seal - Qty: 1
• Engine oil - Qty: 1 oil change amount
• Oil filter - Qty: 1
• Coolant - Qty: 1 refill amount

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Raise the front of the vehicle and support it with jack stands.
• Support the engine before removing the right-side mount.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the timing cover area

• Use a metric socket set and Torx bit set to remove the upper engine covers and any components blocking access.
• Remove the intake components as needed for access.

Step 2: Support the engine and remove the mount

• Use an engine support bar to hold the engine safely.
• Use a metric socket set and triple-square bit set to remove the right-side engine mount.

Step 3: Set engine timing

• Rotate the engine by hand with a breaker bar until the timing marks are at top dead center.
• Install the timing chain locking kit (specialty) to lock the crankshaft and camshafts in position.
• Do not skip this step.

Step 4: Remove the timing cover

• Use the Torx bit set to remove the timing cover fasteners.
• Carefully remove the cover without damaging the sealing surfaces.

Step 5: Remove the chain, guides, and tensioner

• Use the metric socket set to remove the tensioner and guide hardware.
• Remove the timing chain and guides from the engine.

Step 6: Install new chain components

• Install the new guides, tensioner, and chain from the timing chain kit.
• Make sure timing marks align exactly before releasing the tensioner.

Step 7: Reassemble and torque fasteners

• Reinstall the timing cover, engine mount, and removed components.
• Use a torque wrench and tighten all fasteners to factory specification.
• Torque to factory specification for each fastener.

Step 8: Refill fluids and verify operation

• Refill engine oil and coolant as needed.
• Reconnect the battery.
• Start the engine and listen for abnormal timing noise.

---

✅ After Repair

• Check for oil or coolant leaks.
• Verify smooth idle and normal engine operation.
• Scan for diagnostic codes and clear any stored faults.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,500 (parts + labor)

DIY Cost: $300-$900 (parts only)

You Save: $1,500-$2,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-14 hours.

---
