🔧 Sportage - Timing Chain Replacement

Your Sportage’s 2.4L engine uses a timing chain (not a timing belt). Replacing the chain is a major job because the front engine cover must come off, the engine must be supported, and the cam/crank timing marks must be set perfectly to avoid serious engine damage.

Assumption: Stock 2.4L Theta II setup with a timing chain and hydraulic tensioner.

Difficulty Level: Advanced | Estimated Time: 8-12 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable to prevent accidental cranking.
• ⚠️ Support the engine before removing the right-side engine mount (use an engine support bar or a jack with a wood block).
• ⚠️ Never rotate the crank/cams with the chain removed; valves can contact pistons.
• ⚠️ Work on a cold engine; coolant and oil can burn you when hot.
• ⚠️ Keep bolts organized by location/length; the front cover uses multiple lengths.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-22mm
• Metric wrench set 8mm-22mm
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench 10-200 Nm range
• Torque angle gauge (specialty)
• Harmonic balancer puller kit (specialty)
• Crank pulley holding tool (specialty)
• Engine support bar (specialty)
• Trim clip remover
• Flat blade screwdriver
• Pry bar
• Drain pan (at least 10-quart)
• Funnel
• Plastic razor blade scraper
• Brake cleaner spray
• Shop rags
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain - Qty: 1
• Timing chain guides - Qty: 1 set
• Timing chain tensioner (hydraulic) - Qty: 1
• Crankshaft front oil seal - Qty: 1
• Front cover RTV sealant (engine timing cover sealant) - Qty: 1
• Valve cover gasket - Qty: 1
• Accessory drive belt - Qty: 1
• Engine oil (5W-20 full synthetic) - Qty: 6 quarts
• Oil filter - Qty: 1
• Engine coolant (compatible with Kia/Hyundai Asian coolant) - Qty: 2-3 gallons
• Timing cover bolt seals/grommets (if equipped) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Raise the front and support it securely on jack stands (never rely on the floor jack).
• Remove the lower splash shield to access the crank pulley and front cover area.
• Plan a bolt layout: poke bolts into labeled cardboard holes by location/length.
• Have your seal surfaces perfectly clean before applying RTV (RTV is liquid gasket).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power and drain fluids

• Use a 10mm socket to remove the negative battery terminal and move it aside.
• Place a drain pan (at least 10-quart) under the radiator drain and drain coolant.
• Drain engine oil using a metric socket set 8mm-22mm for the drain plug.

Step 2: Remove intake ducting and upper access parts

• Use a flat blade screwdriver and metric socket set 8mm-22mm to loosen clamps and remove the intake tube/air ducting.
• Remove any upper covers/brackets blocking the valve cover using a metric socket set 8mm-22mm.

Step 3: Remove the valve cover

• Unclip harnesses using a trim clip remover so nothing is stretched.
• Remove valve cover fasteners with a metric socket set 8mm-22mm.
• Lift the valve cover off carefully; use a plastic razor blade scraper to remove old gasket material.
• Tip: Don’t gouge aluminum sealing surfaces.

Step 4: Remove right front wheel and splash shields

• Loosen lug nuts with a 1/2" drive breaker bar, then raise and support the vehicle with jack stands (rated 3-ton minimum).
• Remove the right front wheel using a metric socket set 8mm-22mm.
• Remove inner fender/splash panels using a trim clip remover and metric socket set 8mm-22mm.

Step 5: Support the engine and remove the right engine mount

• Install an engine support bar (specialty) over the engine bay and apply light support tension.
• Remove the right engine mount and bracket fasteners using a metric socket set 8mm-22mm and metric wrench set 8mm-22mm.
• Torque to Kia service manual specification during reassembly (mount/bracket fasteners are critical).

Step 6: Remove the accessory drive belt and crank pulley

• Relieve belt tension and remove the belt using a metric wrench set 8mm-22mm.
• Hold the crank pulley with a crank pulley holding tool (specialty).
• Remove the crank bolt using a 1/2" drive breaker bar.
• Remove the crank pulley using a harmonic balancer puller kit (specialty).
• Torque to Kia service manual specification for the crank bolt on reassembly (often torque + angle).

Step 7: Remove the front timing cover

• Remove front cover bolts using a metric socket set 8mm-22mm and keep track of bolt lengths.
• Gently separate the cover using a pry bar only at designated pry points.
• Clean both mating surfaces with plastic razor blade scraper, brake cleaner spray, and shop rags.
• Tip: Cleanliness prevents oil leaks.

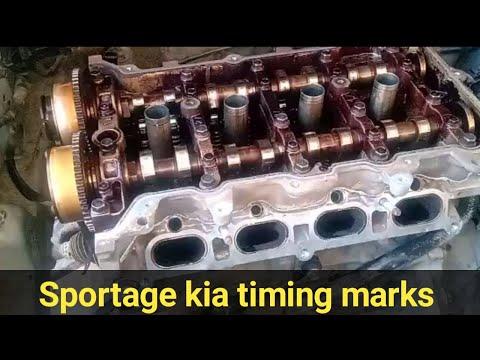

Step 8: Set cylinder #1 to TDC (Top Dead Center)

• Rotate the engine by hand using a metric socket set 8mm-22mm on the crank (clockwise only).
• Align crank and cam timing marks to the factory reference points.
• Mark the current positions with a paint marker as a backup reference.
• Tip: Take clear photos before disassembly.

Step 9: Remove timing chain tensioner, guides, and chain

• Remove the tensioner bolts using a metric socket set 8mm-22mm, then remove the tensioner.
• Remove chain guides using a metric socket set 8mm-22mm.
• Remove the chain, keeping the cam gears from moving.
• Torque to Kia service manual specification for tensioner and guide fasteners.

Step 10: Install the new chain, guides, and tensioner

• Install the new chain so the colored links (if provided) line up with the cam and crank timing marks.
• Install new guides using a metric socket set 8mm-22mm.
• Prime and install the new hydraulic tensioner (follow the part instructions), then release/set it per design.
• Torque to Kia service manual specification for all timing component fasteners.

Step 11: Verify timing by hand-rotating the engine

• Rotate the crankshaft two full turns clockwise using a metric socket set 8mm-22mm.
• Re-check that timing marks return to their correct positions.
• If marks do not line up correctly, stop and correct before sealing the cover.

Step 12: Replace the crank front seal and reseal the front cover

• Replace the crankshaft front seal using a flat blade screwdriver carefully to remove (avoid scratching), then press the new seal in evenly.
• Apply the specified bead of front cover RTV sealant (engine timing cover sealant) to the front cover sealing surface.
• Install the front cover and hand-start all bolts, then tighten evenly using a torque wrench 10-200 Nm range.
• Torque to Kia service manual specification for front cover bolts (varied bolt sizes/lengths).

Step 13: Reinstall crank pulley, engine mount, and remaining components

• Install the crank pulley and crank bolt using a crank pulley holding tool (specialty) and torque wrench 10-200 Nm range.
• If required, use a torque angle gauge (specialty) for the final crank bolt tightening step.
• Reinstall the right engine mount and bracket using a metric socket set 8mm-22mm.
• Reinstall the accessory belt using a metric wrench set 8mm-22mm.
• Install the valve cover with a new gasket using a metric socket set 8mm-22mm.
• Torque to Kia service manual specification for crank bolt, mount/bracket, and valve cover fasteners.

Step 14: Refill fluids and recheck for leaks

• Refill engine oil and install a new oil filter.
• Refill coolant using a funnel and bleed air as needed.
• Reconnect the battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and listen for abnormal rattles (a brief, mild tensioner fill noise can happen, but loud/continuous rattle is not normal).
• Let it idle and inspect for oil leaks at the front cover and crank seal area.
• Bring the engine to operating temperature and confirm the heater blows hot (helps confirm coolant flow/air bleed).
• Recheck coolant level after the first full heat-soak/cool-down cycle and top off if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,500 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $950-$1,850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
