🔧 Grand Cherokee - Timing Drive Inspection

Your Grand Cherokee with the 3.6L V6 does not use a timing belt. It uses an internal timing chain system, which is designed to last much longer than a rubber timing belt and is not a normal scheduled-maintenance replacement item.

If you are hearing chain rattle, have cam/crank correlation codes, rough running, or a check engine light, the correct repair is timing chain diagnosis and possible timing chain replacement.

Difficulty Level: Advanced | Estimated Time: 10-16 hours

---

⚠️ Safety & Precautions

• ⚠️ This is an advanced engine repair. Incorrect cam timing can cause severe engine damage.
• ⚠️ The timing chain is inside the engine, behind the front timing cover. Expect oil and coolant handling.
• ⚠️ Let the engine cool fully before working near coolant, oil, or the exhaust.
• ⚠️ Disconnect the negative battery cable before removing engine components.
• ⚠️ Support the vehicle only with jack stands if raising it. Never rely on a jack alone.
• ⚠️ Mark and organize every bolt. The 3.6L Pentastar uses several different bolt lengths.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 1/4-inch drive ratchet
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 18mm socket
• 21mm socket
• 24mm socket
• E8 external Torx socket
• E10 external Torx socket
• T30 Torx bit socket
• T40 Torx bit socket
• Metric wrench set 8mm-21mm
• Torque wrench 10-150 ft-lbs
• Inch-pound torque wrench 20-250 in-lbs
• Serpentine belt tool
• Harmonic balancer puller (specialty)
• Crankshaft holding tool (specialty)
• Camshaft holding tools for 3.6L Pentastar (specialty)
• Timing chain wedge tools for 3.6L Pentastar (specialty)
• Plastic trim removal tool
• Flat-blade screwdriver
• Pick tool set
• Gasket scraper plastic
• Drain pan 10-quart minimum
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Fender covers
• Shop towels
• Nitrile gloves
• Safety glasses
• OBD-II scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioners - Qty: 2
• Timing chain guides - Qty: 1 set
• Timing cover gasket set - Qty: 1
• Valve cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Engine oil filter - Qty: 1
• Engine oil 5W-20 synthetic - Qty: 6 quarts
• Engine coolant compatible with OAT coolant - Qty: As needed
• RTV engine sealant - Qty: 1 tube
• Harmonic balancer bolt - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park your Grand Cherokee on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool completely.
• Use wheel chocks behind the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Take photos before each removal step. This helps with hose, wiring, and bracket routing.
• A harmonic balancer is the large pulley on the front of the crankshaft. It must be removed to access the timing cover.
• A camshaft holding tool locks the camshafts so valve timing does not move during chain service.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Verify This Is a Timing Chain Job

• Use an OBD-II scan tool to check for timing-related codes before disassembly.
• Common clues include cam/crank correlation codes, cold-start rattling, misfires, or rough idle.
• If there are no symptoms, the chain usually does not need replacement as routine maintenance.
• Do not replace parts blindly.

Step 2: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal.
• Move the cable away from the battery post so it cannot spring back.

Step 3: Raise and Secure the Front

• Use a floor jack rated 3-ton minimum at the proper front lift point.
• Place jack stands rated 3-ton minimum under the approved support points.
• Keep wheel chocks behind the rear wheels.

Step 4: Remove Lower Shields and Intake Ducting

• Use a 10mm socket and plastic trim removal tool to remove the lower splash shield fasteners.
• Use a flat-blade screwdriver to loosen intake tube clamps.
• Remove the air intake ducting and set it aside.

Step 5: Drain Coolant and Engine Oil

• Place a drain pan 10-quart minimum under the radiator drain area.
• Drain enough coolant to prevent spillage when front engine components are removed.
• Use a 13mm socket for the engine oil drain plug if changing oil during this repair.
• Install the oil drain plug afterward and Torque to 27 Nm (20 ft-lbs).

Step 6: Remove the Serpentine Belt

• Use a serpentine belt tool on the belt tensioner.
• Rotate the tensioner slowly to release belt tension.
• Slide the belt off the pulleys and remove it.
• Draw the belt route first.

Step 7: Remove Front Accessories and Brackets

• Use 10mm socket, 13mm socket, and 15mm socket as needed to remove front brackets blocking the timing cover.
• Use shop towels to keep bolts grouped by location.
• Do not stretch wiring or coolant hoses. Move harnesses aside gently by hand.

Step 8: Remove the Harmonic Balancer

• Use a crankshaft holding tool to keep the crankshaft from turning.
• Use a 1/2-inch drive breaker bar and correct large socket to loosen the harmonic balancer bolt.
• Use a harmonic balancer puller (specialty) to pull the balancer straight off.
• Discard the old harmonic balancer bolt if replacing it with a new one.

Step 9: Remove Valve Covers

• Use an 8mm socket and 10mm socket to remove ignition coil and valve cover fasteners.
• Use a pick tool set gently to release electrical connector locks.
• Lift the valve covers off carefully.
• Remove old valve cover gaskets by hand.

Step 10: Set Engine to Timing Position

• Use a 24mm socket on the crankshaft bolt area to rotate the engine clockwise only.
• Align the factory timing marks before removing any timing components.
• Use camshaft holding tools for 3.6L Pentastar (specialty) to hold the camshafts in place.
• Never rotate backward for timing.

Step 11: Remove the Timing Cover

• Use 8mm socket, 10mm socket, 13mm socket, and E10 external Torx socket to remove timing cover fasteners.
• Use a plastic gasket scraper only on sealing surfaces.
• Remove the timing cover carefully so the sealing surface is not gouged.

Step 12: Lock and Remove Timing Chain Components

• Use timing chain wedge tools for 3.6L Pentastar (specialty) to keep chain position controlled.
• Use T30 Torx bit socket, T40 Torx bit socket, and 10mm socket to remove chain guides and tensioners.
• A tensioner is a spring- and oil-pressure-loaded part that keeps the chain tight.
• Remove the old timing chains, guides, and tensioners.

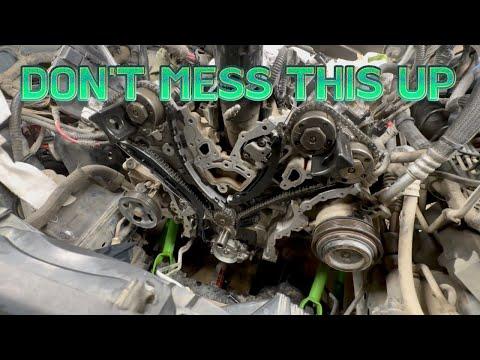

Step 13: Install New Timing Chains, Guides, and Tensioners

• Use the colored chain links and sprocket timing marks to align the new chains exactly.
• Use camshaft holding tools for 3.6L Pentastar (specialty) to prevent movement while installing.
• Install new guides and tensioners with a 10mm socket and T30 Torx bit socket.
• Torque timing guide and tensioner fasteners to the specification supplied with the timing kit or OEM service data.
• Do not release tensioners until all timing marks are confirmed.

Step 14: Rotate Engine by Hand and Recheck Timing

• Use a 24mm socket and rotate the crankshaft clockwise two full turns by hand.
• Stop immediately if you feel hard resistance.
• Recheck all timing marks after rotation.
• Hand-turning prevents surprise damage.

Step 15: Clean and Seal the Timing Cover

• Use a plastic gasket scraper and shop towels to clean old sealant from the timing cover and engine block.
• Install the new front crankshaft seal into the timing cover.
• Apply RTV engine sealant only where required on the timing cover joints.
• Install the timing cover carefully without smearing the sealant.

Step 16: Reinstall the Timing Cover Fasteners

• Use 8mm socket, 10mm socket, 13mm socket, and E10 external Torx socket to install timing cover bolts in their original locations.
• Snug bolts evenly first, then torque in a crisscross pattern.
• Use OEM service torque values for each bolt size because lengths and locations vary.

Step 17: Reinstall Valve Covers

• Install new valve cover gaskets by hand into the valve covers.
• Use an 8mm socket or 10mm socket to reinstall valve cover fasteners.
• Tighten evenly from the center outward.
• Use an inch-pound torque wrench 20-250 in-lbs and torque valve cover bolts to OEM specification.

Step 18: Reinstall the Harmonic Balancer

• Slide the harmonic balancer onto the crankshaft by hand as straight as possible.
• Use a new harmonic balancer bolt.
• Use a crankshaft holding tool and torque wrench 10-150 ft-lbs to tighten to OEM specification.
• Do not use an impact wrench for final tightening.

Step 19: Reinstall Belt, Brackets, and Intake

• Use 10mm socket, 13mm socket, and 15mm socket to reinstall brackets and accessories.
• Use a serpentine belt tool to rotate the tensioner and install the new serpentine belt.
• Make sure the belt ribs sit fully in every pulley groove.
• Use a flat-blade screwdriver to tighten intake tube clamps.

Step 20: Refill Fluids and Reconnect Battery

• Refill engine oil with 5W-20 synthetic engine oil.
• Refill coolant with OAT-compatible engine coolant.
• Use a 10mm socket to reconnect the negative battery terminal.
• Check that all tools are removed from the engine bay before starting.

---

✅ After Repair

• Start the engine and let it idle. It may rattle briefly while oil pressure builds, but it should quiet quickly.
• Watch for oil or coolant leaks around the timing cover, valve covers, and lower engine area.
• Use an OBD-II scan tool to clear codes and monitor cam/crank correlation data if available.
• Let the engine reach operating temperature, then shut it off and recheck coolant and oil levels.
• Road test gently for 10-15 minutes, then inspect again for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,200 (parts + labor)

DIY Cost: $450-$1,000 (parts only)

You Save: $1,350-$2,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-14 hours.

---
