🔧 Cruze - Timing Chain Replacement

Your Cruze’s 1.4L turbo engine uses a timing chain (not a timing belt). Replacing it means opening the front of the engine, setting the engine to exact timing marks, and installing a new chain, guides, and tensioner so valve timing stays correct.

Difficulty Level: Advanced | Estimated Time: 6-10 hours

Assumption: stock 1.4L turbo with OEM-style timing set.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot coolant and turbo parts can burn you.
• ⚠️ Disconnect the negative battery cable to prevent accidental cranking.
• ⚠️ Support the engine before removing the passenger-side engine mount.
• ⚠️ Keep fingers clear when releasing the chain tensioner (spring-loaded).
• ⚠️ Do not rotate the crank/cams with the chain removed; valves can contact pistons.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Metric socket set 8mm-21mm
• 1/4" drive ratchet
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-200 Nm range)
• Torx bit set (E-Torx and T-bit assortment)
• Allen key set (metric)
• Screwdriver set (flat and Phillips)
• Trim clip removal tool
• Serpentine belt tool or long 3/8" ratchet
• Harmonic balancer puller (specialty)
• Engine support bar (specialty)
• Camshaft/crankshaft locking tool set (specialty)
• Gasket scraper or plastic razor blade
• Drain pan (10-liter minimum)
• Funnel
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (chain + guides + tensioner) - Qty: 1
• Front cover gasket set / sealing set - Qty: 1
• Crankshaft front oil seal - Qty: 1
• Valve cover gasket - Qty: 1
• RTV silicone sealant (OEM-approved) - Qty: 1
• Engine coolant (Dex-Cool compatible) - Qty: 1-2 gallons
• Engine oil (OEM spec) - Qty: 5 quarts
• Oil filter - Qty: 1
• Accessory drive belt - Qty: 1
• Crankshaft pulley bolt (one-time-use if specified by kit/manual) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Lift the front of the car with a floor jack and support it on jack stands.
• Disconnect the negative battery cable using a 10mm socket.
• Place a drain pan under the radiator area; you’ll drain coolant when the front cover comes off.
• Plan clean workspace: timing work needs good lighting and no rushed steps.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right front wheel and splash shields

• Use a lug wrench to remove the wheel (add this tool if your kit doesn’t include one).
• Use a trim clip removal tool and 8mm socket to remove the inner fender liner/splash shield fasteners.
• This opens access to the crank pulley and front cover area.

Step 2: Drain coolant (and plan on an oil change)

• Place the drain pan under the radiator drain area.
• Use a screwdriver or pliers (add if needed) to open the drain/loosen the lower hose carefully.
• Expect an oil change after the job; front cover sealing work can contaminate oil.

Step 3: Remove the accessory drive belt

• Use a serpentine belt tool or long 3/8" ratchet to rotate the belt tensioner and slip the belt off.
• Take a photo of belt routing first.

Step 4: Support the engine and remove the passenger-side engine mount

• Set an engine support bar (specialty) across the fenders and lightly take the engine’s weight (this tool holds the engine from above).
• Use a metric socket set and ratchet to remove the mount fasteners and mount.
• Torque to OEM specification during reassembly (mount fasteners are critical safety items).

Step 5: Remove the valve cover to access the camshafts

• Unplug coils/sensors as needed (use a small screwdriver for connector locks).
• Use the appropriate socket/Torx bit to remove valve cover fasteners.
• Lift off the valve cover and remove the old valve cover gasket.

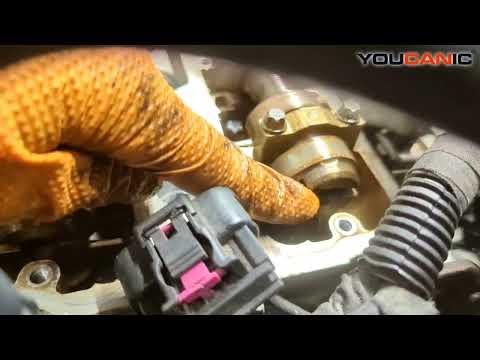

Step 6: Set cylinder #1 to TDC on compression

• Use a socket and breaker bar on the crank pulley bolt to rotate the engine clockwise.
• Align timing marks per the locking tool kit instructions.
• Do not use the starter to bump the engine.

Step 7: Install cam/crank locking tools

• Install the camshaft/crankshaft locking tool set (specialty) (these tools hold shafts so timing can’t move).
• Confirm marks still align after tools are installed.

Step 8: Remove the crankshaft pulley (harmonic balancer)

• Use a breaker bar to loosen the crank bolt while the crank is locked.
• Use a harmonic balancer puller (specialty) to remove the pulley (this puller extracts the pulley without prying).
• Torque to OEM specification during reassembly; many crank bolts are torque-to-yield (replace if required).

Step 9: Remove the front timing cover

• Remove front cover bolts using the correct socket/E-Torx sizes.
• Gently separate the cover using a plastic trim tool; avoid gouging the aluminum sealing surfaces.
• Use a gasket scraper and brake cleaner spray to clean old RTV from the cover and engine.

Step 10: Remove the timing chain, guides, and tensioner

• Relieve and remove the tensioner using the correct socket.
• Remove chain guides with a socket/Torx bit.
• Remove the chain and keep note of routing.

Step 11: Install new guides and tensioner (do not pull the pin yet)

• Install new guides using a torque wrench.
• Torque to OEM specification for guide and tensioner fasteners (small fasteners strip easily).
• If the new tensioner has a retaining pin, leave it installed for now.

Step 12: Install the new timing chain and align colored links

• Route the chain and align colored chain links with the crank and cam sprocket timing marks.
• Keep tension on the non-tensioned side while installing (usually the “tight side”).
• Double-check that all marks still line up with the engine locked.

Step 13: Release the tensioner and verify timing by hand rotation

• Release the tensioner (remove the retaining pin if equipped) using needle-nose pliers (add if needed).
• Remove locking tools, then rotate the engine clockwise by hand two full revolutions using a socket and breaker bar.
• Reinstall locking tools and re-check marks: they must align exactly.

Step 14: Reseal and reinstall the front cover

• Install a new crankshaft front oil seal if removed; use an appropriate seal driver (add if needed) or a flat installer tool.
• Apply RTV silicone sealant at the specified joints/corners (commonly where cover meets oil pan/head seams).
• Install the cover and hand-start all bolts, then use a torque wrench to tighten in an even pattern.
• Torque to OEM specification (cover bolts are different lengths—keep them organized).

Step 15: Reinstall crank pulley, engine mount, valve cover, and belt

• Reinstall the crank pulley and bolt using a torque wrench and any required angle-tightening method.
• Torque to OEM specification for the crank bolt and mount fasteners.
• Install the valve cover with a new gasket and tighten with a torque wrench to OEM specification (over-tightening can crack the cover).
• Install the new accessory belt using a serpentine belt tool.

Step 16: Refill fluids and reassemble wheel well

• Refill cooling system with Dex-Cool compatible coolant using a funnel.
• Change oil and filter (recommended) using the correct socket and drain pan.
• Reinstall splash shields and wheel using a socket and torque wrench.
• Torque to OEM specification for lug nuts.

---

✅ After Repair

• Start the engine and let it idle; listen for abnormal rattling at the timing cover.
• Check for leaks: coolant at the front cover and oil around the crank seal.
• Bring the engine to operating temperature and confirm the heater blows hot (helps confirm coolant is circulating).
• Recheck coolant level after a full cool-down and top off as needed.
• If the check engine light appears, scan codes and address them before driving far.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $550-$1,950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 6-10 hours.

---
