🔧 Timing Chain - Replacement

Your 3.6L engine does not use a timing belt. It uses a timing chain system, which is a much larger repair and requires removing major front-engine components. This job is best approached carefully because cam timing must be set exactly or the engine can be damaged.

Difficulty Level: Advanced | Estimated Time: 10-14 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting.
• Support the vehicle securely on jack stands before working underneath.
• Let the engine cool fully before touching the cooling system.
• This repair requires precise cam timing; incorrect timing can cause engine damage.
• Keep the ignition off and do not crank the engine until timing is fully verified.
• Drain engine oil and coolant before removing front cover components.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• Torx bit set
• Torque wrench
• Breaker bar
• Harmonic balancer puller (specialty)
• Timing chain holding tool (specialty)
• Camshaft locking tool (specialty)
• Crankshaft holding tool (specialty)
• Floor jack (rated 3-ton minimum)
• Jack stands
• Drain pan
• Gasket scraper
• Plastic trim tool
• Shop light
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain set - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Valve cover gaskets - Qty: 2
• Water pump gasket or seal - Qty: 1
• Engine coolant - Qty: 2 gallons
• Engine oil - Qty: 6 quarts
• Oil filter - Qty: 1
• RTV sealant - Qty: 1
• One-time-use fasteners - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Drain the engine oil and coolant into clean drain pans.
• Remove the air intake assembly and any parts blocking the front cover.
• Label every connector and bolt as you remove it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove front-end accessories

• Use the correct metric socket set and Torx bits to remove the accessory drive belt, belt tensioner, brackets, and any front accessories blocking the timing cover.
• Remove the crankshaft pulley with a harmonic balancer puller.
• Keep track of bolt lengths and locations.

Step 2: Remove timing cover

• Use the metric socket set to remove the timing cover bolts.
• Carefully pry the cover loose with a plastic trim tool.
• Remove the cover without damaging the sealing surfaces.

Step 3: Set engine to top dead center

• Use a socket and breaker bar on the crankshaft bolt to rotate the engine by hand.
• Bring cylinder 1 to top dead center on the compression stroke.
• Align the factory timing marks exactly before removing the chain.
• Do not rotate the crankshaft or camshafts once the chain is removed.

Step 4: Lock the timing components

• Use the camshaft locking tool and crankshaft holding tool to secure the engine timing position.
• Verify the marks are still aligned before loosening anything.
• Take photos before disassembly.

Step 5: Remove timing chain components

• Use the metric socket set to remove the chain tensioner, guides, and sprockets.
• Remove the timing chain set from the engine.
• Inspect the guides for wear or broken plastic.

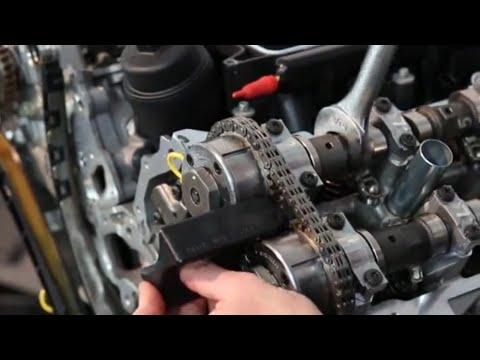

Step 6: Install new timing chain set

• Install the new sprockets, chain, guides, and tensioner in the same timing position.
• Align all colored chain links and timing marks exactly to the service manual positions.
• Torque all fasteners to the manufacturer specification for the timing set hardware.
• Torque to factory specification for each chain and guide fastener.

Step 7: Reinstall timing cover and front components

• Clean the sealing surfaces with a gasket scraper and apply RTV sealant where required.
• Install the new front crankshaft seal and timing cover gasket set.
• Reinstall the timing cover using the metric socket set.
• Torque to factory specification for timing cover bolts.
• Reinstall the crankshaft pulley with the proper puller/installer tool if needed.

Step 8: Reassemble accessories and refill fluids

• Reinstall all brackets, belt drive parts, and removed accessories using the correct sockets and Torx bits.
• Install a new oil filter and refill the engine with oil.
• Refill the cooling system with the correct coolant mix.
• Reconnect the negative battery cable.

Step 9: Verify timing and start-up

• Turn the engine by hand two full revolutions with the breaker bar.
• Recheck all timing marks before starting.
• Start the engine and listen for abnormal chain noise.
• Check for oil, coolant, or front cover leaks.

---

✅ After Repair

• Let the engine idle and reach operating temperature.
• Check coolant level after warm-up and top off if needed.
• Inspect for leaks around the timing cover and water pump area.
• Test drive gently and recheck for warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,500 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $1,450-$2,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-14 hours.

---
