🔧 Timing Chain - Replacement

Your 3.6L engine does not use a timing belt. It uses a timing chain system instead, and chain replacement is a major internal engine repair. This job requires removing front engine components, opening the timing cover, and re-timing the engine precisely.

Difficulty Level: Advanced | Estimated Time: 10-14 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting.
• Let the engine cool fully before touching the cooling system or front cover.
• Support the engine properly if an engine mount must be removed.
• Keep track of timing marks carefully; incorrect timing can cause severe engine damage.
• Do not rotate the crankshaft or camshafts independently once the timing components are removed.
• Drain coolant and engine oil as required before opening the front cover.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Battery terminal wrench
• Socket set, metric
• Ratchet
• Breaker bar
• Torque wrench
• Harmonic balancer puller (specialty)
• Timing chain holding tool (specialty)
• Camshaft locking tool (specialty)
• Floor jack (rated 3-ton minimum)
• Jack stands
• Drain pan
• Gasket scraper
• Plastic pry tool
• Shop light
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Engine oil - Qty: 6 quarts
• Oil filter - Qty: 1
• Coolant - Qty: 1 drain and refill
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Drain engine oil and coolant into clean drain pans.
• Raise the front of the truck safely and support it on jack stands.
• Label connectors, brackets, and bolts as you remove them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

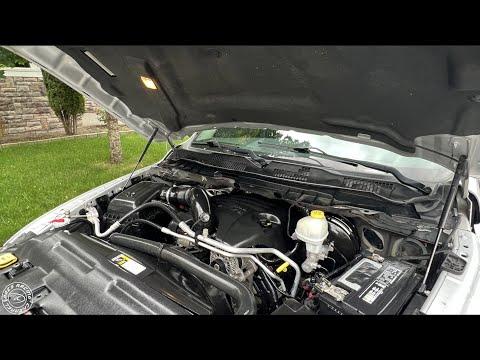

Step 1: Prepare the engine bay

• Use a battery terminal wrench to disconnect the negative battery cable.
• Remove the engine cover and intake components that block access to the front of the engine using the correct metric sockets and ratchet.
• Drain the engine oil and coolant with a drain pan.

Step 2: Remove accessory drive components

• Use a breaker bar to relieve tension on the serpentine belt tensioner, then remove the belt.
• Remove brackets, pulleys, and any accessories that block the timing cover using metric sockets.
• If needed, use a floor jack and jack stands to support the vehicle while working underneath.

Step 3: Access the timing cover

• Use a harmonic balancer puller to remove the crankshaft pulley.
• Remove the front timing cover bolts with the correct metric sockets and keep track of bolt locations.
• Carefully pry the timing cover loose with a plastic pry tool.

Step 4: Set engine timing

• Rotate the engine by hand with a breaker bar until cylinder 1 is at top dead center on the compression stroke.
• Install the camshaft locking tool and timing chain holding tool if required.
• Confirm all factory timing marks are aligned before removing any chain components.
• Do not force the engine by the starter.

Step 5: Remove timing components

• Use metric sockets to remove the timing chain tensioner, guides, and chain components.
• Inspect the sprockets, guides, and tensioner surfaces for wear.
• Replace any worn related parts while the engine is open.

Step 6: Install new timing components

• Install the new timing chain, guides, and tensioner according to the factory timing marks.
• Use the camshaft locking tool to keep the cams aligned while installing.
• Tighten fasteners to the factory torque specifications from the service manual. Torque to factory spec for each fastener.
• Check marks twice before turning the engine.

Step 7: Reassemble the front of the engine

• Install a new front crankshaft seal and timing cover gasket set.
• Clean gasket surfaces carefully before installing the timing cover.
• Reinstall the crankshaft pulley and torque all fasteners to factory specification. Torque to factory spec.
• Reinstall accessories, brackets, and the serpentine belt.

Step 8: Refill fluids and verify timing

• Refill engine oil and coolant with the correct specifications.
• Reconnect the negative battery cable.
• Crank the engine and listen for abnormal noise.
• Check for oil, coolant, or gasket leaks at the front cover.

---

✅ After Repair

• Start the engine and let it idle until it reaches operating temperature.
• Check engine oil level again after shutdown.
• Inspect for coolant leaks, oil leaks, and warning lights.
• If the check engine light appears, scan for timing-related codes.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,500 (parts + labor)

DIY Cost: $450-$950 (parts only)

You Save: $1,350-$2,550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-14 hours.

---
