🔧 Sentra - Timing Chain Replacement

Your Sentra’s 1.8L engine uses a timing chain, not a timing belt. Replacing the chain is a major job because the chain sits behind the front engine cover, so you must remove accessories, engine mount(s), the valve cover, and the front cover, then re-time the engine.

Difficulty Level: Advanced | Estimated Time: 6-10 hours

Assumption: Torque specs listed are typical for this setup; verify if you have an OEM manual.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot coolant/oil can burn.
• ⚠️ Support the car with jack stands before going under it.
• ⚠️ You will remove an engine mount—support the engine with a floor jack and a wood block to spread the load.
• ⚠️ Disconnect the negative battery terminal to prevent accidental cranking.
• ⚠️ Keep fingers/hair away from belts and pulleys during checks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wood block (2x4)
• 1/4" drive ratchet
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket set 8mm-19mm
• Deep socket set 10mm-19mm
• Wrench set 10mm-19mm
• Torque wrench (10-80 Nm range)
• Torque wrench (60-250 Nm range)
• Phillips screwdriver #2
• Flat trim tool
• Pliers
• Serpentine belt tool 14mm
• Harmonic balancer puller kit (specialty)
• Crank pulley holding tool (specialty)
• RTV gasket maker (oil resistant)
• Plastic gasket scraper
• Drain pan (10-quart)
• Funnel
• Shop towels
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (chain + guides + tensioner) - Qty: 1
• Front cover sealant/RTV (oil resistant) - Qty: 1
• Valve cover gasket set - Qty: 1
• Front crankshaft oil seal - Qty: 1
• Engine oil (5W-30) - Qty: 5 quarts
• Oil filter - Qty: 1
• Coolant (Nissan-compatible) - Qty: 1-2 gallons
• Accessory drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in neutral, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal.
• Plan for fluid service: you’ll drain coolant and engine oil during this job.
• Have a clean table for bolts; group them by area. Label bags with a marker.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and access the right side of the engine

• Use a floor jack to lift the front-right and place the car on jack stands.
• Remove the right front wheel using a 19mm socket.
• Remove the splash shield/fender liner fasteners using a flat trim tool and 10mm socket.

Step 2: Drain engine oil and coolant

• Place a drain pan under the oil pan and remove the drain plug with a 14mm socket.
• Drain coolant from the radiator drain (petcock) using pliers if needed and a drain pan.
• Reinstall the oil drain plug and coolant drain when finished. Don’t overtighten small drains.

Step 3: Remove the accessory drive belt

• Relieve belt tension using a serpentine belt tool 14mm.
• Slip the belt off the pulleys and remove it from the engine bay.

Step 4: Support the engine and remove the right engine mount

• Place a floor jack under the engine with a wood block (2x4) between the jack and oil pan.
• Raise the jack just enough to support engine weight.
• Remove the right engine mount bolts using a 14mm socket and 17mm socket.

Step 5: Remove the crankshaft pulley (harmonic balancer)

• Hold the crank pulley using a crank pulley holding tool (specialty).
• Remove the crank bolt using a 1/2" breaker bar and the correct socket.
• Use a harmonic balancer puller kit (specialty) to pull the pulley off straight.
• Torque to 180 Nm (133 ft-lbs) for the crank bolt on reassembly.

Step 6: Remove ignition coils and valve cover

• Unplug the coil connectors and remove coil bolts using a 10mm socket.
• Remove the valve cover bolts using a 10mm socket, then lift the cover off.
• Clean the gasket surfaces using a plastic gasket scraper and shop towels.
• Torque to 9 Nm (80 in-lbs) for valve cover bolts on reassembly.

Step 7: Set cylinder #1 to Top Dead Center (TDC) on compression

• Rotate the engine by hand using a socket and ratchet on the crankshaft (crank bolt temporarily installed helps).
• Align timing marks: cam sprocket marks should line up with the colored chain links (or your paint marks), and the crank sprocket mark should align with its chain mark.
• Mark the chain and sprockets with a paint marker so you can double-check alignment later.
• TDC means piston at top of its travel.

Step 8: Remove the front timing cover

• Remove the front cover bolts using a 10mm socket and 12mm socket.
• Carefully break the seal and remove the cover using a flat trim tool (gentle prying only).
• Clean old RTV from the mating surfaces using a plastic gasket scraper and shop towels.
• Torque to 12 Nm (106 in-lbs) for front cover bolts on reassembly (small bolts).

Step 9: Release tensioner and remove the timing chain

• Remove the timing chain tensioner bolts using a 10mm socket.
• Remove the tensioner, then remove chain guides using a 10mm socket.
• Lift the chain off the cam and crank sprockets.
• Torque to 12 Nm (106 in-lbs) for tensioner/guide bolts on reassembly.

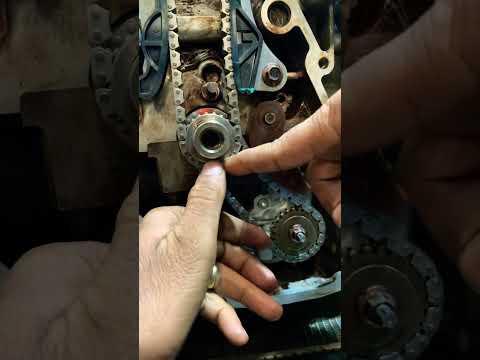

Step 10: Install the new chain, guides, and tensioner (timing the engine)

• Install the new chain onto the crank sprocket first, then route it up to the cam sprockets.
• Align the chain’s colored links with the timing marks on the crank and cam sprockets.
• Install the new guides using a 10mm socket, then install the tensioner using a 10mm socket.
• Pull the tensioner pin (if equipped) to apply tension.
• Rotate the engine by hand two full turns using a ratchet and re-check mark alignment. If it binds, stop immediately.

Step 11: Reinstall front cover with RTV and replace crank seal

• Install a new front crank seal (if removed) using a suitable socket as a driver and gentle taps (even pressure).
• Apply a continuous bead of RTV gasket maker (oil resistant) to the front cover sealing surface.
• Install the front cover and hand-start all bolts, then tighten with a torque wrench.
• Torque to 12 Nm (106 in-lbs) for front cover bolts.

Step 12: Reassemble valve cover, mount, belt, and wheel

• Install the valve cover with a new gasket and tighten bolts using a torque wrench. Torque to 9 Nm (80 in-lbs).
• Install ignition coils using a 10mm socket. Torque to 8 Nm (71 in-lbs).
• Install the crank pulley and crank bolt using a torque wrench and holding tool. Torque to 180 Nm (133 ft-lbs).
• Reinstall the right engine mount using a 14mm socket/17mm socket. Torque to 65 Nm (48 ft-lbs).
• Install the accessory belt using a serpentine belt tool 14mm.
• Reinstall splash shield using a 10mm socket and reinstall wheel using a 19mm socket. Torque to 113 Nm (83 ft-lbs) for lug nuts.

Step 13: Refill fluids and reconnect battery

• Refill engine oil using a funnel (and install a new oil filter).
• Refill coolant using a funnel.
• Reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and let it idle; listen for abnormal rattling. A brief initial noise can happen.
• Check for oil leaks around the front cover and valve cover.
• Bleed the cooling system: warm engine to operating temp, heater on HOT, top off coolant as the level drops.
• After a short test drive, recheck oil level and coolant level and inspect for leaks again.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $750-$1,800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 6-10 hours.

---
