🔧 Escape - Timing Belt Replacement

Your Escape with the 2.5L engine does not use a timing belt. It uses an internal timing chain, which runs inside the engine and is normally not replaced as routine maintenance.

If you are hearing chain rattle, have timing-related trouble codes, or the engine is out of time, this becomes a major timing chain service that requires special tools and careful alignment.

Difficulty Level: Advanced | Estimated Time: 8-12 hours

---

⚠️ Safety & Precautions

• ⚠️ This repair can cause severe engine damage if the crankshaft or camshafts are mis-timed.
• ⚠️ Disconnect the negative battery cable before working near the starter, alternator, or engine harness.
• ⚠️ Support the engine before removing the right engine mount. The mount helps hold the engine in place.
• ⚠️ Never rotate the crankshaft backward during timing setup unless the service step specifically allows it.
• ⚠️ Do not use impact tools on the crankshaft pulley bolt during timing alignment.
• ⚠️ Work only on a cold engine. Hot coolant, oil, and aluminum parts can burn you.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 1/4-inch drive ratchet
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 3/8-inch drive torque wrench
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 18mm socket
• 21mm socket
• 8mm wrench
• 10mm wrench
• 13mm wrench
• 15mm wrench
• Flat-blade screwdriver
• Trim clip removal tool
• Serpentine belt tool
• Crankshaft pulley holding tool (specialty)
• Harmonic balancer puller (specialty)
• Ford/Mazda 2.5L camshaft alignment plate (specialty)
• Ford/Mazda 2.5L crankshaft TDC timing pin (specialty)
• Engine support bar (specialty)
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Drain pan 10-quart minimum
• Plastic scraper
• Gasket scraper
• Brake cleaner spray
• Shop towels
• RTV applicator nozzle
• Paint marker
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guide set - Qty: 1
• Crankshaft pulley bolt - Qty: 1
• Front crankshaft seal - Qty: 1
• Valve cover gasket - Qty: 1
• Timing cover RTV sealant - Qty: 1 tube
• Engine oil 5W-20 synthetic blend or full synthetic - Qty: 5.7 quarts
• Oil filter - Qty: 1
• Engine coolant concentrate or premix compatible with Ford orange coolant - Qty: As needed
• Serpentine belt - Qty: 1
• Right engine mount bolts - Qty: As required if removed and specified one-time-use

---

📋 Before You Begin

• 🚗 Park your Escape on level ground, shift to Park, and set the parking brake.
• 🧊 Let the engine cool completely before opening the cooling system or removing covers.
• 🔋 Use a 10mm wrench to disconnect the negative battery cable.
• 🧰 A timing chain is a metal chain that keeps the crankshaft and camshafts moving together. If it is installed wrong, the engine may not start or may be damaged.
• 🧰 A camshaft alignment plate is a flat locking tool that holds the camshafts in the correct position during timing work.
• 🧰 A crankshaft TDC timing pin is a stop pin that helps position the crankshaft at top dead center, meaning piston #1 is at the top of its travel.
• 📝 Assumption: this procedure is for timing chain service, because your Escape does not have a timing belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Support the Front

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 3-ton minimum to lift the front of your Escape.
• Set the vehicle securely on jack stands rated 3-ton minimum.
• Wear safety glasses and nitrile gloves.
• Shake test before crawling under.

Step 2: Remove the Right Front Wheel and Splash Shield

• Use a 21mm socket to remove the right front wheel lug nuts.
• Remove the right front wheel.
• Use a trim clip removal tool, 8mm socket, and 10mm socket to remove the inner splash shield fasteners.
• Set the shield aside so you can reach the crankshaft pulley area.
• When reinstalling the wheel later, torque lug nuts to 135 Nm (100 ft-lbs).

Step 3: Drain Coolant and Engine Oil

• Place a drain pan 10-quart minimum under the radiator drain area.
• Use a flat-blade screwdriver if needed to open the radiator drain valve slowly.
• Move the drain pan under the oil pan.
• Use a 15mm socket to remove the engine oil drain plug.
• Reinstall the drain plug after draining and torque to 27 Nm (20 ft-lbs).
• Keep coolant away from pets.

Step 4: Remove the Serpentine Belt

• Use a serpentine belt tool on the belt tensioner to release belt tension.
• Slide the belt off the pulleys and remove it.
• Draw the belt routing with a paint marker if the underhood decal is missing.

Step 5: Support the Engine

• Install the engine support bar across the strut towers and attach it to the engine lifting point.
• Lightly tension the support bar until the engine is supported.
• Avoid lifting the engine too high. You only need to hold its weight.

Step 6: Remove the Right Engine Mount

• Use a 15mm socket and 18mm socket to remove the right engine mount and bracket fasteners.
• Use a 13mm socket where smaller bracket bolts are fitted.
• Lift the mount out of the engine bay.
• During installation, tighten mount-to-body fasteners to Torque to 80 Nm (59 ft-lbs) unless your replacement bolt instructions specify otherwise.
• During installation, tighten mount-to-engine bracket fasteners to Torque to 90 Nm (66 ft-lbs) unless your replacement bolt instructions specify otherwise.

Step 7: Remove the Valve Cover

• Use a 10mm socket to remove ignition coil fasteners and move the coils aside as needed.
• Use a flat-blade screwdriver gently to release wiring clips from the valve cover.
• Use a 8mm socket or 10mm socket to remove valve cover bolts.
• Lift off the valve cover and remove the old gasket.
• On installation, tighten valve cover bolts evenly to Torque to 10 Nm (89 in-lbs).

Step 8: Set Cylinder #1 at Top Dead Center

• Use a 21mm socket and 1/2-inch drive breaker bar on the crankshaft pulley bolt.
• Rotate the engine clockwise only until cylinder #1 is near top dead center.
• Install the Ford/Mazda 2.5L crankshaft TDC timing pin in the timing pin location.
• Carefully rotate the crankshaft clockwise by hand until it rests against the timing pin.
• Install the Ford/Mazda 2.5L camshaft alignment plate at the rear of the camshafts.
• The plate should slide in without forcing it. If it does not, rotate the crankshaft one full turn clockwise and try again.
• Never force timing tools.

Step 9: Remove the Crankshaft Pulley

• Use a crankshaft pulley holding tool to hold the pulley still.
• Use a 21mm socket and 1/2-inch drive breaker bar to loosen the crankshaft pulley bolt.
• Remove the bolt and discard it if your replacement kit includes a new one.

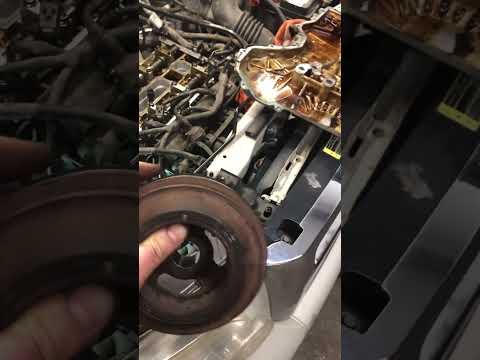

• Use a harmonic balancer puller to remove the crankshaft pulley if it does not slide off by hand.

Step 10: Remove the Front Timing Cover

• Use 8mm socket, 10mm socket, and 13mm socket to remove timing cover bolts.
• Note bolt locations because lengths can vary.
• Use a plastic scraper to gently separate the cover from the engine.
• Do not pry against soft sealing surfaces.
• Clean old RTV using a gasket scraper, plastic scraper, brake cleaner spray, and shop towels.

Step 11: Remove the Timing Chain Tensioner and Guides

• Confirm the Ford/Mazda 2.5L camshaft alignment plate and Ford/Mazda 2.5L crankshaft TDC timing pin are still installed.
• Use a 10mm socket to remove the timing chain tensioner bolts.
• Use a 10mm socket to remove the fixed and pivoting chain guide bolts.
• Remove the timing chain from the sprockets.
• On installation, tighten guide bolts to Torque to 10 Nm (89 in-lbs).
• On installation, tighten timing chain tensioner bolts to Torque to 10 Nm (89 in-lbs).

Step 12: Install the New Timing Chain

• Use your hands to place the new timing chain over the crankshaft and camshaft sprockets.
• Align the colored chain links with the timing marks on the sprockets.
• Use the paint marker to mark the aligned links if that helps you see them clearly.
• Install the new guides using a 10mm socket.
• Install the new tensioner using a 10mm socket.
• Release the tensioner only after the chain, guides, and timing tools are correctly installed.
• Check marks twice before release.

Step 13: Verify Timing by Hand

• Remove the Ford/Mazda 2.5L crankshaft TDC timing pin and Ford/Mazda 2.5L camshaft alignment plate.
• Use a 21mm socket and 1/2-inch drive breaker bar to rotate the crankshaft clockwise two full turns.
• Reinstall the crankshaft timing pin and camshaft alignment plate.
• Both tools should fit correctly again.
• If either tool does not fit, stop and reset the timing before continuing.

Step 14: Reinstall the Timing Cover

• Use brake cleaner spray and shop towels to make the sealing surfaces clean and oil-free.
• Apply timing cover RTV sealant with the RTV applicator nozzle in the factory-style bead path.
• Install the timing cover carefully without smearing the RTV.
• Use 8mm socket, 10mm socket, and 13mm socket to install the bolts finger-tight first.
• Tighten small timing cover bolts to Torque to 10 Nm (89 in-lbs).
• Tighten larger timing cover bolts to Torque to 25 Nm (18 ft-lbs).

Step 15: Install the Crankshaft Pulley

• Install the crankshaft pulley by hand, making sure it seats straight.
• Install a new crankshaft pulley bolt.
• Use a crankshaft pulley holding tool, 21mm socket, and 1/2-inch drive torque wrench.
• Tighten the crankshaft pulley bolt to Torque to 100 Nm (74 ft-lbs), then turn an additional 90 degrees.
• Use a paint marker to mark the bolt head before the angle turn.

Step 16: Reinstall the Valve Cover and Engine Mount

• Install the new valve cover gasket into the valve cover groove.
• Use a 10mm socket to install valve cover bolts and torque to 10 Nm (89 in-lbs).
• Use a 15mm socket, 18mm socket, and 3/8-inch drive torque wrench to reinstall the right engine mount.
• Tighten mount-to-body fasteners to Torque to 80 Nm (59 ft-lbs).
• Tighten mount-to-engine bracket fasteners to Torque to 90 Nm (66 ft-lbs).
• Remove the engine support bar after the mount is fully tightened.

Step 17: Reinstall the Belt, Splash Shield, and Wheel

• Use a serpentine belt tool to rotate the tensioner and install the serpentine belt.
• Check that the belt ribs sit correctly in every pulley groove.
• Use a trim clip removal tool, 8mm socket, and 10mm socket to reinstall the splash shield.
• Install the wheel and use a 21mm socket to snug the lug nuts.
• Lower the vehicle with the floor jack rated 3-ton minimum.
• Use a 1/2-inch drive torque wrench and 21mm socket to torque lug nuts to 135 Nm (100 ft-lbs).

Step 18: Refill Fluids and Reconnect Battery

• Install a new oil filter by hand and tighten until the gasket contacts, then turn about 3/4 turn more.
• Add 5W-20 engine oil to the correct level.
• Refill the cooling system with Ford-compatible coolant.
• Use a 10mm wrench to reconnect the negative battery cable.
• Start the engine and let it idle while checking for oil or coolant leaks.

---

✅ After Repair

• ✅ Listen for abnormal rattling, knocking, or scraping. Shut the engine off immediately if you hear harsh mechanical noise.
• ✅ Let the engine reach normal temperature, then check coolant level after it cools back down.
• ✅ Check the oil level again after the first warm-up and top off if needed.
• ✅ Inspect around the timing cover, valve cover, crank pulley, oil filter, and drain plug for leaks.
• ✅ Road test gently for 10-15 minutes, then recheck for leaks.
• ✅ If the check engine light comes on, scan for codes before driving farther.

---
