🔧 Timing Drive - Service Information

Your F-150 does not use a timing belt. The 5.0L V8 uses a timing chain system, so there is no timing belt replacement procedure for this engine. If you are hearing chain noise, have a cam/crank correlation code, or suspect a timing issue, the repair is a timing chain service instead of a belt job.

Difficulty Level: Advanced | Estimated Time: 10-16 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting.
• Let the engine cool fully before working near the front cover and exhaust.
• Support the truck securely on jack stands if you need access from below.
• This job requires careful camshaft timing alignment; one mistake can cause engine damage.
• Keep track of bolts by length and location during disassembly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• Torque wrench
• Breaker bar
• 3/8-inch drive ratchet
• 1/2-inch drive ratchet

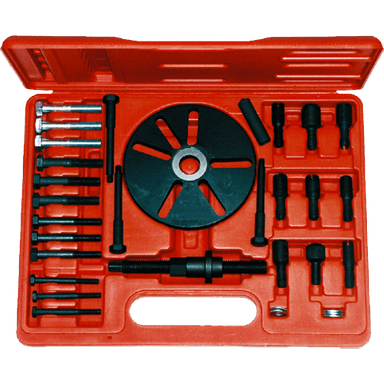

• Harmonic balancer puller (specialty)
• Camshaft holding tools (specialty)
• Timing chain alignment tools (specialty)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated for truck weight)
• Drain pan
• Scraper
• Plastic trim tool
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Valve cover gaskets - Qty: 1 set
• Engine oil - Qty: 8 quarts
• Oil filter - Qty: 1
• Coolant - Qty: 1 refill
• RTV sealant - Qty: 1 tube

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Drain the coolant and engine oil before removing the front cover.
• Label connectors, hoses, and bolts as you remove them.
• Take photos as you go.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front accessories

• Use the metric socket set and ratchet to remove the air intake parts, fan shroud, drive belt, and any brackets blocking the front cover.
• Use the breaker bar if the belt tension is tight.

Step 2: Drain fluids and remove the front cover area

• Use a drain pan to catch engine oil and coolant.
• Use the metric socket set to remove the crankshaft pulley/harmonic balancer bolt.
• Use the harmonic balancer puller to remove the pulley from the crankshaft.

Step 3: Set engine timing to top dead center

• Rotate the engine by hand with a breaker bar until cylinder 1 is at top dead center on the compression stroke.
• Install the timing chain alignment tools and camshaft holding tools to lock the timing position.
• Do not force the crankshaft.

Step 4: Remove the timing cover

• Use the metric socket set to remove the timing cover bolts.
• Use a plastic trim tool and scraper to separate the cover without damaging the sealing surfaces.
• Remove the timing cover and front crankshaft seal.

Step 5: Replace the timing components

• Use the metric socket set to remove the old timing chains, guides, and tensioners.
• Install the new timing chain kit following the alignment marks exactly.
• Verify all cam and crank marks are aligned before moving on.

Step 6: Reassemble the front cover

• Install the new timing cover gasket and apply RTV sealant where required.
• Use the torque wrench and metric socket set to tighten the cover bolts to Torque to 12 Nm (106 ft-lbs) for crank-related fasteners only if specified by the service procedure; follow the exact Ford torque sequence for cover bolts.
• Install the crankshaft pulley and tighten the crank bolt to Torque to 90 Nm (66 ft-lbs) plus angle-tighten per Ford procedure.

Step 7: Reinstall accessories and refill fluids

• Reinstall the belt, brackets, fan shroud, and intake parts with the metric socket set.
• Refill engine oil and coolant with the correct specifications.
• Reconnect the negative battery cable.

---

✅ After Repair

• Start the engine and listen for abnormal chain noise.
• Check for oil or coolant leaks at the front cover.
• Clear any stored codes with a scan tool if needed.
• Recheck fluid levels after the first warm-up cycle.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,500 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $1,450-$2,600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-16 hours.

---
