🔧 2500 - Timing Chain Replacement

Your 6.4L HEMI does not use a timing belt—it uses a timing chain. So there’s no “timing belt replacement” service on your 2500; the equivalent repair is replacing the timing chain, guides, and tensioner.

Difficulty Level: Advanced | Estimated Time: 10-14 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot coolant can cause burns.
• ⚠️ Disconnect the negative battery cable before starting.
• ⚠️ Support the truck securely on jack stands before working underneath.
• ⚠️ The crankshaft bolt is extremely tight; use proper tools to avoid injury.
• ⚠️ Keep hands clear when rotating the engine by hand.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 1/2" drive torque wrench
• 3/8" drive torque wrench
• Socket set 8mm-21mm
• Wrench set 8mm-21mm
• Torx bit set T20-T50
• Pry bar set
• Trim clip removal tool
• Serpentine belt tool 1/2" drive
• Harmonic balancer puller (specialty)
• Crankshaft holding tool (specialty)
• Gasket scraper
• Plastic razor blades
• Brake cleaner spray
• RTV silicone applicator
• Funnel
• Shop towels
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain set (chain + guides + tensioner) - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Crankshaft pulley bolt - Qty: 1
• Engine coolant (HOAT compatible for your 2500) - Qty: 2-4 gallons
• Engine oil (per factory spec) - Qty: 7 quarts
• Oil filter - Qty: 1
• RTV silicone gasket maker - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Lift the front and support the frame with jack stands.
• Place a drain pan under the radiator and plan to change the oil after reassembly.
• Take photos as you remove brackets and bolts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain coolant and remove the upper fan/shroud area

• Place a drain pan under the radiator drain and open it by hand or with the appropriate pliers if needed.
• Remove intake ducting and any upper covers using an 8mm socket and trim clip removal tool.

Step 2: Remove the serpentine belt

• Rotate the belt tensioner with a serpentine belt tool 1/2" drive and slide the belt off.
• Set the belt aside and note the routing; use a paint marker if needed.

Step 3: Remove front accessory components blocking the timing cover

• Remove the alternator and brackets as required using a 13mm socket and 15mm socket.
• Unbolt the A/C compressor (do not disconnect lines) using a 13mm socket, then carefully support it to the side with a bungee or by resting it safely.
• Remove the water pump (if required for access on your configuration) using a 10mm socket and 13mm socket.

Step 4: Remove the crankshaft pulley (harmonic balancer)

• Install a crankshaft holding tool (specialty) to keep the crank from turning.
• Remove the crank bolt using a 1/2" drive breaker bar and correct-size socket.
• Use a harmonic balancer puller (specialty) to pull the balancer off straight.
• Do not pry on the balancer outer ring.

Step 5: Remove the timing cover

• Remove timing cover bolts using an 8mm socket and 10mm socket.
• Carefully separate the cover using a pry bar only at the cast pry points.
• Clean mating surfaces with a gasket scraper, plastic razor blades, and brake cleaner spray.

Step 6: Set cylinder #1 to Top Dead Center (TDC) on compression

• Rotate the crankshaft by hand using a socket and breaker bar on the crank snout until the timing marks align.
• Mark the chain-to-sprocket relationship with a paint marker as a backup reference.
• Turn only clockwise to keep tension correct.

Step 7: Remove the timing chain, guides, and tensioner

• Remove the tensioner bolts using the correct socket (typically 10mm socket).
• Remove the chain guides using the correct socket.
• Slip the timing chain off the cam and crank sprockets.

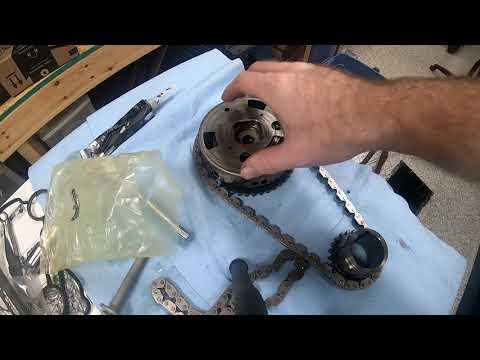

Step 8: Install the new chain, guides, and tensioner

• Install the new crank/cam sprocket alignment exactly as marked by the manufacturer (match the timing marks).
• Install the new chain, then install new guides and the new tensioner using the correct socket.
• Pull the tensioner pin (if equipped) to apply tension.
• For all fasteners removed here: Torque to OEM specification (service manual).

Step 9: Verify timing before closing it up

• Rotate the engine by hand two full turns using a breaker bar and socket.
• Re-check that the timing marks return to the proper alignment.
• If anything does not align: stop and correct it before reassembly.

Step 10: Reinstall the timing cover with a new seal and RTV

• Install a new front crank seal into the timing cover (use a suitable driver or a large flat socket and a rubber mallet if you have one; if not, press evenly by hand and tap gently).
• Apply RTV at the specified joints (typically where the timing cover meets the oil pan corners) using an RTV silicone applicator.
• Install the timing cover bolts using a torque wrench and the correct socket: Torque to OEM specification (service manual).

Step 11: Reinstall the harmonic balancer and accessories

• Install the balancer straight onto the crank snout.
• Install a new crankshaft pulley bolt and tighten using a torque wrench plus the required angle method if specified: Torque to OEM specification (service manual).
• Reinstall brackets, alternator, water pump (if removed), and A/C compressor using the correct sockets: Torque to OEM specification (service manual).

Step 12: Reinstall the belt and refill fluids

• Route the serpentine belt and release tension using the serpentine belt tool 1/2" drive.
• Refill coolant using a funnel.
• Change the oil and filter using the correct socket/wrench for the drain plug and an oil filter wrench if needed (add it if you have one).

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Start the engine and let it idle; check for oil/coolant leaks around the timing cover.
• Watch engine temperature and top off coolant after the thermostat opens.
• Test drive gently, then re-check coolant level and inspect for leaks again.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,500 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $1,100-$3,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-14 hours.

---
