🔧 Timing Belt - Repair Not Applicable

Your F-150 does not use a timing belt. The 3.5L turbo V6 uses timing chains instead, so there is no timing belt to replace. If you're chasing a noise, rattle, cam/crank correlation code, or oil leak at the front cover, the repair path is timing chain diagnosis or timing chain service.

Difficulty Level: Advanced | Estimated Time: 10-16 hours

---

⚠️ Safety & Precautions

• Timing chain service is engine-disassembly work and can cause severe engine damage if timing is set wrong.
• Disconnect the negative battery cable before starting.
• Keep the engine at top dead center only with the correct locking tools in place.
• Do not rotate the crankshaft or camshafts independently once timing components are removed.
• Use a support bar or engine support fixture if engine mount removal is required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• Torque wrench
• Breaker bar
• Harmonic balancer puller (specialty)
• Timing chain lock set (specialty)
• Camshaft holding tool (specialty)
• Crankshaft pulley holding tool (specialty)
• Floor jack (rated 3-ton minimum)
• Jack stands
• Drain pan
• Scraper
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain guides - Qty: 1 set
• Timing chain tensioners - Qty: 1 set
• Front cover gasket set - Qty: 1
• Crankshaft seal - Qty: 1
• Camshaft seals - Qty: 1 set
• Engine oil - Qty: 7 quarts
• Oil filter - Qty: 1
• Coolant - Qty: 1 refill

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Drain the engine oil and coolant before front cover removal.
• Have the engine locking tools ready before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Prepare the engine

• Use a drain pan to drain the engine oil and coolant.
• Use a socket set to remove the components blocking access to the front cover.
• Label every connector and bolt.

Step 2: Set engine timing position

• Use the timing chain lock set to position the engine at top dead center.
• Install the crankshaft and camshaft locking tools before removing anything else.

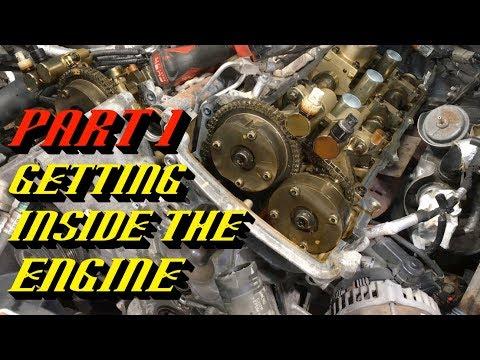

Step 3: Remove front cover and timing components

• Use the correct sockets and breaker bar to remove the front cover bolts.
• Remove the cover carefully to avoid damaging sealing surfaces.
• Remove the chain guides, tensioners, and chains.

Step 4: Install new timing components

• Install the new chains, guides, and tensioners from the timing chain kit.
• Verify all timing marks line up exactly before releasing the tensioners.
• Torque fasteners to the Ford service manual specification for each component.

Step 5: Reassemble and refill

• Install new seals and the front cover gasket set.
• Reinstall the front cover and removed components.
• Refill engine oil and coolant.
• Reconnect the battery.

---

✅ After Repair

• Start the engine and listen for abnormal chain noise.
• Check for oil or coolant leaks at the front cover.
• Scan for cam/crank codes and clear any stored faults.
• Recheck fluid levels after the first warm-up cycle.

---

💰 DIY vs Shop Cost

Shop Cost: $2,500-$4,500 (parts + labor)

DIY Cost: $450-$1,200 (parts only)

You Save: $1,300-$3,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 10-16 hours.

---
