Assumption: Your Terrain’s 2.4L uses a timing chain (not a timing belt). The steps below cover timing chain replacement.

---

🔧 Terrain - Timing Chain Replacement

Your Terrain’s 2.4L Ecotec uses a metal timing chain to keep the crankshaft and camshafts synchronized. If the chain, guides, or tensioner wear, you can get rattle on startup, poor running, or timing-related trouble codes.

Difficulty Level: Advanced | Estimated Time: 8-12 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot coolant/oil can burn you.
• ⚠️ Support the engine before removing the right-side engine mount.
• ⚠️ Disconnect the negative battery cable to prevent accidental starts.
• ⚠️ Keep fingers clear when releasing the chain tensioner (spring-loaded).
• ⚠️ Use jack stands; never rely on a floor jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Metric socket set (8mm-24mm)
• Metric wrench set (8mm-19mm)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-250 ft-lbs range)
• Extensions set (3", 6", 12")
• Swivel adapter (3/8" drive)
• Torx bit set (T20-T50)
• Flat trim tool
• Plastic scraper
• Harmonic balancer puller (specialty)
• Harmonic balancer installer (specialty)
• Engine support bar (specialty)
• Camshaft locking tool set for GM 2.4L (specialty)
• Crankshaft holding tool (specialty)
• Threadlocker (medium strength)
• Brake cleaner spray
• Shop towels
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Timing chain damper - Qty: 1
• Front cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Valve cover gasket - Qty: 1
• Water pump gasket - Qty: 1
• Crankshaft balancer bolt (single-use) - Qty: 1
• Engine coolant (DEX-COOL compatible) - Qty: 2-3 gallons premix
• Engine oil - Qty: 5 quarts
• Oil filter - Qty: 1
• RTV sealant (GM-spec equivalent) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Raise the front and support with jack stands under the proper lift points.
• Remove the right front wheel using a 19mm socket.
• Take photos before unplugging connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain coolant and oil

• Place a drain pan under the radiator drain and open it (use a flat trim tool if needed to access the splash shield fasteners).
• Drain engine oil by removing the drain plug with a 15mm socket, then remove the oil filter by hand.

Step 2: Remove the right-side splash shields and drive belt

• Remove the inner fender/splash shield fasteners using a Torx bit set (T20-T30) and metric socket set (8mm-10mm).
• Relieve belt tension using a breaker bar on the belt tensioner, then slip the belt off.
• Draw a belt routing sketch.

Step 3: Support the engine and remove the right engine mount

• Install an engine support bar (specialty) across the fenders and tension it slightly to hold engine weight. (This bar holds the engine from above.)
• Remove the right engine mount bolts using a metric socket set and ratchet.
• Torque to GM spec on reassembly (use a torque wrench).

Step 4: Remove components blocking the front cover

• Disconnect and move aside harnesses/clips using a flat trim tool.
• Remove the crankshaft pulley/harmonic balancer bolt using a 1/2" breaker bar and crankshaft holding tool (specialty). (This tool keeps the crank from turning.)
• Remove the harmonic balancer using a harmonic balancer puller (specialty).

Step 5: Remove the valve cover

• Unplug ignition coil connectors and remove coils using a 10mm socket.
• Remove valve cover bolts using a Torx bit set (commonly T30) and lift the cover off.
• Torque to GM spec on reassembly using a torque wrench.

Step 6: Set cylinder #1 to Top Dead Center (TDC) and lock the cams

• Rotate the engine clockwise using a socket and ratchet on the crankshaft until timing marks align at TDC.
• Install the camshaft locking tool set for GM 2.4L (specialty). (This tool holds the camshafts in the correct position.)
• Do not rotate the engine with locks installed.

Step 7: Remove the front timing cover

• Remove front cover bolts using a metric socket set and extensions.
• Gently separate the cover using a plastic scraper; avoid gouging aluminum surfaces.
• Clean mating surfaces with brake cleaner spray and shop towels.

Step 8: Remove the timing chain, guides, and tensioner

• Release/remove the chain tensioner using a metric socket set.
• Remove chain guides using a metric socket set.
• Remove the timing chain from the cam sprockets and crank sprocket carefully.

Step 9: Install the new timing chain kit and verify timing marks

• Install new guides and tensioner using a ratchet and metric socket set.

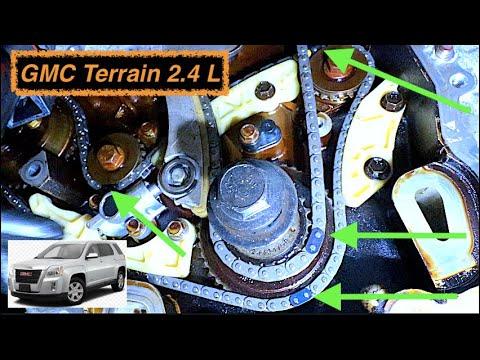

• Route the new chain and align colored links with the timing marks on the crank/cam sprockets (per the kit instructions).
• Apply threadlocker (medium strength) where required.
• Torque to GM spec for guide/tensioner fasteners using a torque wrench.

Step 10: Reinstall front cover with RTV and a new crank seal

• Install a new front crankshaft seal into the cover (use a harmonic balancer installer (specialty) or appropriate driver technique).
• Apply RTV sealant (GM-spec equivalent) to the specified joints (especially where the cover meets the oil pan and cylinder head corners).
• Install the front cover and tighten bolts evenly using a torque wrench: Torque to GM spec.

Step 11: Install harmonic balancer and new balancer bolt

• Press/install the balancer using a harmonic balancer installer (specialty) (do not hammer it on).
• Install a new balancer bolt and tighten using a torque wrench and crankshaft holding tool (specialty): Torque-to-yield per GM procedure.

Step 12: Reassemble, refill fluids, and do a careful first start

• Reinstall valve cover with a new gasket using a Torx bit set: Torque to GM spec.
• Reinstall engine mount using a torque wrench: Torque to GM spec.
• Reinstall belt and shields using a ratchet and Torx bit set.
• Refill oil (use a funnel) and install a new filter hand-tight.
• Refill coolant with DEX-COOL compatible coolant and bleed air per GM procedure.

---

✅ After Repair

• Start the engine and let it idle; listen for abnormal chain noise.
• Check for oil/coolant leaks around the front cover, valve cover, and drain plugs.
• Top off coolant after the thermostat opens and the heater blows hot.
• Road test gently, then recheck fluid levels once cooled.
• If a check engine light appears, scan for codes.

---

💰 DIY vs Shop Cost

Shop Cost: $1,400-$2,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $750-$2,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
