🔧 Sierra 1500 - Timing Chain Replacement

Your Sierra 1500 does not use a timing belt—it uses a timing chain. Replacing the chain means removing the front of the engine (belt drive, harmonic balancer, and timing cover) so you can replace the chain, guides, and tensioner and re-time the engine correctly.

Difficulty Level: Advanced | Estimated Time: 6-10 hours

---

⚠️ Safety & Precautions

• 🛑 Let the engine cool completely before draining coolant.
• 🛑 Disconnect the negative battery cable to prevent accidental starts.
• 🛑 Support the truck securely on jack stands if you lift it.
• 🛑 Keep fingers clear when rotating the crankshaft with a breaker bar.
• 🛑 Use a new crankshaft balancer bolt (it’s torque-to-yield on this engine).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30-250 ft-lbs range)
• Torque angle gauge (specialty)
• Socket set: 8mm, 10mm, 13mm, 15mm, 18mm
• 24mm socket
• 36mm fan clutch wrench (specialty)
• Serpentine belt tool (long handled)
• Harmonic balancer puller kit (specialty)
• Harmonic balancer installer tool (specialty)
• Flat trim tool
• Gasket scraper (plastic)
• RTV sealant applicator
• Shop rags
• Light source

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit (chain + guides + tensioner) - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Crankshaft balancer bolt (new) - Qty: 1
• Engine coolant (DEX-COOL compatible) - Qty: 2-3 gallons premix (or equivalent concentrate + distilled water)
• Engine oil - Qty: 6 quarts
• Oil filter - Qty: 1
• RTV silicone sealant (engine safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Place a drain pan under the radiator and drain the coolant (use a flat trim tool as needed to open access panels).
• If you lift the front, use a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake duct and fan/shroud

• Remove the intake duct clamps using an 8mm socket and set the duct aside.
• Remove the upper fan shroud fasteners using a 10mm socket.
• Remove the fan clutch from the water pump using a 36mm fan clutch wrench. Fan nut is reverse-thread on some setups—check before forcing.

Step 2: Remove the serpentine belt and front accessories (as needed for access)

• Unload belt tension and remove the belt using a serpentine belt tool.
• Remove any brackets/pulleys blocking the timing cover using 13mm and 15mm sockets.
• If you remove the water pump, remove bolts with a 10mm socket and set the pump aside. Torque to 22 Nm (16 ft-lbs) on reinstall.

Step 3: Remove the harmonic balancer

• Remove the crankshaft balancer bolt using a 24mm socket and a 1/2" breaker bar.
• Pull the balancer using a harmonic balancer puller kit (specialty). (The harmonic balancer is the heavy pulley on the crankshaft that damps vibration.)

Step 4: Remove the timing cover

• Remove timing cover bolts using an 8mm socket and 10mm socket (note locations/lengths).
• Gently separate the cover using a flat trim tool. Do not gouge the sealing surfaces.
• Remove the old front crank seal from the cover (use a flat trim tool carefully) and clean the cover.
• On reinstall: timing cover bolts are typically Torque to 10 Nm (89 in-lbs) for small bolts and Torque to 18 Nm (13 ft-lbs) for larger bolts.

Step 5: Set the engine to timing position (Top Dead Center)

• Rotate the crankshaft clockwise using a 24mm socket and breaker bar until the timing marks line up (cam and crank sprocket marks aligned).
• Do not rotate backwards to “catch” the mark—go around again if you pass it.

Step 6: Remove the timing chain, guides, and tensioner

• Remove the tensioner bolts using a 10mm socket and remove the tensioner.
• Remove the chain guides using a 10mm socket.
• Remove the cam sprocket bolt using an 18mm socket and slide the sprocket/chain off together.
• On reinstall: cam sprocket bolt is commonly Torque to 35 Nm (26 ft-lbs). Hold the crank steady while tightening.

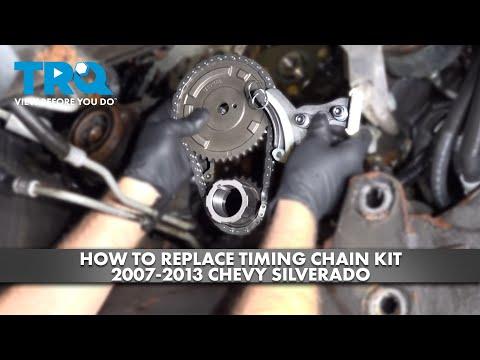

Step 7: Install the new timing chain set and verify timing marks

• Install the new crank sprocket/chain/cam sprocket as a set (from your kit), aligning the timing marks exactly.
• Install new guides using a 10mm socket. Torque to 10 Nm (89 in-lbs).
• Install the new tensioner using a 10mm socket. Torque to 10 Nm (89 in-lbs).
• Rotate the crankshaft clockwise two full turns using a 24mm socket, then re-check that timing marks return to the correct alignment.

Step 8: Reinstall timing cover with new seal and correct sealing

• Clean all gasket surfaces using a plastic gasket scraper and shop rags.
• Install a new timing cover gasket.
• Apply a small dab of RTV silicone sealant at the timing cover-to-oil pan corner joints (common leak points).
• Install the timing cover and hand-start all bolts, then torque: Torque to 10 Nm (89 in-lbs) (small) and Torque to 18 Nm (13 ft-lbs) (large).
• Install the new front crank seal into the cover (use your harmonic balancer installer tool carefully as a straight press if needed).

Step 9: Reinstall the harmonic balancer and NEW crank bolt

• Press the balancer on using a harmonic balancer installer tool (specialty). Do not hammer it on.
• Install a new crankshaft balancer bolt.
• Tighten using a torque wrench and torque angle gauge (a torque angle gauge measures the additional degrees of rotation after initial torque): Torque to 240 Nm (177 ft-lbs) + 140°.

Step 10: Reassemble accessories, belt, fan, and intake

• Reinstall any removed brackets/pulleys using 13mm and 15mm sockets and tighten securely.
• Reinstall the water pump if removed using a 10mm socket. Torque to 22 Nm (16 ft-lbs).
• Reinstall the serpentine belt using a serpentine belt tool.
• Reinstall the fan clutch using a 36mm fan clutch wrench, then reinstall the fan shroud using a 10mm socket.
• Reinstall the intake duct using an 8mm socket.

Step 11: Refill fluids and reconnect the battery

• Refill the cooling system with DEX-COOL compatible coolant.
• If coolant or debris may have entered the crankcase, change the oil and filter using a drain pan, then refill with the correct oil for your Sierra 1500.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• 🔎 Start the engine and listen for abnormal rattling from the timing cover area.
• 🔎 Check for coolant leaks at the timing cover corners, water pump, and hose connections.
• 🔎 Let it reach operating temperature, then top off coolant after it cools down.
• 🔎 Test drive gently, then re-check fluid levels and look for leaks again.

---

💰 DIY vs Shop Cost

Shop Cost: ₹35,000-₹80,000 (parts + labor)

DIY Cost: ₹10,000-₹30,000 (parts only)

You Save: ₹25,000-₹50,000 by doing it yourself!

Local labor rates vary; this job is typically 6-10 hours of shop time.

---
