🔧 Timing Chain - Replacement

Your Sierra does not use a timing belt. The 4.8L V8 uses a timing chain, so the repair is a timing chain and front cover service instead of a belt job. This is a major teardown with coolant, oil, and front engine accessory removal, so careful timing alignment is critical.

Difficulty Level: Advanced | Estimated Time: 8-12 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting.
• Work on a cool engine only; coolant and exhaust parts can burn you.
• Support the vehicle securely with jack stands if you need underbody access.
• Use caution around the fan, pulleys, and serpentine belt tensioner.
• Oil and coolant will be drained, so keep drains and rags ready.
• Timing chain alignment must be exact or the engine can be damaged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• 1/2-inch drive ratchet
• Torque wrench
• Breaker bar
• Harmonic balancer puller (specialty)
• Harmonic balancer installer (specialty)
• Serpentine belt tool
• Floor jack (rated 3-ton minimum)
• Jack stands
• Drain pan
• Scraper
• Plastic gasket scraper
• Pick set
• Engine support bar or jack with wood block
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain set - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Water pump gasket - Qty: 1
• Water pump - Qty: 1
• Serpentine belt - Qty: 1
• Engine oil - Qty: 1 oil change fill
• Oil filter - Qty: 1
• Coolant - Qty: 1 full refill
• RTV sealant - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Disconnect the negative battery cable.
• Drain the coolant and engine oil before removing the front cover.
• Keep the engine at top dead center before disassembly. Mark everything first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain fluids

• Use a drain pan to drain the engine oil and coolant.
• Remove the oil filter with an oil filter wrench if needed.

Step 2: Remove drive accessories

• Use a serpentine belt tool to release tension and remove the belt.
• Use the metric socket set to remove the fan shroud, fan, and accessory brackets as needed for access.

Step 3: Remove the water pump

• Use the metric socket set to remove the water pump bolts.
• Pull the water pump away from the engine and remove the gasket.

Step 4: Remove the harmonic balancer

• Use a breaker bar to remove the crankshaft bolt.
• Use a harmonic balancer puller to remove the balancer from the crankshaft.
• Torque on reassembly: follow OEM procedure for crank bolt tightening.

Step 5: Remove the timing cover

• Use the metric socket set to remove the front cover bolts.
• Use a plastic gasket scraper to carefully break the seal and remove the cover.
• Clean the gasket surfaces completely.

Step 6: Set engine timing

• Rotate the engine by hand with a breaker bar until timing marks are aligned.
• Pro tip: Do not spin the engine backward.

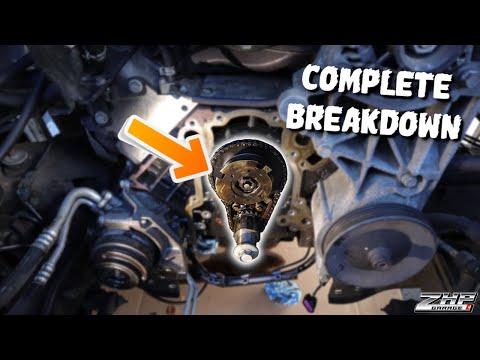

Step 7: Replace the timing chain set

• Use the metric socket set to remove the timing chain guides and tensioner.
• Remove the old chain and sprockets.
• Install the new sprockets and chain with the timing marks matched exactly.
• Torque to OEM specification for chain guides, tensioner, and sprockets.

Step 8: Reinstall the front cover

• Install a new front crankshaft seal in the cover.
• Apply RTV sealant where required by the gasket set.
• Reinstall the timing cover and tighten bolts in sequence.

Step 9: Reinstall balancer, pump, and accessories

• Use a harmonic balancer installer to press the balancer on.
• Reinstall the water pump with a new gasket.
• Reinstall the serpentine belt and accessory components.

Step 10: Refill fluids and test

• Refill engine oil and coolant.
• Reconnect the battery.
• Start the engine and check for leaks, noise, and proper idle.

---

✅ After Repair

• Verify oil pressure comes up quickly after start.
• Check coolant level again after warm-up and top off if needed.
• Listen for chain rattle, belt noise, or coolant leaks.
• Scan for diagnostic trouble codes if the check engine light comes on.

---

💰 DIY vs Shop Cost

Shop Cost: $1,500-$3,000 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $1,250-$2,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
