🔧 Tahoe - Timing Chain Replacement

Your Tahoe’s 5.3L V8 does not use a timing belt—it uses a timing chain. Replacing the chain means removing the front of the engine (serpentine belt drive, water pump, timing cover, and the crank pulley/harmonic balancer) so you can install a new chain and guides/tensioner.

Difficulty Level: Advanced | Estimated Time: 6-10 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine; hot coolant can burn.
• ⚠️ Disconnect the negative battery cable to prevent accidental cranking.
• ⚠️ Support the truck with jack stands; never rely on a jack alone.
• ⚠️ Keep fingers clear when rotating the engine by hand.
• ⚠️ If the chain timing is set wrong, the engine may not run and can be damaged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-250 ft-lbs range)
• Torque angle gauge (specialty)
• Socket set (8mm-24mm)
• Wrench set (8mm-24mm)
• 15mm socket
• 10mm socket
• 13mm socket
• 18mm socket
• 24mm socket
• Flat trim tool
• Pry bar
• Harmonic balancer puller (specialty)
• Harmonic balancer installer (specialty)
• Gasket scraper
• Brake cleaner spray
• RTV silicone sealant
• Shop rags
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain set (chain, cam gear, crank gear) - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Water pump gasket set - Qty: 1
• Crankshaft balancer bolt (one-time-use) - Qty: 1
• Engine coolant (Dex-Cool compatible) - Qty: 2-3 gallons premix
• Engine oil (5W-30) - Qty: 6 quarts
• Oil filter - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Place a drain pan under the radiator and drain coolant (open the radiator petcock with hand/pliers as needed).
• Take photos as you remove parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake duct and fan shroud area

• Loosen the intake duct clamps using an 8mm socket and remove the duct.
• Release any shroud clips using a flat trim tool and move the shroud as needed for clearance.

Step 2: Remove the serpentine belt

• Rotate the belt tensioner with a 15mm socket and slide the belt off.
• Draw the belt routing first.

Step 3: Drain and remove the water pump

• Disconnect the water pump hoses using pliers and a drain pan to catch coolant.
• Remove the water pump bolts using a 10mm socket.
• Remove the pump and discard the old gaskets.
• During reassembly: Torque water pump bolts to 30 Nm (22 ft-lbs).

Step 4: Remove the crank pulley/harmonic balancer

• Remove the crank bolt using a 24mm socket and a 1/2" drive breaker bar.
• Install the harmonic balancer puller (specialty) and pull the balancer off.
• Harmonic balancer = the large crank pulley.

Step 5: Remove the timing cover

• Remove timing cover bolts using a 10mm socket.
• Gently separate the cover using a pry bar (light pressure only).
• Clean gasket surfaces with a gasket scraper, then wipe with brake cleaner spray.
• During reassembly: Torque timing cover bolts to 18 Nm (13 ft-lbs).

Step 6: Set the engine to Top Dead Center (TDC)

• Rotate the crankshaft clockwise using a 24mm socket and ratchet.
• Align the timing marks: the crank gear mark should point straight up, and the cam gear mark should point straight down (they “face” each other).
• If marks don’t line up, rotate one more turn.

Step 7: Remove the timing chain, guides, and tensioner

• Remove the chain tensioner bolts using a 10mm socket, then remove the tensioner.
• Remove the chain guides using a 10mm socket.
• Remove the cam gear bolt using a breaker bar and appropriate socket, then remove the chain and gears together.

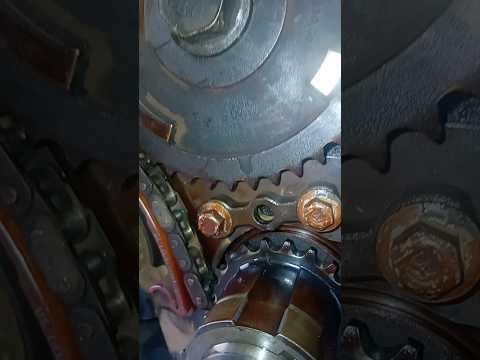

Step 8: Install the new chain and gears (timing alignment is critical)

• Install the new crank gear (if included) fully seated by hand.
• Position the new chain so its colored links align with the timing marks on the crank and cam gears (if your kit includes marked links).
• Install the cam gear and chain together, keeping the timing marks aligned.
• Install the cam gear bolt and tighten with a torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 9: Install new guides and tensioner

• Install the new guides using a 10mm socket.
• Install the new tensioner using a 10mm socket.
• Torque guide/tensioner bolts to 10 Nm (89 in-lbs).
• Pull the tensioner retaining pin (if equipped) to apply tension.

Step 10: Verify timing by rotating the engine by hand

• Rotate the crankshaft clockwise two full turns using a 24mm socket.
• Re-check that the timing marks realign correctly.
• If marks don’t return, stop and re-time it.

Step 11: Reinstall timing cover with new seal

• Install a new front crank seal into the timing cover (tap evenly using a suitable driver and a rubber mallet if needed).
• Apply small dabs of RTV silicone sealant at the oil pan to timing cover corners.
• Install the new timing cover gasket and reinstall the cover using a 10mm socket.
• Torque timing cover bolts to 18 Nm (13 ft-lbs).

Step 12: Reinstall harmonic balancer with a new crank bolt

• Press the balancer on using a harmonic balancer installer (specialty) (do not hammer it on).
• Install a new crank bolt and tighten using a torque wrench and torque angle gauge (specialty):
• Torque to 240 Nm (177 ft-lbs), then turn an additional 140 degrees.

Step 13: Reinstall water pump and belt drive

• Install the water pump with new gaskets and tighten bolts with a torque wrench: Torque to 30 Nm (22 ft-lbs).
• Reinstall the serpentine belt using a 15mm socket on the tensioner.
• Reinstall intake ducting using an 8mm socket.

Step 14: Refill fluids

• Refill coolant using a funnel.
• If oil was contaminated or drained, replace the oil and filter.

---

✅ After Repair

• Reconnect the battery using a 10mm socket.
• Start the engine and listen for abnormal rattling at the front cover.
• Check for coolant leaks at the water pump and timing cover area.
• Bring to operating temperature and top off coolant after it cools.
• Recheck fluid levels after first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,500 (parts + labor)

DIY Cost: $250-$600 (parts only)

You Save: $600-$1,900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 6-10 hours.

---
