🔧 Escape - Timing Belt Replacement

Your Escape with the 2.5L naturally aspirated engine does not use a timing belt. It uses an internal timing chain, which is designed to last much longer and is not a normal maintenance replacement item.

If you are hearing rattling, have cam/crank correlation codes, or suspect timing issues, the correct repair is timing chain inspection or replacement, not timing belt replacement.

Difficulty Level: Advanced | Estimated Time: 8-12 hours

---

⚠️ Safety & Precautions

• ⚠️ This is an advanced engine repair. Incorrect timing can cause poor running, no-start, or engine damage.
• ⚠️ Let the engine cool completely before working near coolant, oil, or exhaust components.
• ⚠️ Disconnect the negative battery cable before removing engine components.
• ⚠️ Support the engine properly before removing any engine mount brackets.
• ⚠️ A floor jack lifts the vehicle; jack stands hold it safely. Never work under a vehicle supported only by a jack.
• ⚠️ The crankshaft pulley bolt is very tight and may require a high-torque impact wrench or proper holding tool.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set 8mm-21mm
• Metric wrench set 8mm-19mm
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench 20-250 Nm
• 3/8-inch drive torque wrench 5-80 Nm
• Crankshaft pulley holding tool (specialty)
• Harmonic balancer puller (specialty)
• Engine support bar (specialty)
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Trim clip removal tool
• Flathead screwdriver
• Pick tool set
• Plastic scraper
• Drain pan 10-quart minimum
• Funnel
• Paint marker
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Front crankshaft seal - Qty: 1
• Timing cover gasket/sealant - Qty: 1
• Valve cover gasket - Qty: 1
• Crankshaft pulley bolt - Qty: 1
• Engine oil 5W-20 synthetic blend or full synthetic - Qty: 5 quarts
• Oil filter - Qty: 1
• Engine coolant compatible with Ford specification - Qty: As needed

---

📋 Before You Begin

• Park your Escape on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels. Wheel chocks are wedges that stop the vehicle from rolling.
• Disconnect the negative battery cable using a 10mm socket.
• Raise the front of your Escape with a floor jack rated 2-ton minimum and support it with jack stands rated 2-ton minimum.
• Remove the right front wheel area splash shield for access.
• Take pictures as you go. This helps a lot when reinstalling brackets and hoses.
• Label bolts by location.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Verify This Is a Timing Chain Job

• Your Escape does not have a serviceable timing belt.
• If you are replacing the “timing belt” because of mileage only, stop here. No belt replacement is required.
• If you have chain rattle, timing codes, oil sludge, or a failed tensioner, continue with timing chain service.

Step 2: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Move the cable away from the battery post so it cannot touch accidentally.

Step 3: Raise and Secure the Vehicle

• Use a floor jack rated 2-ton minimum at the front jacking point.
• Place jack stands rated 2-ton minimum under the proper support points.
• Gently lower your Escape onto the jack stands.
• Keep the floor jack lightly touching as a backup, but do not rely on it alone.

Step 4: Remove the Right Front Wheel and Splash Shield

• Use a 21mm socket to remove the right front wheel lug nuts.
• Remove the wheel.
• Use a trim clip removal tool and 8mm socket to remove the inner splash shield fasteners.
• Set the shield aside.
• When reinstalling the wheel later, Torque lug nuts to 135 Nm (100 ft-lbs).

Step 5: Drain Engine Oil and Coolant as Needed

• Place a drain pan 10-quart minimum under the engine.
• Use the correct size socket from your metric socket set 8mm-21mm to remove the oil drain plug.
• Drain the oil completely.
• Use a funnel and drain pan if coolant hoses or passages must be opened during access.
• Reinstall the oil drain plug and Torque to 27 Nm (20 ft-lbs).

Step 6: Remove the Accessory Drive Belt

• Use the correct wrench from your metric wrench set 8mm-19mm on the belt tensioner.
• Rotate the tensioner to release belt tension.
• Slip the belt off the pulleys.
• Draw a belt routing picture before removal.
• Photos prevent reassembly mistakes.

Step 7: Support the Engine

• Install an engine support bar across the upper body support points.
• An engine support bar holds the engine from above while the mount is removed.
• Apply light upward tension only. Do not lift the engine hard.

Step 8: Remove the Right Engine Mount Area Components

• Use sockets from your metric socket set 8mm-21mm to remove brackets blocking the timing cover.
• Use a paint marker to mark bracket positions before removal.
• Remove the engine mount fasteners only after the engine is supported.
• On reassembly, tighten mount fasteners to the correct service specification for their exact location.

Step 9: Remove the Crankshaft Pulley

• Use a crankshaft pulley holding tool to keep the pulley from turning.
• Use a 1/2-inch drive breaker bar and correct socket from your metric socket set 8mm-21mm to loosen the crankshaft pulley bolt.
• Use a harmonic balancer puller to remove the pulley if it does not slide off by hand.
• A harmonic balancer puller removes the crank pulley evenly without prying.
• Discard the old crankshaft pulley bolt if it is torque-to-yield.

Step 10: Remove the Valve Cover

• Use an 8mm socket or 10mm socket as needed to remove ignition coil and valve cover fasteners.
• Use a flathead screwdriver gently only where safe to release clips.
• Lift the valve cover straight up.
• Remove the old valve cover gasket.
• Use a plastic scraper to clean sealing surfaces without gouging aluminum.

Step 11: Remove the Timing Cover

• Use sockets from your metric socket set 8mm-21mm to remove all timing cover bolts.
• Track bolt length and location carefully.
• Use a plastic scraper to separate the cover carefully at approved pry points only.
• Do not force a screwdriver between sealing surfaces.
• Aluminum sealing faces damage easily.

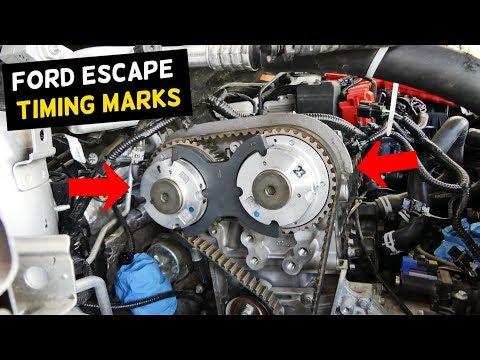

Step 12: Set Engine to Top Dead Center

• Use a socket and 1/2-inch drive breaker bar on the crankshaft bolt location to rotate the engine clockwise only.
• Top Dead Center means cylinder 1 is at the top of its compression stroke.
• Align the timing marks on the crankshaft and camshaft sprockets according to the service marks.
• Use a paint marker to add your own reference marks before removing the chain.

Step 13: Remove the Timing Chain Tensioner and Guides

• Use the correct socket from your metric socket set 8mm-21mm to remove the timing chain tensioner bolts.
• A tensioner keeps the chain tight while the engine runs.
• Remove the chain guides using the correct socket.
• Keep fingers away from the chain path when releasing tension.

Step 14: Remove the Timing Chain

• Slide the chain off the camshaft and crankshaft sprockets.
• Do not rotate the crankshaft or camshafts with the chain removed.
• If anything moves, stop and realign timing marks before continuing.

Step 15: Install the New Timing Chain

• Match the colored chain links to the timing marks on the sprockets.
• Use your paint marker references to double-check alignment.
• Install the new timing chain guides using the correct socket.
• Install the new timing chain tensioner using the correct socket.
• Tighten guide and tensioner fasteners to the proper service specification for their exact fastener size and location.

Step 16: Rotate the Engine by Hand

• Use a socket and 1/2-inch drive breaker bar to rotate the crankshaft clockwise two full turns.
• Stop immediately if you feel hard resistance.
• Recheck all timing marks after two rotations.
• The marks must line up correctly before reassembly.

Step 17: Reseal and Install the Timing Cover

• Use a plastic scraper and shop towels to clean old sealant from the cover and engine block.
• Install the new front crankshaft seal into the timing cover.
• Apply the correct timing cover sealant where required.
• Install the timing cover carefully without smearing the sealant.
• Use a 3/8-inch drive torque wrench 5-80 Nm to tighten smaller timing cover bolts evenly.
• Tighten timing cover fasteners to the correct service specification for their exact location.

Step 18: Reinstall the Crankshaft Pulley

• Slide the crankshaft pulley into position by hand.
• Install a new crankshaft pulley bolt.
• Use the crankshaft pulley holding tool and 1/2-inch drive torque wrench 20-250 Nm to tighten the bolt.
• Final torque depends on the exact bolt design. Use the service specification supplied with the replacement bolt.

Step 19: Reinstall the Valve Cover

• Install the new valve cover gasket into the valve cover groove.
• Set the valve cover straight down onto the cylinder head.
• Use an 8mm socket or 10mm socket to install the bolts by hand first.
• Use a 3/8-inch drive torque wrench 5-80 Nm and tighten evenly in stages.
• Do not overtighten. Valve cover bolts are small and can break.

Step 20: Reinstall Engine Mount, Belt, Shield, and Wheel

• Use sockets from your metric socket set 8mm-21mm to reinstall the engine mount and brackets.
• Remove the engine support bar only after all mount fasteners are secure.
• Use the correct wrench from your metric wrench set 8mm-19mm to rotate the belt tensioner and reinstall the accessory belt.
• Use a trim clip removal tool and 8mm socket to reinstall the splash shield.
• Install the wheel using a 21mm socket.
• Lower your Escape and Torque lug nuts to 135 Nm (100 ft-lbs).

Step 21: Refill Oil and Coolant

• Install a new oil filter by hand.
• Use a funnel to add 5W-20 engine oil.
• Add coolant if any was drained.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• ✅ Before starting, crank the engine only after confirming all tools are removed from the engine bay.
• ✅ Start the engine and listen for abnormal rattling, knocking, or belt noise.
• ✅ Let the engine idle and check for oil leaks around the timing cover, valve cover, oil filter, and drain plug.
• ✅ Watch the temperature gauge and verify the cooling fans operate normally.
• ✅ Recheck oil level after the engine has run, then top off if needed.
• ✅ If the check engine light comes on, scan for codes before driving far.
• ✅ Test drive gently for 10-15 minutes, then inspect again for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 USD equivalent (parts + labor)

DIY Cost: $250-$650 USD equivalent (parts only)

You Save: $950-$1,550 by doing it yourself!

Shop labor rates vary by location. This repair takes a shop approximately 8-12 hours.

---
