🔧 Passport - Starter Motor Replacement

On your Passport, the starter sits in the “V” of the engine under the intake manifold, so replacing it usually means removing the intake manifold to reach the starter. The job is very doable at home, but it’s detail-heavy: you’ll label hoses/connectors, keep dirt out of the intake ports, and replace gaskets during reassembly.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the starter wiring to prevent short circuits.
• ⚠️ Let the engine cool fully; you’ll be working near hot coolant passages and the rear cylinder bank.
• ⚠️ Keep debris out of the intake ports—once the intake manifold is off, cover the ports immediately.
• ⚠️ If you must raise the vehicle, support it with jack stands on solid, level ground.
• ⚠️ Fuel vapor risk: work in a ventilated area and keep ignition sources away.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• 3/8" drive ratchet
• 1/4" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• 1/4" drive torque wrench (in-lb range)
• Socket extensions (3", 6", 12")
• Universal joint adapter
• Metric combination wrench set 10mm-19mm
• Phillips screwdriver
• Flat-blade screwdriver
• Hose clamp pliers
• Trim clip removal tool
• Needle-nose pliers
• Pick set
• Magnetic pickup tool
• Shop rags
• Masking tape
• Paint marker
• Brake cleaner
• Dielectric grease

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Upper plenum gasket set (if separate from manifold set) - Qty: 1
• PCV hose clamps (optional, if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and take a few clear photos of the engine bay for reassembly reference.
• Label every connector and hose you remove using masking tape and a paint marker.
• Disconnect the battery: use a 10mm socket to remove the negative terminal first, then isolate it so it can’t spring back.
• Bag and label bolts by step.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake duct

• Pull up/remove the engine cover (it’s held by grommets on most setups).
• Loosen the air intake duct clamps using a flat-blade screwdriver or the appropriate 8mm socket.
• Disconnect any attached breather/PCV hoses using hose clamp pliers, then remove the ducting.

Step 2: Disconnect the throttle body connections

• Unplug the throttle body electrical connector by releasing the lock tab by hand (use a pick set gently if needed).
• Remove the throttle body mounting bolts with a 10mm socket and set the throttle body aside carefully.
• Remove and discard the old throttle body gasket; you’ll install a new one later.
• Don’t pry on the throttle plate.

Step 3: Remove the upper intake manifold/plenum

• Disconnect the vacuum/EVAP/PCV hoses from the intake (use hose clamp pliers and needle-nose pliers as needed).
• Unplug any sensors/solenoids attached to the upper intake, using a pick set to lift lock tabs if stubborn.
• Remove the upper intake fasteners using a 10mm socket with extensions and a universal joint adapter as needed.
• Lift the upper intake straight up and out. If it feels stuck, re-check for hidden bolts/hoses—don’t force it.
• Cover the exposed intake ports immediately with clean shop rags.

Step 4: Access the starter in the engine valley

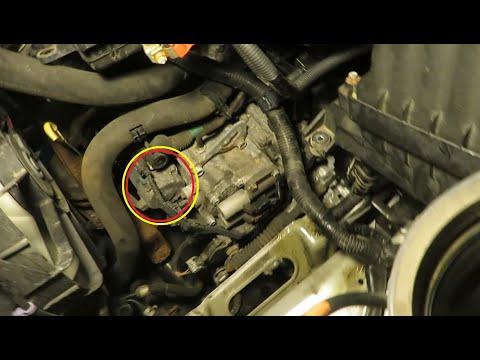

• Locate the starter motor and the heavy battery cable (B+) attached to it.
• Remove the starter electrical terminal cover (if equipped) by hand or with a flat-blade screwdriver.
• Remove the starter B+ cable nut using a 12mm socket (size may vary slightly), then move the cable aside.
• Unplug the starter solenoid signal connector by hand.
• Keep hardware out of the engine valley.

Step 5: Remove the starter motor

• Remove the starter mounting bolts using a 14mm socket with extensions.
• Lift the starter out carefully; use a magnetic pickup tool if a bolt tries to drop.

Step 6: Install the new starter motor

• Compare the old and new starter (mounting ears, connector, nose length) before installing.
• Position the new starter and hand-thread the mounting bolts first to avoid cross-threading.
• Tighten the starter mounting bolts using a 3/8" drive torque wrench and the correct 14mm socket.
• Torque to OEM specification (use Honda service information for your Passport).
• Reconnect the solenoid signal connector by hand until it clicks.
• Reconnect the B+ cable and tighten the nut using a 12mm socket.
• Torque to OEM specification (use Honda service information for your Passport).
• Reinstall the terminal cover (if equipped).

Step 7: Reinstall the intake manifold/plenum with new gaskets

• Remove the shop rags from the intake ports and verify nothing fell into the ports.
• Clean the gasket mating surfaces using shop rags and a small amount of brake cleaner (spray on rag, not directly into ports).
• Install new intake gaskets, then set the upper intake back in place.
• Hand-start all intake fasteners, then tighten in an even pattern using a 10mm socket.
• Final-tighten using a torque wrench.
• Torque to OEM specification (use Honda service information for your Passport).

Step 8: Reinstall the throttle body and intake duct

• Install a new throttle body gasket, then reinstall the throttle body bolts using a 10mm socket.
• Torque to OEM specification (use Honda service information for your Passport).
• Reconnect the throttle body electrical connector by hand until it clicks.
• Reinstall the intake ducting and tighten the clamps using an 8mm socket or flat-blade screwdriver.
• Reconnect all hoses and electrical connectors you labeled.

Step 9: Reconnect the battery

• Reconnect the positive terminal first (if removed), then the negative terminal using a 10mm socket.
• Torque to OEM specification (use Honda service information for your Passport).
• Add a small amount of dielectric grease to the terminal surfaces if desired.

---

✅ After Repair

• Start the engine and listen: the starter should crank smoothly with no grinding.
• Check for warning lights and verify the idle is normal.
• Inspect for vacuum leaks: listen for hissing and confirm all hoses are fully seated.
• Recheck the starter B+ cable is tight and the boot/cover is installed.
• If it cranks slow, recheck battery terminals.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $520-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
