🔧 CX-50 - Thermostat Replacement

The thermostat controls coolant flow so your CX-50 warms up correctly and doesn’t overheat. Replacing it means draining some coolant, removing the thermostat housing, swapping the thermostat/seal, then refilling and bleeding air out of the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cold engine; hot coolant can cause severe burns.
• ⚠️ Release pressure slowly when opening the cooling system cap.
• ⚠️ Coolant is toxic; keep away from kids/pets and clean spills immediately.
• ⚠️ Support the SUV with jack stands before going underneath.
• ⚠️ Do not mix coolant types; use Mazda FL-22 equivalent only.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Socket set: 8mm, 10mm, 12mm sockets
• 3/8" ratchet
• 3/8" torque wrench (10–50 Nm range)
• Extension set (3" and 6")
• Flat-blade screwdriver
• Hose clamp pliers
• Picks/O-ring pick set
• Trim clip removal tool
• Funnel
• Spill-free funnel kit (specialty)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal/O-ring - Qty: 1
• Engine coolant (Mazda FL-22 equivalent, premixed) - Qty: 2-3 gallons
• Hose clamps (coolant hose, if originals are weak) - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine cool completely (minimum a few hours).
• Set the HVAC to full heat and the fan to low before shutdown; this helps the heater circuit be ready to purge air during bleeding.
• Raise the front safely using a floor jack and support with jack stands under the proper lift points.
• Take photos before disconnecting hoses.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve cooling system pressure

• Open the hood and locate the coolant cap (pressurized cap on the coolant reservoir).
• Use gloves and slowly loosen the cap to the first stop to vent pressure, then remove it fully.

Step 2: Remove the lower engine cover (if equipped)

• Use a trim clip removal tool to pop the plastic clips.
• Use an 8mm socket to remove any small bolts, then set the cover aside.

Step 3: Drain coolant to below thermostat level

• Place a drain pan (at least 10-quart) under the radiator drain area.
• Use a flat-blade screwdriver (or 10mm socket, depending on drain style) to open the radiator drain and drain about 1–2 gallons.
• Close the drain when the flow slows. Don’t fully drain unless you want a full coolant service.

Step 4: Remove the air intake ducting (access)

• Use an 8mm socket to loosen the intake hose clamp(s).
• Disconnect any small breather hose(s) using hose clamp pliers.
• Lift the intake duct/air box snorkel out for working room.

Step 5: Locate the thermostat housing and prepare hoses

• The thermostat sits in the coolant outlet/thermostat housing at the front/side of the engine where the upper radiator hose connects.
• Place shop towels underneath to catch spills.
• Use hose clamp pliers to slide the hose clamp back, then twist and pull the hose off the housing.

Step 6: Remove the thermostat housing

• Use a 10mm socket with a 3/8" ratchet and extension to remove the thermostat housing bolts.
• Gently separate the housing (use a flat-blade screwdriver carefully if it’s stuck—do not gouge the mating surface).

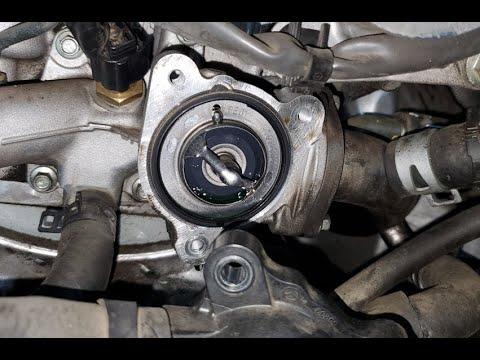

• Remove the thermostat and the old seal/O-ring.

Step 7: Install the new thermostat and seal

• Clean the mating surfaces using shop towels (no deep scraping).
• Install the new seal/O-ring (use an O-ring pick only to position it, not to cut it).
• Install the thermostat in the same orientation as removed (jiggle valve/bleed feature positioned as designed).

Step 8: Reinstall thermostat housing and torque bolts

• Start all bolts by hand to avoid cross-threading.
• Use a 10mm socket to snug evenly in a crisscross pattern.
• Use a 3/8" torque wrench: Torque to 10 Nm (89 in-lbs).

Step 9: Reconnect coolant hose(s)

• Push the hose fully onto the housing until it seats against the stop.
• Use hose clamp pliers to move the clamp back to its original position.

Step 10: Reinstall intake ducting and lower cover

• Reinstall the intake ducting and tighten clamps using an 8mm socket.
• Reinstall the lower engine cover using the trim clip removal tool and 8mm socket.

Step 11: Refill coolant and bleed air

• Install a spill-free funnel kit (specialty) on the coolant reservoir/cap opening.
• Slowly add Mazda FL-22 equivalent, premixed coolant until the level stabilizes.
• Start the engine and let it idle; keep the funnel level above the reservoir.
• Turn the heat to HOT and keep the fan on low.
• As the engine warms, watch for air bubbles; add coolant as the level drops.
• Once you get steady heat from the vents and bubbles slow down, hold idle around 1,500 rpm for 30–60 seconds, then return to idle.
• Shut the engine off, let it cool, then set the coolant level to the FULL mark and reinstall the cap.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connections with the engine running.
• Confirm the temperature gauge behaves normally and the heater blows hot.
• After the first full cool-down (later that day or next morning), recheck coolant level and top off if needed.
• If you get an overheating warning or no cabin heat, stop and re-bleed—air is still trapped.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
