🔧 Altima - Thermostat Replacement

Replacing the thermostat on your Altima involves draining some coolant, removing the thermostat housing, installing a new thermostat and seal, then refilling and bleeding the cooling system. The thermostat controls engine temperature by opening and closing coolant flow, so a stuck thermostat can cause overheating, poor heater performance, or incorrect engine temperature readings.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on the cooling system when the engine is completely cold. Hot coolant can cause severe burns.
• ⚠️ Do not open the coolant reservoir cap while the engine is hot or pressurized.
• ⚠️ Keep coolant away from pets and children. It is toxic and tastes sweet.
• ⚠️ Support your Altima securely with jack stands if you raise the front. Never rely on a floor jack alone.
• ⚠️ Disconnecting the battery is not normally required for this repair, but keep tools away from the battery terminals.
• ⚠️ AWD models have less room near the lower engine area, so move slowly and avoid forcing hoses or plastic fittings.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• Torque wrench 5-25 Nm
• Flat-blade screwdriver
• Hose clamp pliers
• Plastic trim clip remover
• Drain pan 2-gallon minimum
• Coolant funnel kit with radiator adapter
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine coolant thermostat - Qty: 1
• Thermostat housing seal/O-ring - Qty: 1
• Nissan-compatible blue long-life coolant premix 50/50 - Qty: 1-2 gallons
• Replacement splash shield clips - Qty: As needed

---

📋 Before You Begin

• Park your Altima on level ground and let the engine cool fully for several hours.
• Set the parking brake and place wheel chocks behind the rear wheels.
• If raising the front, use a floor jack and place jack stands under approved front support points.
• Set the cabin temperature control to full hot before refilling. This helps coolant circulate through the heater core.
• A coolant funnel kit is a spill-free funnel that locks onto the radiator or reservoir neck and helps remove trapped air.
• A torque wrench is a tool that tightens bolts to an exact tightness so plastic housings and aluminum threads are not damaged.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Lower Splash Shield

• Put on safety glasses and nitrile gloves.
• Use the floor jack rated 2-ton minimum to lift the front of your Altima if more room is needed.
• Place jack stands rated 2-ton minimum under the front support points.
• Use a plastic trim clip remover to remove the lower splash shield clips.
• Use a 10mm socket and 3/8-inch drive ratchet to remove any splash shield bolts.
• Lower the splash shield and set it aside.
• Keep clips organized.

Step 2: Drain Some Coolant

• Place a drain pan 2-gallon minimum under the radiator drain area.
• Make sure the engine is cold, then slowly loosen the coolant reservoir cap by hand to release any remaining pressure.
• Use a flat-blade screwdriver if needed to open the radiator drain cock carefully.
• Drain enough coolant so the level is below the thermostat housing, usually about 1 gallon.
• Close the radiator drain cock by hand once coolant flow slows.
• Do not overtighten the plastic drain cock.

Step 3: Locate the Thermostat Housing

• Follow the lower radiator hose to the engine. The hose connects to the thermostat housing.
• Use shop towels to clean around the thermostat housing area before removal.
• The thermostat housing is the small coolant outlet where the hose attaches to the engine.

Step 4: Remove the Lower Radiator Hose

• Place the drain pan 2-gallon minimum directly below the thermostat housing.
• Use hose clamp pliers to squeeze the lower radiator hose clamp tabs.
• Slide the clamp back onto the hose.
• Use your hand to twist the hose gently to break it loose.
• If stuck, use a flat-blade screwdriver carefully at the hose edge, but do not gouge the housing.
• Pull the hose off and let the remaining coolant drain into the pan.
• Twist first, then pull.

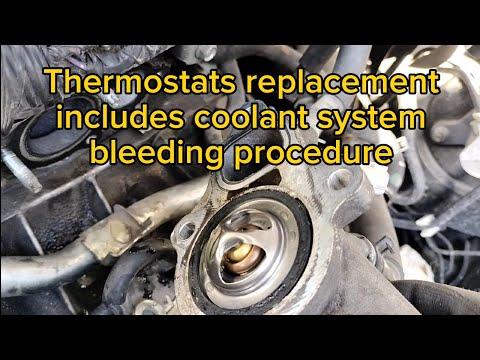

Step 5: Remove the Thermostat Housing

• Use a 10mm socket or 12mm socket with a 3/8-inch drive ratchet and extension to remove the thermostat housing bolts.
• Support the housing with one hand while removing the last bolt.
• Pull the housing straight away from the engine.
• Note the thermostat orientation before removing it. The spring side normally faces into the engine.
• Remove the old thermostat and old seal/O-ring by hand.

Step 6: Clean the Sealing Surfaces

• Use shop towels to wipe the thermostat housing and engine sealing surfaces clean.
• Do not use metal scrapers on aluminum surfaces.
• Check that the old seal/O-ring is completely removed.
• Inspect the housing for cracks or warped plastic. Replace the housing if damaged.

Step 7: Install the New Thermostat

• Install the new thermostat into the engine opening in the same orientation as the old one.
• Make sure the spring side faces into the engine.
• Install the new thermostat housing seal/O-ring by hand.
• If the thermostat has a small jiggle valve or bleed pin, position it at the top.
• The jiggle valve is a small loose pin that lets trapped air pass through during filling.

Step 8: Reinstall the Thermostat Housing

• Position the thermostat housing squarely against the engine.
• Start all housing bolts by hand to avoid cross-threading.
• Use a 10mm socket or 12mm socket with a 3/8-inch drive ratchet to snug the bolts evenly.
• Use a torque wrench 5-25 Nm to tighten the housing bolts evenly.
• Torque to 9.8 Nm (87 in-lbs)
• Do not overtighten. The housing and aluminum threads can be damaged.

Step 9: Reconnect the Lower Radiator Hose

• Push the lower radiator hose fully onto the thermostat housing neck by hand.
• Use hose clamp pliers to move the clamp back to its original position.
• Make sure the clamp sits behind the raised bead on the housing neck.
• Wipe the area dry with shop towels so leaks are easier to spot later.

Step 10: Refill the Cooling System

• Install the coolant funnel kit with radiator adapter or reservoir adapter.
• Slowly add Nissan-compatible blue long-life coolant premix 50/50 until the system is full.
• Fill the coolant reservoir to the MAX line.
• Leave the spill-free funnel partly filled so it can feed the system while air escapes.

Step 11: Bleed Air from the Cooling System

• Start the engine and let it idle with the coolant funnel kit installed.
• Set the cabin heat to full hot and blower to low using the climate controls.
• Watch for air bubbles rising in the funnel.
• Use your hand carefully to feel for warm air from the vents once the engine warms up.
• Allow the engine to reach normal operating temperature.
• When the thermostat opens, the lower radiator hose will become warm.
• Add coolant as the level drops in the funnel.
• Do not rev the engine hard while bleeding.

Step 12: Check for Leaks and Reinstall the Splash Shield

• Turn the engine off and let it cool until safe to touch.
• Use shop towels to check around the thermostat housing, hose connection, and radiator drain cock.
• Top off the coolant reservoir to the MAX line if needed.
• Use a 10mm socket and 3/8-inch drive ratchet to reinstall splash shield bolts.
• Use a plastic trim clip remover or your hand to reinstall splash shield clips.
• If raised, use the floor jack rated 2-ton minimum to lift slightly, remove the jack stands, and lower your Altima carefully.

---

✅ After Repair

• Start the engine and let it idle for several minutes while watching the temperature gauge.
• Take a short test drive and confirm the heater blows warm air.
• After the engine cools completely, recheck the coolant reservoir level and top off if needed.
• Inspect under your Altima for drips after the first drive.
• If the temperature gauge rises above normal, stop driving immediately and let the engine cool.
• Dispose of old coolant at a proper recycling or hazardous waste facility. Do not pour it on the ground or into drains.

---

💰 DIY vs Shop Cost

Shop Cost: $280-$520 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $160-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
