🔧 CX-5 - Thermostat Replacement

The thermostat controls coolant flow so your A4—sorry, your CX-5—can warm up quickly and then stay at the correct operating temperature. On your CX-5, replacing it means draining some coolant, removing the thermostat housing (water outlet), swapping the thermostat and seal, then refilling and bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cold engine; hot coolant can cause severe burns.
• ⚠️ Never open the coolant reservoir/radiator cap when hot or pressurized.
• ⚠️ Support the vehicle on jack stands if you raise it; never rely on a jack.
• ⚠️ Coolant is toxic—keep away from kids and pets; clean spills immediately.
• ⚠️ Electric fans can turn on unexpectedly; keep hands clear.
• ⚠️ Battery disconnect is not strictly required, but it’s safer to disconnect the negative terminal if your hands will be near the fan/shroud wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Spill-free coolant funnel kit (specialty)
• Metric socket set (8mm, 10mm, 12mm)
• 3/8" ratchet
• 3/8" extension (3"-6")
• Torque wrench (3/8" drive)
• Hose clamp pliers (specialty)
• Pick tool
• Flat trim clip tool
• Flathead screwdriver
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal/O-ring - Qty: 1
• Coolant (Mazda FL22 compatible, premixed) - Qty: 1-2 gallons
• Hose clamp(s) - Qty: 1-2

---

📋 Before You Begin

• Park your CX-5 on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (ideally overnight).
• Set your HVAC to full HOT during bleeding later (this opens the heater circuit).
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside.
• Have a plan to capture and dispose of old coolant properly (parts stores often accept it).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and set up for draining

• Use a floor jack at the front center jacking point and lift the front.
• Place jack stands at the approved support points and lower onto them.
• Place a drain pan (at least 10-quart) under the radiator area.

Step 2: Remove the lower splash shield (if equipped)

• Use a flat trim clip tool to pop the plastic clips.
• Use a 10mm socket and 3/8" ratchet to remove any bolts.
• Set the panel and fasteners aside in order.

Step 3: Drain coolant (partial drain)

• Slowly loosen the coolant reservoir cap by hand to relieve any residual pressure (engine must be cold).
• Drain from the radiator drain (petcock) if accessible; use a flathead screwdriver if it’s the screw-type style, and catch coolant in the drain pan.
• If your CX-5 doesn’t have an easy-to-reach drain, remove the lower radiator hose carefully using hose clamp pliers (specialty).
• Tip: Keep rags ready—coolant will run fast.

Step 4: Remove the intake duct/air box for access

• Use a flathead screwdriver to loosen the intake hose clamp(s).
• Use a 10mm socket and 3/8" ratchet to remove air box/duct bolts (as equipped).
• Lift the ducting/air box out enough to access the thermostat housing area.

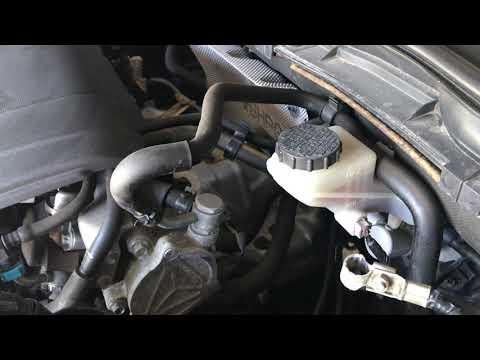

Step 5: Locate the thermostat housing (water outlet) and remove hoses

• Find the housing where the upper radiator hose routes to the engine.
• Use hose clamp pliers (specialty) to compress the spring clamp and slide it back on the hose.
• Twist the hose gently to break it loose; use a pick tool carefully at the edge if it’s stuck (do not gouge the plastic/metal neck).
• Catch remaining coolant with shop towels and the drain pan.

Step 6: Remove the thermostat housing

• Unplug any nearby electrical connector(s) that block access (if present) by hand; use a pick tool only to lift the locking tab gently.
• Use a 10mm socket, 3/8" ratchet, and a 3/8" extension (3"-6") to remove the housing bolts.
• Remove the housing and note the thermostat orientation before pulling it out.

Step 7: Replace the thermostat and seal

• Remove the old thermostat and old seal/O-ring by hand; use a pick tool carefully if the seal is stuck.
• Wipe the mating surfaces with shop towels until clean and dry.
• Install the new seal/O-ring onto the new thermostat (or into the housing groove, depending on design).
• Install the new thermostat in the same orientation as the old one.
• Tip: Do not use RTV unless specified.

Step 8: Reinstall the housing and torque fasteners

• Position the housing and start all bolts by hand to avoid cross-threading.
• Use a 10mm socket to snug bolts evenly in a crisscross pattern.
• Use a torque wrench (3/8" drive) to finish tightening: Torque to factory specification.
• Tip: Even tightening helps prevent leaks.

Step 9: Reinstall hoses and intake parts

• Slide hoses fully onto their fittings by hand.
• Use hose clamp pliers (specialty) to return clamps to their original positions.
• Reinstall the intake duct/air box using a 10mm socket and tighten clamps with a flathead screwdriver.

Step 10: Reinstall lower splash shield and lower the vehicle

• Reinstall the shield using a 10mm socket and the plastic clips using a flat trim clip tool.
• Use the floor jack to lift slightly, remove jack stands, and lower the vehicle.

Step 11: Refill and bleed the cooling system

• Install a spill-free coolant funnel kit (specialty) at the fill point (this is a funnel that seals so you can run the engine without spilling).
• Slowly add coolant (Mazda FL22 compatible, premixed) until the level stabilizes.
• Start the engine and let it idle; set HVAC to HOT and fan to low.
• As the engine warms, add coolant as the level drops; watch for bubbles.
• Once the radiator hose gets hot (thermostat opened), keep idling a few minutes until bubbles slow down.
• Shut the engine off, let it cool, then top off the reservoir to the correct mark using a funnel.

Step 12: Final leak check

• With the engine running, inspect the thermostat housing seam and hose connections using safety glasses.
• Look underneath for drips and recheck hose clamp placement.
• Wipe any residue with shop towels and recheck after a short drive.

---

✅ After Repair

• Verify normal operating temperature on the dash and that the heater blows hot.
• After your first drive and full cool-down, recheck the coolant reservoir level and top off if needed.
• Check for coolant smell or wet spots under the front of your CX-5 over the next 2-3 days.
• If you disconnected the battery, confirm clock/radio settings and that no warning lights remain.

---

💰 DIY vs Shop Cost

Shop Cost: $400-$750 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $260-$690 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
