🔧 Escape - Thermostat Replacement

You’ll be replacing the engine coolant thermostat and its housing on your Escape. This part controls engine temperature; if it sticks, you can get overheating, poor heat, or a check engine light.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🔥 Only work on the cooling system when the engine is completely cool to avoid serious burns.
• 🧯 Coolant is toxic; keep away from kids, pets, and drains, and wipe spills immediately.
• 🔋 Disconnect the negative battery cable before working near the alternator and starter area.
• 🧤 Wear safety glasses and gloves; coolant can irritate skin and eyes.
• 🚗 Support the vehicle with jack stands if you raise the front; never rely on a jack alone.
• ⚠️ Do not open the coolant reservoir cap when the engine is hot; pressure can cause hot coolant to spray out.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Metric socket set (8mm–15mm)
• 🛠️ 1/4" drive ratchet
• 🛠️ 3/8" drive ratchet
• 🛠️ 3" and 6" socket extensions
• 🛠️ Torque wrench (inch-lb and ft-lb capable)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Pick tool or small hook tool
• 🛠️ Hose clamp pliers (specialty)
• 🛠️ Needle-nose pliers
• 🛠️ Trim clip removal tool
• 🛠️ Catch pan (at least 2 gallons capacity)
• 🛠️ Plastic funnel
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (2-ton or higher pair)
• 🛠️ Shop rags or paper towels
• 🛠️ Work light
• 🛠️ Safety glasses
• 🛠️ Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Thermostat and housing assembly (2.0L EcoBoost) - Qty: 1
• 🔩 Thermostat housing gasket or seal - Qty: 1 (if not included)
• 🔩 Engine coolant (Motorcraft orange or yellow, pre-mixed 50/50) - Qty: 2 gallons
• 🔩 New hose clamps (spring or worm-drive, 1"–1.5") - Qty: 2–4
• 🔩 Battery terminal protector spray - Qty: 1 (optional)
• 🔩 Shop towels or absorbent pads - Qty: 1 pack

---

📋 Before You Begin

• Park the Escape on level ground, set the parking brake, and let the engine cool completely (at least 1–2 hours after driving).
• Open the hood and locate the coolant reservoir on the passenger side near the fender.
• Disconnect the negative battery cable:
  • Use a 10mm socket on the negative terminal clamp and move the cable aside so it can’t spring back.
• Place a catch pan under the front of the vehicle where the lower radiator hose and petcock (drain) are located.
• If you plan to drain from below, raise the front with a floor jack and support it securely with jack stands under the front subframe or pinch welds.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve coolant system pressure

• Make sure the engine is cool to the touch.
• Slowly loosen the coolant reservoir cap by hand to release any remaining pressure, then remove it fully.
• If you hear hissing, pause until it stops.

Step 2: Drain enough coolant

• From under the front of the Escape, position your catch pan under the lower radiator area on the driver’s side.
• Option A (petcock, if accessible):
  • Use a flathead screwdriver to gently open the plastic drain cock on the radiator.
  • Drain about 1–1.5 gallons of coolant into the pan, then close the drain cock snugly by hand with the screwdriver.
• Option B (lower radiator hose):
  • Use hose clamp pliers to compress the spring clamp on the lower radiator hose at the radiator.
  • Slide the clamp back along the hose, then twist and pull the hose off to let coolant drain into the pan.
  • Reinstall the hose and slide the clamp back into its original position using hose clamp pliers.
• Only drain enough so the coolant level is below the thermostat housing height.

Step 3: Remove the engine cover and intake tube

• Lift off the plastic engine cover by pulling straight up at the corners; it’s held by rubber grommets.
• Locate the air intake tube going from the air filter box to the turbo inlet.
• Use an 8mm socket or flathead screwdriver to loosen the hose clamp at the airbox and at the turbo side.
• Unclip any small hoses or connectors attached to the intake tube using your needle-nose pliers if needed.
• Remove the intake tube and set it aside.

Step 4: Gain access to the thermostat housing

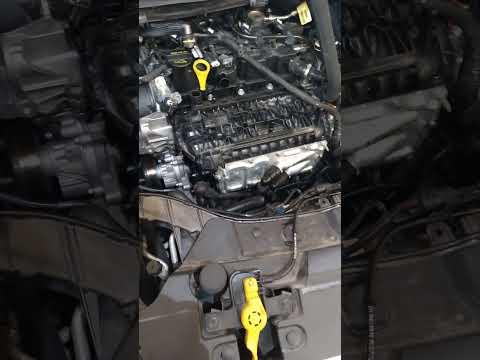

• The thermostat housing on the 2.0L is mounted on the front side of the engine block toward the driver’s side, with several coolant hoses attached.
• If needed for better access, remove any plastic covers or air duct pieces near the radiator support:
  • Use a trim clip removal tool to pop out plastic fasteners.
  • Set fasteners in a small container so you don’t lose them.
• Take a photo of the hose layout before disconnecting anything.

Step 5: Disconnect electrical connectors and hoses

• Unplug the coolant temperature sensor from the thermostat housing:
  • Press the tab with your thumb and pull the connector off. If stiff, gently help it with a pick tool, but don’t break the tab.
• Use hose clamp pliers to compress and slide the hose clamps away from the thermostat housing hose nipples.
• Twist each hose gently to break it loose, then pull it off the housing. Use needle-nose pliers carefully if needed, but don’t tear the hose.
• Point hoses upward or plug them with clean rags to reduce dripping.

Step 6: Remove the thermostat housing

• Locate the thermostat housing mounting bolts (usually 3–4 small bolts around the housing).
• Use an 8mm or 10mm socket with a 1/4" ratchet and extension to remove the bolts.
• Keep track of bolt lengths and positions; lay them out in order on a clean rag.
• Gently pull the housing away from the engine. Some coolant will spill, so keep the catch pan underneath.
• If the housing is stuck, tap lightly with the handle of a flathead screwdriver; do not pry hard on the plastic.

Step 7: Clean the sealing surface

• Use a clean rag to wipe the mating surface on the engine where the thermostat housing seals.
• If any old gasket material remains, gently scrape it off with a plastic scraper or the edge of a plastic trim tool so you don’t gouge the aluminum.
• Do not use sandpaper or metal tools on the sealing surface.

Step 8: Prepare the new thermostat housing

• If your new part is a complete assembly, confirm the thermostat is already installed inside and the gasket or O-ring is in its groove.
• If you are transferring just the thermostat:
  • Install the new thermostat in the housing in the same orientation as the old one.
  • Install the new gasket or O-ring, making sure it is fully seated and not twisted.
• Compare old and new parts side-by-side before installing.

Step 9: Install the new thermostat housing

• Position the new housing against the engine, lining up the bolt holes and making sure the gasket stays in place.
• Install all housing bolts by hand first to avoid cross-threading.
• Use an 8mm or 10mm socket and 1/4" ratchet to snug the bolts evenly in a crisscross pattern.
• Then use a torque wrench with the same socket to tighten:
  • Torque to 9–10 Nm (80–89 in-lbs)
• Do not overtighten; the housing is plastic.

Step 10: Reinstall hoses and electrical connector

• Slide each coolant hose back onto its correct nipple on the thermostat housing.
• Use hose clamp pliers to move the clamps back into their original positions over the hose ends.
• Verify each clamp is centered over the raised bead on the fitting.
• Reconnect the coolant temperature sensor connector by pushing it on until it clicks.

Step 11: Reinstall intake tube and any covers

• Reinstall any plastic covers or air ducts you removed, using the trim clip removal tool and your saved clips.
• Reinstall the air intake tube between the airbox and turbo inlet.
• Use an 8mm socket or flathead screwdriver to tighten both hose clamps securely, but don’t strip them.
• Press the engine cover back onto its mounting studs until it snaps into place.

Step 12: Reconnect the battery

• Use a 10mm socket to reinstall and tighten the negative battery cable clamp on the battery post.
• Torque to about 5–7 Nm (44–62 in-lbs) if your torque wrench allows, or snug plus a small turn.
• Spray battery terminal protector spray if you’re using it.

Step 13: Refill the cooling system

• Make sure the radiator drain and lower radiator hose are fully closed and connected.
• Place a funnel in the coolant reservoir opening.
• Pour in the correct 50/50 pre-mixed coolant slowly until the level reaches the “MAX” line on the reservoir.
• Squeeze the upper radiator hose by hand a few times to help burp air out.
• Use coolant type that matches the sticker and existing color.

Step 14: Bleed air from the system

• Leave the reservoir cap off for now.
• Sit in the driver’s seat, turn the ignition on, and start the engine.
• Set the cabin heater to full hot and fan on low (this opens the heater core flow).
• Let the engine idle and watch the coolant level in the reservoir; as the thermostat opens and air escapes, the level may drop.
• Use your funnel to top up coolant as needed to keep it at or just above the “MAX” line.
• Once the upper radiator hose is warm and you have steady heat from the vents, and bubbles stop appearing, shut off the engine.
• Install the reservoir cap by hand and tighten it snugly.

Step 15: Final leak check and cleanup

• With the engine running (after bleeding), use your work light to carefully inspect around the thermostat housing, hoses, and radiator drain for leaks.
• Look for any dripping or wet spots; if found, gently snug the related clamp or bolt using the appropriate socket or hose clamp pliers.
• Turn the engine off and let it cool completely again.
• Recheck the coolant level in the reservoir when cold and adjust to the “MAX” line using your funnel.
• Pour used coolant from the catch pan into sealed containers for recycling—do not pour down drains.

---

✅ After Repair

• Start the engine from cold and watch the temperature gauge; it should warm up steadily and stay in the normal range.
• Verify the cabin heater blows hot air once the engine warms up.
• Check under the Escape and around the thermostat housing again after your first drive for any signs of leaks.
• Over the next few trips, check the coolant level with the engine cold and top off if it drops slightly as remaining air works out.
• If you had a check engine light related to temperature, clear it with a scan tool or it may clear itself after several drive cycles.

---

💰 DIY vs Shop Cost

Shop Cost: $450–$650 (parts + labor)

DIY Cost: $80–$160 (parts only)

You Save: $290–$570 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 2–3 hours.

---
