🔧 Land Cruiser - Thermostat Replacement

Your Land Cruiser’s thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it sticks closed you can overheat; if it sticks open the engine may run cold and set a check engine light or have weak heat.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray out and burn you.
• ⚠️ Support the Land Cruiser with jack stands if you raise it; never rely on a floor jack alone.
• ⚠️ Keep coolant off belts and electrical connectors; wipe spills immediately.
• ⚠️ Coolant is toxic to pets/children; capture all drained coolant in a drain pan.
• ⚠️ Battery disconnect is not required for this job, but keep hands/tools clear of the fan and belts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Spill-free funnel kit (specialty)
• Shop rags
• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3" and 6" socket extensions
• Torque wrench (inch-pound or low-range Nm)
• Hose clamp pliers
• Flat-blade screwdriver
• Trim clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine coolant thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Toyota Super Long Life Coolant (pink) 50/50 premix - Qty: 2-3 gallons
• Lower radiator hose clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and install wheel chocks.
• Let the engine cool completely (ideally overnight).
• Set the HVAC to full HOT before starting the final bleed step so the heater core can flow coolant.
• If you plan to raise the front end for access, lift with a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the work area and relieve pressure safely

• Verify the engine is stone cold by touching the upper radiator hose; it should feel cool.
• Place a drain pan under the radiator drain area.
• Slowly loosen the radiator cap by hand to the first stop to release any leftover pressure, then remove it fully.

Step 2: Drain enough coolant to get below the thermostat level

• Open the radiator drain cock using a flat-blade screwdriver (if needed) and drain coolant into the drain pan.
• Drain until the coolant level is below the lower radiator hose connection.
• Close the drain cock snugly by hand (do not over-tighten).

Step 3: Remove the lower splash shield (if equipped)

• Remove the front lower engine cover/splash shield fasteners using a trim clip removal tool and 10mm socket.
• Set the shield and hardware aside in a tray.

Step 4: Access the thermostat housing at the lower radiator hose connection

• Locate the thermostat housing where the lower radiator hose meets the engine (front-lower area).
• Use hose clamp pliers to compress the hose clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off the housing. Work it off—don’t pry hard.

Step 5: Remove the thermostat housing

• Place shop rags under the housing to catch remaining coolant.
• Remove the thermostat housing bolts using a 10mm socket, ratchet, and extension.
• Separate the housing carefully and note the thermostat orientation before removal.

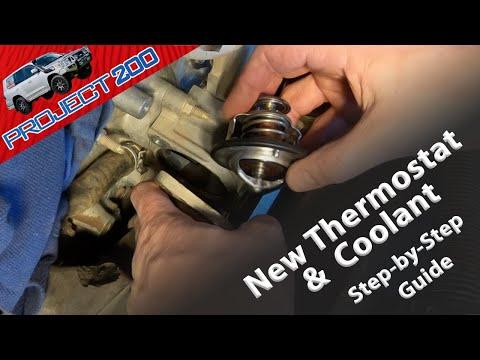

Step 6: Replace the thermostat and seal

• Remove the old thermostat and old seal/O-ring by hand.
• Clean the mating surfaces with shop rags (no gouging or scraping).
• Install the new seal/O-ring onto the new thermostat as designed (it should sit fully and evenly).
• Install the new thermostat in the same orientation as the old one. Match the original position exactly.

Step 7: Reinstall the thermostat housing

• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Tighten the housing bolts evenly using a 10mm socket and then a torque wrench.
• Torque to 10 Nm (89 in-lbs)

Step 8: Reconnect the lower radiator hose

• Slide the hose fully onto the housing neck.
• Reposition the clamp in the same spot as before using hose clamp pliers.
• If the clamp is weak or distorted, replace it with the new clamp.

Step 9: Reinstall the splash shield

• Reinstall the splash shield using the 10mm socket and trim clip removal tool.
• Make sure no fasteners are missing so it doesn’t flap at highway speeds.

Step 10: Refill and bleed the cooling system

• Install a spill-free funnel kit (specialty) onto the radiator filler neck.
• Fill with Toyota Super Long Life Coolant (pink) 50/50 premix using a funnel until the funnel level stays stable.
• Start the engine and let it idle; keep an eye on coolant level in the funnel.
• Set the heater to HOT and the fan to medium.
• As the engine warms up, watch for air bubbles; add coolant as the level drops.
• When the thermostat opens, you should feel the upper radiator hose get hot and you may see a larger drop in coolant level—top off as needed.
• When bubbles stop and cabin heat is steady, shut the engine off and let it cool.
• Remove the funnel and install the radiator cap securely by hand.
• Fill the coolant overflow reservoir to the FULL line.

---

✅ After Repair

• Start the engine and verify there are no leaks at the thermostat housing or lower radiator hose.
• Road test 10-15 minutes and confirm the temperature gauge stays normal.
• After the engine fully cools, recheck the overflow reservoir level and top off if needed.
• If you get a coolant smell, see drips, or the gauge fluctuates, stop and recheck for trapped air or a loose clamp.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
