🔧 Sorento - Thermostat Replacement

On your Sorento, the thermostat controls when coolant starts flowing to the radiator. If it sticks closed you can overheat; if it sticks open you may get a P0128 and weak cabin heat.

Difficulty Level: Intermediate | Estimated Time: 2.0-3.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine—wait until fully cold.
• ⚠️ Support the Sorento on jack stands; never rely on a jack alone.
• ⚠️ Coolant is toxic—keep away from kids/pets and clean spills.
• Disconnecting the battery negative is recommended when working near the fan/wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Spill-free coolant funnel kit (specialty)
• 10mm socket
• 12mm socket
• 1/4" ratchet
• 3/8" ratchet
• 6" extension
• Torque wrench (5–50 Nm range)
• Flathead screwdriver
• Hose clamp pliers (specialty)
• Trim clip removal tool
• Plastic scraper
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Long-life coolant (phosphate HOAT, 50/50 premix) - Qty: 2 gallons
• Distilled water - Qty: 1 gallon
• Replacement hose clamps - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine go fully cold.
• Set the HVAC to HOT later during bleeding (this helps purge air from the heater core).
• If you’ll be working close to the radiator fan wiring, disconnect the battery negative cable.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front safely

• Place wheel chocks behind the rear wheels.
• Use a floor jack to lift the front, then set it down onto jack stands.

Step 2: Remove the lower engine cover (if equipped)

• Use a trim clip removal tool for plastic clips.
• Use a 10mm socket to remove any bolts holding the splash shield/undertray.

Step 3: Drain the coolant

• Place a drain pan under the radiator drain area.
• Slowly loosen the coolant cap on the reservoir/radiator neck (only if fully cold).
• Open the radiator drain cock using a flathead screwdriver if required by the style, and drain coolant.
• Tip: Save coolant only if clean/new.

Step 4: Remove the air intake ducting for access

• Use a flathead screwdriver to loosen the worm clamps.
• Use a 10mm socket to remove any intake snorkel/duct bolts.
• Lift the ducting out and set it aside.

Step 5: Locate the thermostat housing

• Follow the lower radiator hose to where it connects to the engine—this connection point is the thermostat housing/water inlet.
• Clean dirt/oil around the housing with shop rags so debris doesn’t fall inside.

Step 6: Remove the lower radiator hose from the housing

• Use hose clamp pliers (specialty) to compress the spring clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off the housing.
• Catch remaining coolant in the drain pan.

Step 7: Remove the thermostat housing

• Unplug any nearby connector that blocks access (press the tab by hand; don’t yank wires).
• Use a 12mm socket, ratchet, and extension to remove the thermostat housing bolts.
• Pull the housing straight off. If it’s stuck, tap lightly by hand—do not pry on sealing surfaces.

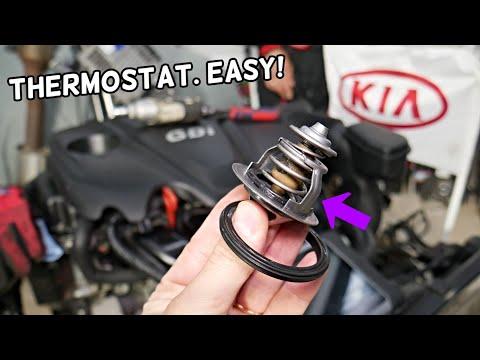

Step 8: Replace the thermostat and seal

• Remove the old thermostat and the old seal/O-ring.
• Clean the mating surfaces using a plastic scraper and shop rags.
• Install the new thermostat in the same orientation as the old one.
• Install the new seal/O-ring (lightly wet it with fresh coolant so it doesn’t pinch).

Step 9: Reinstall the housing and torque bolts

• Set the housing in place by hand, then start all bolts by hand to avoid cross-threading.
• Use a torque wrench with a 12mm socket to tighten evenly.
• Torque to 9.8 Nm (7 ft-lbs)

Step 10: Reconnect the hose and reassemble intake/undertray

• Push the lower radiator hose fully onto the housing.
• Use hose clamp pliers (specialty) to return the clamp to its original position.
• Reinstall the intake ducting using a 10mm socket and tighten clamps with a flathead screwdriver.
• Reinstall the undertray using a 10mm socket and the trim clip removal tool for clips.

Step 11: Refill and bleed the cooling system

• Make sure the radiator drain is closed (snug only).
• Install a spill-free coolant funnel kit (specialty) on the fill neck.
• Refill with 50/50 long-life coolant until the level stabilizes.
• Start the engine and set the heater to HOT, fan on low.
• Let it idle and watch for air bubbles; add coolant as the level drops.
• When the upper hose gets hot and bubbles slow down, shut the engine off and let it cool fully, then top off again.
• Fill the reservoir to the MAX line.

---

✅ After Repair

• Check for leaks around the thermostat housing and the lower radiator hose connection with the engine running.
• Test drive 10–15 minutes, then recheck coolant level after a full cool-down.
• If the temperature gauge rises abnormally or the heater blows cold, stop and re-bleed (air is still trapped).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.0 hours.

---
