🔧 Elantra - Thermostat Replacement

Your Elantra’s thermostat regulates engine temperature by controlling coolant flow to the radiator. If it sticks closed you can overheat; if it sticks open you may get low heat and poor fuel economy.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic; keep away from kids/pets and clean spills immediately.
• ⚠️ Cooling fans can turn on unexpectedly; keep hands/tools clear.
• ⚠️ Dispose of old coolant properly (do not pour onto the ground).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (pair, rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2 gallons)
• Shop rags
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3" extension
• Flathead screwdriver
• Hose clamp pliers
• Trim clip remover
• Torque wrench (3/8" drive)
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat housing gasket or O-ring seal - Qty: 1
• Hyundai-compatible long-life coolant (premixed 50/50) - Qty: 1-2 gallons
• Replacement hose clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (best: overnight).
• Set the HVAC temperature to full HOT during bleeding later so coolant can flow through the heater core.
• If you’ll be working near the cooling fan area a lot, disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front of your Elantra

• Use a floor jack (rated 3-ton minimum) to lift the front jacking point.
• Place jack stands (pair, rated 3-ton minimum) under the front pinch welds/subframe points and lower the car onto them.

Step 2: Remove the lower engine cover (if equipped)

• Remove bolts using a 10mm socket.
• Remove plastic clips using a trim clip remover.

Step 3: Drain coolant from the radiator

• Place a drain pan (at least 2 gallons) under the radiator drain area.
• Slowly loosen the coolant reservoir cap to relieve any remaining pressure.
• Open the radiator drain cock (petcock) carefully; use a flathead screwdriver if needed.
• Let coolant drain until the flow slows to a drip.

Step 4: Remove the air intake duct/air box for access

• Loosen intake tube clamps using a flathead screwdriver.
• Remove air box fasteners using a 10mm socket, then lift the air box/ducting out.
• Set parts aside where they won’t get dirt inside them.

Step 5: Disconnect the lower radiator hose from the thermostat housing

• Move the hose clamp back using hose clamp pliers. Hose clamp pliers are spring-clamp pliers that lock the clamp open so you can slide it easily.
• Twist the hose gently to break it loose, then pull it off the housing.
• Catch any remaining coolant with the drain pan (at least 2 gallons).

Step 6: Remove the thermostat housing

• Remove the thermostat housing bolts using a 12mm socket, 3/8" ratchet, and 3" extension.
• Pull the housing straight off. Use shop rags to protect surrounding components from spills.

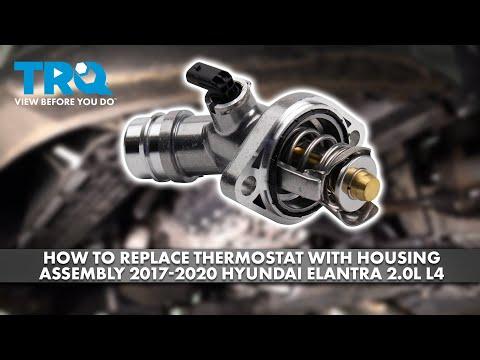

Step 7: Replace the thermostat and seal

• Remove the old thermostat and old gasket/O-ring.
• Clean the mating surfaces using shop rags (no gouging or scraping the aluminum).
• Install the new thermostat in the same orientation as removed (if it has a small bleed “jiggle valve,” position it at the top).
• Install the new gasket/O-ring (do not reuse the old seal).

Step 8: Reinstall the thermostat housing

• Reinstall housing bolts by hand first to avoid cross-threading.
• Tighten bolts evenly using a 12mm socket.
• Final tighten using a torque wrench (3/8" drive): Torque to 9.8-11.8 Nm (7-9 ft-lbs).

Step 9: Reinstall the lower radiator hose

• Push the hose fully onto the housing.
• Reposition the clamp to its original location using hose clamp pliers.

Step 10: Reinstall the air box/intake duct

• Reinstall fasteners using a 10mm socket.
• Tighten hose clamps using a flathead screwdriver.

Step 11: Refill and bleed the cooling system

• Close the radiator drain cock.
• Refill slowly using a funnel and Hyundai-compatible long-life coolant (premixed 50/50) at the reservoir fill point.
• Start the engine and let it idle with the heater set to HOT.
• As it warms up, squeeze the upper radiator hose gently to help move trapped air.
• Continue until the temperature gauge is stable and you feel steady heat from the vents.
• Shut the engine off, let it cool fully, then recheck and top off coolant as needed.

Step 12: Reinstall the lower engine cover and lower the car

• Reinstall clips using a trim clip remover and bolts using a 10mm socket.
• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (pair, rated 3-ton minimum), and lower the car.

---

✅ After Repair

• Start the engine and verify the cabin heat works and the temperature gauge stays normal.
• Check for leaks around the thermostat housing and the lower radiator hose connection.
• Recheck coolant level again after 1-2 normal drives (only when fully cold) and top off if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $40-$140 (parts only)

You Save: $210-$660 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
