🔧 Suburban - Thermostat Replacement

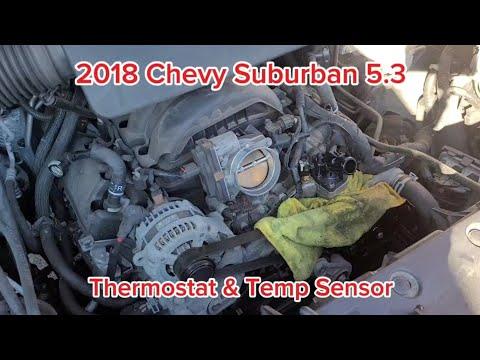

The thermostat controls coolant flow to keep your engine at the correct temperature. If it sticks open you may get low heat and poor fuel economy; if it sticks closed the engine can overheat. On your Suburban, the thermostat sits in the housing where the lower radiator hose meets the front of the engine.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the surge tank cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Let the engine cool fully (at least 1–2 hours) before draining coolant.
• ⚠️ Support the Suburban with jack stands on the frame; never rely on a jack alone.
• ⚠️ Keep hands clear of the cooling fan area while the engine is running.
• ⚠️ Battery disconnect is not required for this job, but keep tools away from the positive terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Hose clamp pliers
• Trim tool
• Torque wrench (inch-pound)
• Plastic scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat (OEM-temp) - Qty: 1
• Thermostat seal / gasket - Qty: 1
• Dex-Cool coolant (50/50 pre-mix) - Qty: 2 gallons

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Make sure the engine is completely cool.
• 🧴 Slowly loosen the surge tank cap to release any leftover pressure, then remove it.
• 🧼 Have rags ready; coolant will drip when hoses are removed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front safely

• Use wheel chocks behind the rear tires.
• Use a floor jack (rated 3-ton minimum) to lift the front at a solid frame/jacking point.
• Set the Suburban onto jack stands (rated 3-ton minimum).

Step 2: Remove the engine cover (if equipped)

• Use your hands and a trim tool as needed to pop the cover up off the ball-studs.
• Pull straight up to avoid cracking it.

Step 3: Remove the air intake duct (for access)

• Use an 8mm socket and 1/4" drive ratchet to loosen the hose clamps on the intake duct.
• Lift the duct out and set it aside.

Step 4: Drain enough coolant

• Place a drain pan (at least 3-gallon) under the radiator drain area.
• Open the radiator drain and let coolant drain until the level is below the thermostat area.
• Use shop towels to wipe spills.
• You usually don’t need to fully drain the system.

Step 5: Remove the lower radiator hose from the thermostat housing

• Move the hose clamp back using hose clamp pliers.
• Twist the hose to break it loose, then pull it off the thermostat housing.
• Catch remaining coolant in the drain pan.
• Twist first—don’t just yank.

Step 6: Remove the thermostat housing

• Use a 10mm socket, 1/4" drive ratchet, and 3" extension to remove the thermostat housing bolts.
• Pull the housing off carefully; a little coolant may spill.

Step 7: Replace the thermostat and seal

• Remove the old thermostat and old seal from the housing/engine side.
• Clean the mating surfaces using a plastic scraper and shop towels.
• Install the new thermostat and new seal exactly the same orientation as the old one.
• No sealant unless the new part kit says so.

Step 8: Reinstall thermostat housing and torque bolts

• Reinstall the housing and start all bolts by hand.
• Tighten evenly using a 10mm socket.
• Final tighten with a torque wrench (inch-pound): Torque to 10 Nm (89 in-lbs).

Step 9: Reconnect the lower radiator hose

• Push the hose fully onto the housing.
• Reposition the clamp using hose clamp pliers to the original spot.

Step 10: Refill coolant

• Lower the Suburban from the stands using the floor jack (rated 3-ton minimum).
• Use a funnel to fill the surge tank with Dex-Cool coolant (50/50 pre-mix) to the “FULL COLD” line.
• Reinstall the surge tank cap.

Step 11: Bleed air and verify operation

• Start the engine and set the HVAC to heat (hot) so coolant flows through the heater core.
• Let it idle until it reaches normal operating temperature.
• Shut the engine off, let it cool, then recheck the level and top off to the “FULL COLD” line using the funnel.

---

✅ After Repair

• 🧪 Check for leaks around the thermostat housing and hose connection with the engine running.
• 🌡️ Confirm the temperature gauge rises normally and stays steady.
• 🔥 Confirm you have steady heat from the vents once warm.
• 🧴 Recheck coolant level again the next morning (engine cold) and top off if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $290-$510 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
