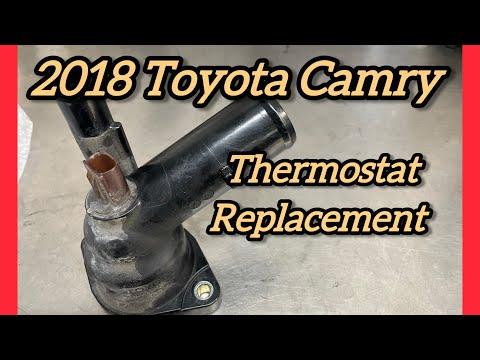

🔧 Thermostat - Replacement

On your Camry, the thermostat is part of the engine cooling system and is replaced by draining coolant, removing the thermostat housing, and installing a new seal. This job is important because a stuck thermostat can cause overheating, poor heater performance, or slow warm-up.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening the cooling system. Hot coolant can cause severe burns.
• Do not open the radiator cap when the engine is hot.
• Coolant is toxic. Keep it away from pets and children.
• Battery disconnect is not required for this repair, but keep tools away from the cooling fan circuit.
• Use a drain pan and clean spills immediately to avoid slipping.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8-inch ratchet
• Torque wrench
• Drain pan
• Funnel
• Coolant spill-free funnel (specialty)
• Flat trim tool
• Shop towels
• Nitrile gloves
• Safety glasses
• Gasket scraper or plastic pick

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat - Qty: 1
• Thermostat gasket or seal - Qty: 1
• Engine coolant - Qty: 2-3 gallons
• Thermostat housing O-ring - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before starting.
• Set the heater to full hot before draining coolant.
• Drain enough coolant so the level is below the thermostat housing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator drain area.
• Open the radiator drain cock or remove the lower hose as needed for controlled draining.
• Drain enough coolant so it sits below the thermostat housing.
• Save clean coolant only if it is fresh.

Step 2: Remove access parts

• Use a 10mm socket and 12mm socket to remove any engine cover or intake ducting blocking access to the thermostat housing.
• Move hoses or harness clips aside gently so you can reach the housing.

Step 3: Remove the thermostat housing

• Use a 12mm socket to remove the thermostat housing bolts.
• Lift the housing off carefully and catch any remaining coolant with shop towels.
• Note the thermostat orientation before removal.

Step 4: Remove the old thermostat

• Remove the thermostat from the housing or engine-side seat, depending on how the unit is mounted.
• Use a gasket scraper or plastic pick to clean the sealing surface.
• Do not scratch the aluminum surface.

Step 5: Install the new thermostat

• Install the new thermostat in the same direction as the old one.
• Install the new thermostat gasket or seal and make sure it sits flat.
• Reinstall the housing by hand first so the bolts do not cross-thread.

Step 6: Torque the housing

• Use a 12mm socket and torque wrench to tighten the housing bolts evenly.
• Torque to 10 Nm (89 in-lbs) for the thermostat housing bolts.
• Snug evenly to avoid leaks.

Step 7: Reassemble removed parts

• Reinstall any intake ducting, covers, or brackets removed earlier using the 10mm socket and 12mm socket.
• Make sure every hose clamp and connector is back in place.

Step 8: Refill and bleed the cooling system

• Use a funnel and coolant spill-free funnel (specialty) to refill with the correct engine coolant.
• Fill slowly to avoid trapping air.
• Start the engine with the radiator cap/funnel installed and set the heater to hot.
• Let the engine warm up until the thermostat opens and bubbles stop appearing.

Step 9: Final check

• Check the coolant level and top off as needed.
• Inspect the thermostat housing for leaks.
• Reinstall the radiator cap once air is purged and the coolant level is stable.

---

✅ After Repair

• Watch the temperature gauge on the first drive.
• Check for leaks again after the engine cools down.
• Recheck coolant level the next day and top off if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $280-$520 (parts + labor)

DIY Cost: $45-$110 (parts only)

You Save: $235-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
