🔧 Rogue - Thermostat Replacement

You’ll be removing the thermostat housing on the engine, swapping in a new thermostat and gasket, then refilling and bleeding the coolant. This restores proper engine temperature control and can fix overheating or slow warm-up issues.

Difficulty Level: Intermediate (OK for careful beginner) | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a completely cold engine. Hot coolant can cause severe burns.
• ⚠️ Your Rogue is a hybrid: do not touch any bright orange cables or connectors; these are high-voltage components.
• ⚠️ Park on level ground, use a floor jack and jack stands, never rely on the jack alone.
• ⚠️ Wear safety glasses and gloves; coolant is toxic and irritating to skin and eyes.
• ⚠️ Keep coolant away from children and animals; it has a sweet smell but is poisonous.
• ⚠️ Turn ignition OFF, remove the key/fob from the car, and wait a few minutes before starting work so nothing powers on automatically.
• ⚠️ Disconnect the negative (-) terminal of the 12V battery to avoid fans starting unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ Metric socket set (8mm–14mm)
• 🛠️ 1/4" drive ratchet
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–60 Nm range)
• 🛠️ 3" and 6" socket extensions
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Phillips screwdriver (medium)
• 🛠️ Needle-nose pliers
• 🛠️ Hose clamp pliers (specialty)
• 🛠️ Plastic trim clip removal tool
• 🛠️ Drain pan (at least 10-liter capacity)
• 🛠️ Funnel with small spout
• 🛠️ Shop towels or clean rags
• 🛠️ Work light or flashlight
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Engine thermostat with seal/O-ring (2.0L hybrid) - Qty: 1
• 🔩 Thermostat housing gasket or O-ring (if separate) - Qty: 1
• 🔩 Nissan-compatible blue long-life coolant (pre-mixed 50/50) - Qty: 2–3 gallons
• 🔩 Replacement hose clamps (radiator hose size) - Qty: 2 (optional but recommended)
• 🔩 Distilled water - Qty: 1–2 liters (only if using concentrate coolant)
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park the Rogue on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool for at least 2–3 hours so the upper radiator hose feels completely cold.
• Open the hood and locate the coolant reservoir and radiator cap. Do not open the cap while hot.
• Disconnect the negative (-) 12V battery cable using a 10mm socket and set it aside so it cannot spring back.
• Have your drain pan ready under the front of the car before loosening anything in the cooling system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and support the front

• Use the floor jack to lift the front of the Rogue at the front jacking point (center front crossmember).
• Place jack stands under the factory pinch welds or frame points on both sides and gently lower the car onto them.
• Give the car a light shake to confirm it is stable before going underneath. Never work under a car on a jack only.

Step 2: Remove the lower engine undercover

• Position the drain pan under the front center area where the radiator is.
• Use the Phillips screwdriver and plastic trim clip removal tool to remove screws and clips holding the front plastic undercover.
• Lower the undercover and set it aside where you can find it easily later.

Step 3: Drain coolant from the radiator

• Place the drain pan directly under the radiator drain plug (usually at the bottom of the radiator on the passenger side).
• Slowly loosen the radiator cap using your hand or a gloved hand to release any remaining pressure.
• Use a flathead screwdriver to turn the plastic radiator drain plug counterclockwise and allow coolant to drain into the pan.
• Let it drain until flow slows to a drip, then close the drain plug by turning it clockwise with the flathead screwdriver. Do not overtighten plastic plug.

Step 4: Remove air intake components for access

• Open the hood fully and secure it with the prop rod.
• Use a flathead screwdriver to loosen the clamps on the intake tube connected to the air filter box and throttle body area.
• Use the Phillips screwdriver or 10mm socket (depending on fasteners) to remove any bolts/screws holding the air intake duct in place.
• Lift the intake duct/tube out gently and set it aside. This creates space to reach the thermostat housing at the front of the engine.

Step 5: Locate the thermostat housing

• Follow the lower radiator hose from the radiator toward the engine. The hose connects to a metal or plastic housing on the front/side of the engine block – this is the thermostat housing.
• Make sure you are working only on coolant hoses and metal housing; avoid any bright orange hybrid cables nearby.

Step 6: Remove the lower radiator hose from the thermostat housing

• Position the drain pan directly under the thermostat housing area (more coolant will spill).
• If there is a spring-type clamp, use hose clamp pliers or needle-nose pliers to squeeze the clamp and slide it back along the hose.
• If it’s a screw-type clamp, use a flathead screwdriver to loosen it and slide it away from the housing.
• Gently twist the hose by hand to break it free, then pull it off the thermostat housing. Allow any remaining coolant to drain into the pan.

Step 7: Remove the thermostat housing

• Use a 10mm socket, ratchet, and extension to remove the bolts holding the thermostat housing to the engine.
• There are usually 2–3 bolts; keep track of their length and position.
• Gently pull the housing away from the engine. Some coolant may still drip out; keep the drain pan underneath.

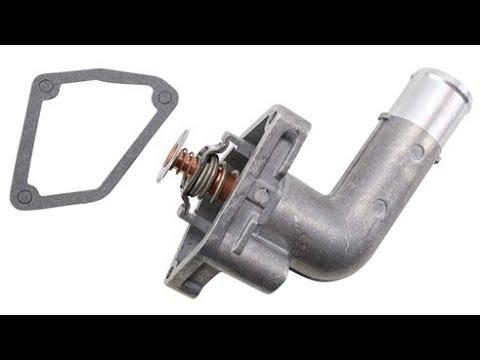

Step 8: Remove the old thermostat

• Note the orientation of the thermostat before removal (which side faces the engine, and the position of the small air bleed “jiggle” valve, usually near the top).
• Pull the old thermostat straight out of the engine using your fingers or needle-nose pliers if it is stuck.
• Remove any old gasket or O-ring from the housing or engine surface.
• Use a clean rag to wipe the sealing surfaces on both the housing and engine. Do not scratch the metal.

Step 9: Install the new thermostat

• Place the new gasket or O-ring on the thermostat as designed (some slip into a groove, others sit in the housing).
• Insert the new thermostat into the engine in the same orientation as the old one. The spring side usually faces the engine block.
• If there is a jiggle valve (small hole with pin), position it at the top (12 o’clock position) to help air bleed out. Match original position if unsure.

Step 10: Reinstall the thermostat housing

• Carefully place the thermostat housing back over the new thermostat without disturbing its position.
• Hand-thread the housing bolts using your fingers to avoid cross-threading.
• Use a 10mm socket and ratchet to snug the bolts evenly in a crisscross pattern.
• Use the torque wrench (10mm socket) to tighten housing bolts to 10–12 Nm (7–9 ft-lbs). Do not overtighten; the housing can crack.

Step 11: Reattach the lower radiator hose

• Slide the lower radiator hose fully onto the thermostat housing until it seats against the stop.
• Position the clamp about 5–10 mm from the hose end, over the fitting barb.
• Use hose clamp pliers or flathead screwdriver (for screw clamps) to tighten/secure the clamp firmly, but do not strip it.

Step 12: Reinstall the air intake components

• Place the intake duct/tube back in position between the air filter box and throttle area.
• Use the Phillips screwdriver or 10mm socket to reinstall any screws/bolts.
• Use the flathead screwdriver to tighten the hose clamps on the intake tube connections. Make sure all joints are snug and aligned.

Step 13: Reinstall the lower engine undercover

• Lift the plastic undercover back into place under the front of the car.
• Use the Phillips screwdriver and plastic trim clip removal tool to reinstall all screws and clips.
• Double-check that nothing is hanging down or loose.

Step 14: Lower the vehicle

• Use the floor jack to lift the car slightly off the jack stands.
• Remove the jack stands and lower the Rogue back onto the ground.
• Remove the wheel chocks when finished.

Step 15: Refill the cooling system

• Ensure the radiator drain plug is fully closed (snug by hand with a flathead screwdriver if needed).
• Using a funnel, slowly fill the radiator (if it has a cap) or the coolant reservoir with Nissan-compatible blue coolant (pre-mixed 50/50).
• Fill until the radiator is full and the reservoir reaches the “MAX” or “FULL” line.
• Leave the radiator cap off for the initial bleed phase, but do not start the engine yet.

Step 16: Reconnect the 12V battery

• Use a 10mm socket to reconnect the negative (-) battery cable.
• Tighten the nut snugly, but do not overtighten.

Step 17: Bleed air from the cooling system

• Start the engine and let it idle with the heater set to HOT and the blower at low–medium.
• If your Rogue has a radiator cap: keep it off initially and watch for bubbles as the engine warms up. If it only has a sealed reservoir, watch the coolant in the reservoir.
• As the thermostat opens (engine warms), the coolant level may drop; add more coolant with the funnel to keep it full.
• Gently squeeze the upper radiator hose by hand a few times to help push air out. Be careful if it starts getting hot.
• Once bubbles stop and the level stabilizes, install the radiator cap (if present) and ensure the reservoir is at the “MAX” mark.

Step 18: Final checks for leaks and temperature

• Let the engine reach normal operating temperature while watching under the hood for leaks around the thermostat housing and lower radiator hose.
• Check that warm air is blowing from the cabin heater (this confirms coolant is circulating).
• Shut the engine off and let it cool completely (at least an hour), then re-check the coolant level in the reservoir and top off to “MAX” if needed.

---

✅ After Repair

• Take a short test drive (10–15 minutes) and watch the temperature gauge; it should stay in the normal middle range.
• After the drive, inspect the thermostat housing, lower radiator hose, and drain plug area for any signs of leaks.
• Recheck coolant level the next morning when the engine is cold and top off to the “MAX” line if it dropped.
• Dispose of old coolant at a proper recycling or hazardous waste facility; do not pour it on the ground or down drains.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$450 (parts + labor)

DIY Cost: $60–$120 (parts + coolant)

You Save: $190–$330 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
