🔧 Rogue - Thermostat Replacement

You’ll be replacing the engine thermostat and its housing seal so the engine can maintain the correct temperature. This helps fix issues like overheating, running too cool, or poor heater performance in your Rogue.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work on a completely cool engine; hot coolant can cause serious burns.
• ⚠️ Coolant is toxic. Avoid skin contact and keep away from children and animals.
• ⚠️ Support the vehicle securely if you raise the front. Never rely only on a jack.
• ⚠️ Disconnect the negative battery terminal if your tools may touch the starter, alternator, or main power cables.
• ⚠️ Do not open the radiator cap or reservoir cap while the engine is hot or under pressure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Metric socket set (8mm–19mm)
• 🛠️ 1/4" drive ratchet
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–60 Nm range)
• 🛠️ Short socket extensions (3" and 6")
• 🛠️ Flathead screwdriver (medium size)
• 🛠️ Phillips screwdriver (medium size)
• 🛠️ Needle-nose pliers
• 🛠️ Hose clamp pliers (specialty)
• 🛠️ Plastic trim clip removal tool (specialty)
• 🛠️ Clean drain pan (at least 10 liters)
• 🛠️ Plastic funnel
• 🛠️ Shop rags or paper towels
• 🛠️ Safety glasses
• 🛠️ Chemical-resistant gloves
• 🛠️ Floor jack (rated 2-ton minimum)
• 🛠️ Jack stands (rated 2-ton minimum, pair)
• 🛠️ Work light or flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Engine thermostat with housing (water control valve assembly) - Qty: 1
• 🔩 Thermostat housing gasket or O-ring - Qty: 1
• 🔩 Nissan-approved engine coolant (blue long-life, premixed or concentrate) - Qty: 2–3 gallons (check label; some is concentrate)
• 🔩 New hose clamps (for any damaged or rusty clamps) - Qty: 2–4
• 🔩 Throttle body gasket - Qty: 1 (only if you must remove throttle body)
• 🔩 Shop towels / absorbent pads - Qty: 1 pack

---

📋 Before You Begin

• Park the Rogue on level ground, set the parking brake, and place the transmission in P.
• Allow the engine to cool completely; ideally let it sit for several hours.
• Open the hood and locate the coolant reservoir and radiator cap, but do not open them yet.
• If you plan to reach the thermostat from underneath, position a floor jack and raise the front, then support with jack stands at the proper support points.
• Disconnect the negative battery terminal using a 10mm socket if your hands or tools will work near main power cables.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve any residual coolant pressure

• Put on safety glasses and chemical-resistant gloves.
• Place a clean drain pan under the front of your Rogue, roughly beneath the radiator.
• Slowly loosen the coolant reservoir cap by hand until you hear any hiss of pressure release, then remove it fully.
• If it hisses strongly, wait a minute before fully opening.

Step 2: Drain enough coolant

• Position the drain pan directly under the radiator drain area (bottom of radiator, driver’s side on most Rogues).
• Use a work light to see the plastic drain plug (also called a petcock). If present, turn it gently using your hand or a flathead screwdriver until coolant begins to flow.
• If your radiator does not have an easy drain plug, you can loosen the lower radiator hose clamp with hose clamp pliers or a flathead screwdriver and slip the hose partially off to drain.
• Drain about 3–4 liters of coolant into the pan. This is usually enough so the level is below the thermostat housing.
• Once drained, close the radiator drain plug by hand or slide the hose back on and tighten the clamp using the flathead screwdriver or hose clamp pliers.

Step 3: Access the thermostat housing

• On the 2.5L in your Rogue, the thermostat housing is mounted at the front of the engine where a main coolant hose connects to the engine block.
• Remove any plastic engine covers if needed using a 10mm socket or by gently popping clips with a plastic trim clip removal tool.
• Follow the lower radiator hose or a major coolant hose from the radiator to where it connects to an aluminum or plastic housing on the front of the engine. This is your thermostat housing.
• Clear the area by moving small hoses or wiring looms aside as needed, using needle-nose pliers to slide any small clamps away from the work area.
• Take a photo before moving anything as a reference.

Step 4: Remove the main coolant hose from the thermostat housing

• Place the drain pan directly under the thermostat housing; some coolant will still spill.
• Use hose clamp pliers or a flathead screwdriver to loosen the hose clamp on the large hose attached to the thermostat housing.
• Twist the hose gently by hand to break it free, then pull it off the housing. If it is stuck, use the flathead screwdriver very gently under the lip to help, without cutting the hose.
• Let any remaining coolant drain into the pan.

Step 5: Disconnect sensors or smaller hoses (if equipped)

• Some thermostat housings have a coolant temperature sensor or small bypass hose attached.
• Unplug any electrical connector by pressing the tab and pulling straight back by hand. If stuck, gently help with needle-nose pliers.
• For any small hoses, use hose clamp pliers to move the clamp back, then twist and pull the hose off by hand.

Step 6: Remove the thermostat housing

• Use a 10mm socket with a ratchet and short extension to remove the bolts holding the thermostat housing to the engine.
• Keep track of bolt length and location; lay them out on a clean rag in the same pattern as the housing.
• Gently pull the housing straight off the engine. A little coolant will spill; catch it with the drain pan.
• If the housing is stuck, tap it lightly with the palm of your hand or the side of the ratchet handle. Do not pry hard with a screwdriver; you could damage the sealing surface.

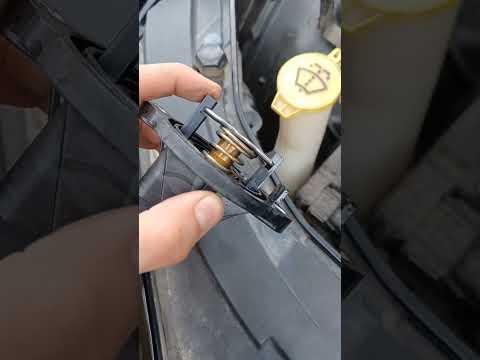

Step 7: Remove the old thermostat and gasket

• Note the orientation (which way the thermostat sits and where the jiggle valve or small bleed hole is, if present). Take a photo with your phone.
• Lift the thermostat out by hand. If it is part of an integrated assembly, you will remove the entire piece together with the housing.
• Remove the old gasket or O-ring from the groove on the housing or engine using your fingers or a gentle pass of a plastic trim tool.
• Use a clean shop rag to wipe the sealing surface on the engine and housing. Make sure there is no old gasket material, dirt, or corrosion.
• Do not scratch aluminum surfaces with metal tools.

Step 8: Install the new thermostat and gasket

• Compare the new thermostat and housing assembly to the old one to confirm they match.
• Install the new gasket or O-ring into its groove on the thermostat or housing. It should sit flat and not be twisted.
• Place the new thermostat into position in the engine or housing in the same orientation as the old one. Make sure any jiggle valve or small hole is positioned as the original (often near the top).

Step 9: Reinstall the thermostat housing

• Carefully align the housing with the bolt holes and sealing surface, making sure the gasket or O-ring stays in place.
• Install the housing bolts by hand first to avoid cross-threading.
• Use a 10mm socket and ratchet to snug the bolts evenly in a crisscross pattern.
• Then use a torque wrench (3/8" drive) with the 10mm socket to tighten the housing bolts to manufacturer-spec torque (typically around 9–12 Nm / 80–105 in-lb). Do not overtighten; these bolts can strip easily.

Step 10: Reconnect hoses and sensors

• Slide the large coolant hose fully back onto the thermostat housing until it seats fully against the lip.
• Position the hose clamp correctly and tighten it using hose clamp pliers or a flathead screwdriver. It should be snug but not cutting into the hose.
• Reconnect any smaller hoses and secure their clamps with hose clamp pliers.
• Reconnect any electrical sensor connectors by hand until they click into place.

Step 11: Reinstall any removed covers or components

• Reinstall the plastic engine cover using a 10mm socket or by pushing clips back in place.
• Make sure all tools are removed from the engine bay.

Step 12: Refill the cooling system

• Make sure the radiator drain plug and all hose connections are closed and tight.
• Place a funnel into the coolant reservoir or radiator fill neck (depending on where your Rogue is designed to be filled—usually the reservoir).
• Slowly pour Nissan-approved coolant (or equivalent) into the system until it reaches the MAX line on the reservoir.
• Squeeze the upper and lower radiator hoses by hand a few times to help push air out.

Step 13: Bleed air from the cooling system

• Reconnect the negative battery terminal using a 10mm socket if you disconnected it earlier.
• Start the engine and let it idle with the coolant reservoir cap off or loose, and the heater set to maximum heat and fan in the cabin.
• Watch the coolant level in the reservoir; as the thermostat opens, the level may drop. Add coolant through the funnel as needed to keep it near the MAX line.
• Monitor engine temperature on the dash. It should rise to the normal middle range and stay there.
• Once the heater blows hot air and there are no more big bubbles coming up in the reservoir, gently tighten the reservoir cap by hand.

Step 14: Check for leaks and final coolant level

• With the engine still running, look carefully around the thermostat housing, hose connections, and radiator drain area using a work light.
• If you see any drips, shut the engine off and correct the clamp or bolt, using the appropriate socket or screwdriver.
• After about 10–15 minutes of running at idle and then a short drive, let the engine cool completely and recheck the coolant level; top off to the MAX line if needed.

---

✅ After Repair

• ✅ Verify the temperature gauge stays in the normal middle range during a 15–20 minute drive.
• ✅ Ensure the cabin heater produces steady hot air when requested.
• ✅ Check under the Rogue and around the thermostat housing and lower radiator area for any signs of coolant leaks after the drive.
• ✅ Over the next few days, check coolant level each morning when the engine is cold and top off slightly if it drops below the MAX line.
• ✅ Dispose of old coolant safely at a recycling center or workshop; do not pour it on the ground or down drains.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 (parts + labor)

DIY Cost: $80–$160 (parts + coolant)

You Save: $190–$470 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
