Assumption: This guide is for the 1.4L turbo gasoline engine in your Jetta with the thermostat housing on the engine side of the cooling system.

🔧 Thermostat - Replacement

The thermostat regulates coolant flow so the engine warms up properly and stays at the right operating temperature. If it sticks open, the engine runs too cool; if it sticks closed, it can overheat fast.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Work only on a cold engine. Hot coolant can cause serious burns.
• Relieve coolant pressure slowly by opening the expansion tank cap only when cool.
• Disconnect the negative battery cable if you will move wiring near the starter or alternator.
• Keep coolant off belts, pulleys, and connectors.
• Use jack stands if you raise the car. Never rely on a jack alone.
• Have rags ready. Coolant will spill when the housing is opened.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Ratchet
• Torque wrench
• Torx bit set
• Phillips screwdriver
• Flat-blade screwdriver
• Pliers
• Drain pan
• Funnel
• Pick tool
• Coolant hose clamp pliers (specialty)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat assembly - Qty: 1
• Thermostat housing seal - Qty: 1
• Engine coolant - Qty: 1 vehicle fill
• Coolant hose clamp - Qty: 1 if damaged
• Coolant reservoir cap - Qty: 1 if cap is weak or damaged

---

📋 Before You Begin

• Park on level ground and let the engine go fully cold.
• Set the parking brake and put the transmission in neutral with the wheels chocked.
• Have a clean drain pan ready before opening the cooling system.
• If your car has any lower engine covers, remove them first.
• Be ready to bleed the cooling system after refilling.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Use a flat-blade screwdriver or pliers to loosen the coolant reservoir cap slowly, only when the engine is cold.
• Place a drain pan under the radiator area and open the lower drain point or disconnect the lower hose if needed.
• Drain enough coolant so the level sits below the thermostat housing.
• Keep the coolant clean if you plan to reuse it.

Step 2: Remove intake and access parts

• Use the metric socket set and ratchet to remove any intake ducting, engine cover, or splash shielding blocking access.
• Move wiring clips and vacuum lines aside gently with a pick tool if needed.
• Do not force plastic clips. They break easily.

Step 3: Remove the thermostat hoses

• Use coolant hose clamp pliers or pliers to release the hose clamps.
• Twist each hose gently before pulling it off the thermostat housing.
• Catch any spilled coolant with the drain pan.
• Mark hose positions before removal.

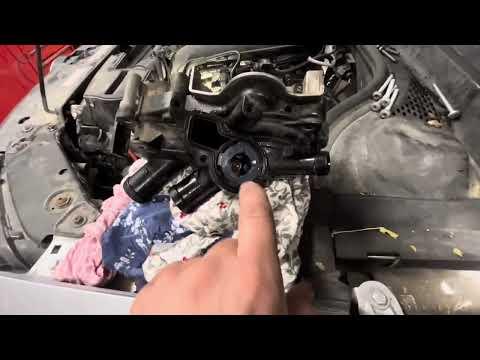

Step 4: Remove the thermostat housing

• Use the correct Torx bit with your ratchet to remove the thermostat housing bolts.
• Lift the housing straight off.
• Remove the old thermostat and seal if they come out separately.
• Inspect the housing for cracks, warping, or heavy corrosion.

Step 5: Install the new thermostat

• Install the new thermostat assembly in the same orientation as the old one.
• Fit the new thermostat housing seal in place.
• Set the housing onto the engine carefully so the seal does not pinch.
• Install the bolts finger-tight first, then snug them evenly with the Torx bit.
• Torque to factory specification for this housing.

Step 6: Reconnect hoses and removed parts

• Push each hose fully onto the housing nipple.
• Reinstall the clamps using pliers or coolant hose clamp pliers.
• Reinstall any intake pieces, brackets, and covers with the metric socket set.
• Make sure no wiring is pinched.

Step 7: Refill and bleed the cooling system

• Use a funnel to refill with the correct coolant mixture.
• Fill slowly to reduce air pockets.
• Start the engine and let it idle with the heater set to hot.
• Keep topping off the reservoir as the level drops.
• When the cooling fans cycle and warm air comes from the vents, install the cap.

Step 8: Check for leaks and final level

• Use a flashlight to inspect the thermostat housing, hose ends, and drain area.
• Shut the engine off, let it cool completely, then recheck the coolant level.
• Add coolant to the MIN/MAX range as needed.

---

✅ After Repair

• Drive the car and watch the temperature gauge for normal operation.
• Check again for coolant leaks after the first heat cycle.
• Recheck coolant level the next morning when fully cold.
• If the heater is weak or the temperature fluctuates, air may still be trapped in the system.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $80-$180 (parts only)

You Save: $370-$670 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
