🔧 Thermostat - Replacement

Replacing the thermostat on your Golf means removing the coolant from the cooling system, accessing the thermostat housing on the engine, and installing a new seal and thermostat assembly. On this engine, it’s smart to replace the thermostat housing seal and refill with the correct VW coolant mix afterward.

Difficulty Level: Intermediate | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening the coolant system.
• Coolant is pressurized when hot; remove the reservoir cap only on a cold engine.
• Keep coolant away from pets and children; it is toxic.
• Use jack stands if you raise the front of the vehicle; never rely on a jack alone.
• Disconnect the negative battery cable if you will work near the starter or alternator wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• Torx T25 screwdriver
• Torx T30 screwdriver
• Ratchet
• 1/4-inch extension
• Drain pan
• Funnel
• Coolant vacuum fill tool (specialty)
• Coolant hose clamp pliers
• Trim removal tool
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat assembly - Qty: 1
• Thermostat housing seal - Qty: 1
• VW-spec coolant (G13 or G12evo mixed 50/50 with distilled water) - Qty: 2-3 gallons mixed
• Distilled water - Qty: 2-3 gallons
• Coolant hose clamps - Qty: As needed
• Thermostat housing bolts - Qty: As needed

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely.
• Put the front of the vehicle on jack stands if you need access from underneath.
• Have a clean drain pan ready before opening the cooling system.
• Use a coolant vacuum fill tool if available; it helps prevent air pockets.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Open the coolant reservoir cap slowly on a cold engine.
• Use a drain pan under the radiator area and open the lower radiator drain or disconnect the lower hose if your setup does not have a drain plug.
• If needed, use coolant hose clamp pliers to release the hose clamp.
• Let the coolant drain fully.

Step 2: Remove intake and access parts

• Use a Torx T25 screwdriver and 10mm socket to remove the intake ducting and any top covers blocking access.
• Remove any hoses or brackets that prevent access to the thermostat housing.
• Keep fasteners grouped by location.

Step 3: Access the thermostat housing

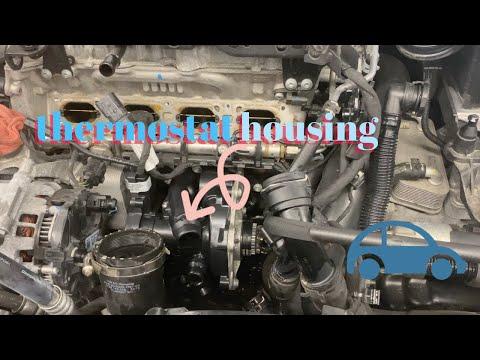

• Locate the thermostat housing at the engine coolant outlet area.
• Use a Torx T30 screwdriver or the correct socket for the housing fasteners.
• Remove the bolts evenly to avoid warping the housing.
• Torque on reassembly: 9 Nm (80 in-lbs) for small thermostat housing fasteners unless the fastener style calls for a different factory spec.

Step 4: Remove the old thermostat

• Pull the thermostat housing straight off once the bolts are removed.
• Remove the old thermostat and seal.
• Clean the mating surface with a lint-free rag.
• Do not scratch the aluminum housing.

Step 5: Install the new thermostat

• Place the new thermostat and new seal in position.
• Make sure the seal sits flat all the way around.
• Install the housing by hand first.
• Use the Torx T30 screwdriver to snug the bolts evenly.
• Torque to 9 Nm (80 in-lbs).

Step 6: Reassemble removed parts

• Reinstall any hoses, clamps, intake ducts, and covers.
• Use the 10mm socket and Torx T25 screwdriver for the removed hardware.
• Make sure every clamp is fully seated.

Step 7: Refill and bleed the cooling system

• Refill with the correct VW coolant mix using a funnel or coolant vacuum fill tool.
• Fill slowly to reduce trapped air.
• If you do not have a vacuum fill tool, top off the reservoir and bleed air using the heater set to full hot.
• Start the engine and let it idle while watching the coolant level.
• Top off as the level drops.

Step 8: Check for leaks

• Inspect the thermostat housing, hoses, and drain area for leaks.
• Bring the engine to operating temperature.
• Watch for stable heater output and normal temperature gauge behavior.
• Torque any removed drain or fasteners to factory spec if applicable.

---

✅ After Repair

• Recheck coolant level after the first heat cycle and again after the first drive.
• Confirm there are no warning lights or overheating issues.
• If the temperature still fluctuates, scan for cooling system fault codes.
• Dispose of old coolant properly.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $430-$690 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
