🔧 Thermostat - Replacement

Your Prius C uses a coolant-controlled thermostat to regulate engine temperature. If it is stuck open or closed, you can get slow warm-up, poor cabin heat, overheating, or fault codes. This job involves draining some coolant, replacing the thermostat and seal, then refilling and bleeding the cooling system carefully.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Work only on a fully cooled engine. Hot coolant can cause severe burns.
• Hybrid system warning: keep the vehicle OFF and key fob away from the car while working.
• Do not open the radiator cap when hot.
• Use jack stands if you raise the front of the vehicle. Never rely on a jack alone.
• Battery disconnect is not required for this repair, but it is safer to leave the vehicle OFF and undisturbed.
• Use only Toyota-approved coolant of the correct type. Do not mix coolant types.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• Ratchet
• Extension bar
• Flat-blade screwdriver
• Drain pan
• Funnel
• Pliers
• Torque wrench
• Shop towels
• Safety glasses
• Gloves
• Jack stands
• Floor jack (rated 3-ton minimum)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat - Qty: 1
• Thermostat gasket / seal - Qty: 1
• Engine coolant - Qty: 1 to 2 gallons
• Coolant drain plug washer - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely.
• Move the shift lever to Park and turn the car fully OFF.
• Open the hood and remove the engine cover if equipped.
• Tip: Have the new thermostat ready before draining coolant.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator drain area.
• Use a flat-blade screwdriver or your fingers, depending on the drain design, to open the radiator drain plug slowly.
• Drain enough coolant to get the level below the thermostat housing.
• Close the drain plug after draining. Torque to 2.0 N·m (18 in-lbs) if equipped with a threaded drain plug.

Step 2: Remove access parts

• Use a 10mm socket and ratchet to remove any intake ducting, covers, or brackets blocking access to the thermostat housing.
• Set all hardware aside in order so nothing gets lost.
• Tip: Take a photo before removing parts.

Step 3: Remove the thermostat housing

• Use a pliers to loosen the hose clamp, then slide the hose off the thermostat housing.
• Use a 12mm socket, extension bar, and ratchet to remove the thermostat housing bolts.
• Remove the housing carefully and note the thermostat position.
• Tightening spec on reassembly: 9 N·m (80 in-lbs).

Step 4: Replace the thermostat

• Pull the old thermostat out of the housing.
• Remove the old gasket or seal.
• Install the new thermostat in the same orientation as the old one.
• Install the new gasket or seal. Make sure it sits flat and clean.
• Tip: A crooked seal can cause leaks.

Step 5: Reinstall the housing

• Position the housing back on the engine.
• Start the bolts by hand first.
• Use a 12mm socket and torque wrench to tighten the bolts evenly.
• Torque to 9 N·m (80 in-lbs).
• Reconnect the coolant hose and secure the clamp with pliers.

Step 6: Reinstall removed parts

• Use a 10mm socket and ratchet to reinstall any ducting, covers, or brackets you removed.
• Make sure nothing is pinched or loose.

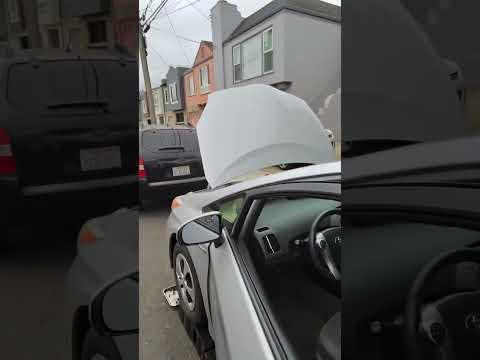

Step 7: Refill and bleed the cooling system

• Use a funnel to refill the cooling system with the correct coolant.
• Fill slowly to reduce air pockets.
• Start the engine and let it reach operating temperature with the heater set to HOT.
• Watch coolant level and top off as air bleeds out.
• Check for bubbles, leaks, and normal heater output.
• Tip: Squeezing the upper radiator hose gently can help move trapped air.

---

✅ After Repair

• Check for coolant leaks at the thermostat housing and drain plug.
• Verify the engine warms up normally.
• Confirm the heater blows hot air.
• Recheck coolant level after a full heat cycle and again the next day.
• If a warning light stays on, scan for coolant temperature-related codes.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $40-$110 (parts only)

You Save: $210-$390 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
