🔧 4Runner - Thermostat Replacement

The thermostat sits in the engine’s coolant inlet and controls when coolant starts flowing to the radiator. Replacing it requires draining some coolant, removing the thermostat housing, installing a new thermostat and seal, then refilling and bleeding air so the engine doesn’t overheat.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Stock cooling system with OE-style thermostat and O-ring seal.

---

⚠️ Safety & Precautions

• ⚠️ Only work on a completely cold engine; hot coolant can cause severe burns.
• ⚠️ Use jack stands on the frame; never work under a vehicle on a jack.
• ⚠️ Coolant is toxic; clean spills immediately and store drained coolant sealed.
• ⚠️ Don’t overtighten small housing bolts; stripped aluminum threads are expensive to fix.
• Battery disconnect is not required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Spill-free funnel kit (specialty)
• Shop towels
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3" extension
• Torque wrench (inch-pound)
• Flathead screwdriver
• Hose clamp pliers (specialty)
• Plastic trim clip tool
• Gasket scraper (plastic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat O-ring / gasket - Qty: 1
• Toyota Super Long Life Coolant (pink, premixed 50/50) - Qty: 2 gallons
• Lower radiator hose clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool completely (radiator hose should feel cool).
• Raise the front with a floor jack and support with jack stands.
• Remove the radiator cap only when cold (turn slowly to release any pressure).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine under cover

• Use a 10mm socket with a 3/8" ratchet to remove the bolts.
• Use a plastic trim clip tool to pop out the plastic clips (it’s a fork-shaped tool that lifts clips without breaking them).
• Set the cover and hardware aside.

Step 2: Drain coolant into a pan

• Position a drain pan (at least 10-quart) under the radiator drain area.
• Open the radiator drain cock using a flathead screwdriver and drain until the radiator flow slows.
• Close the drain cock.
• Tip: Keep towels ready; coolant runs along plastic panels.

Step 3: Locate the thermostat housing

• Find the lower radiator hose (the large hose at the bottom of the radiator).
• Follow it to where it connects to the engine—this connection point is the thermostat housing area.

Step 4: Remove the lower radiator hose from the housing

• Use hose clamp pliers (specialty) to squeeze the spring clamp and slide it backward on the hose (these pliers lock the clamp open so you don’t fight it).
• Twist the hose by hand to break it loose, then pull it off.
• Keep the drain pan underneath for the extra coolant that will spill.

Step 5: Remove the thermostat housing cover

• Use a 10mm socket, 3/8" ratchet, and 3" extension to remove the housing bolts.
• Carefully separate the cover. If it sticks, wiggle gently—don’t pry hard on aluminum.

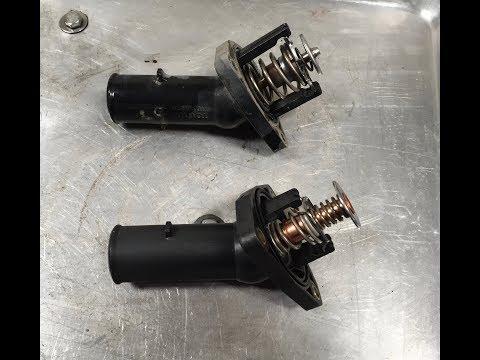

• Pull out the thermostat and note how it sits before removal.

Step 6: Clean the sealing surfaces

• Remove the old O-ring / gasket.
• Use a gasket scraper (plastic) and shop towels to clean both mating surfaces.
• Make sure no old rubber or debris is left behind.

Step 7: Install the new thermostat and O-ring

• Install the new O-ring / gasket on the thermostat (or into the housing groove, depending on the part design).
• Install the thermostat in the same direction as the old one.
• If the thermostat has a small air-bleed “jiggle valve,” position it at the top (this helps air escape while filling).

Step 8: Reinstall the housing cover and torque the bolts

• Install the cover and hand-start all bolts (this prevents cross-threading).
• Snug the bolts evenly using a 10mm socket.
• Final tighten with a torque wrench (inch-pound): Torque to 10 Nm (89 in-lb).

Step 9: Reinstall the lower radiator hose and clamp

• Push the hose fully onto the housing until it seats completely.
• Use hose clamp pliers (specialty) to move the clamp back into its original position.
• Replace the clamp if it feels weak or deformed.

Step 10: Refill coolant

• Use a spill-free funnel kit (specialty) on the radiator fill neck.
• Pour in Toyota Super Long Life Coolant (pink, premixed 50/50) until the radiator stays full.
• Fill the overflow reservoir to the “FULL” line using a funnel.

Step 11: Bleed air (“burp” the cooling system)

• Start the engine and set the heater to HOT with the fan on low.
• Let it idle while watching the funnel level; add coolant as the level drops.
• Gently squeeze the upper radiator hose a few times to help move trapped air.
• When the thermostat opens, the level may drop suddenly—top it off again.
• When bubbles stop and cabin heat is steady, shut the engine off.
• After it cools down, remove the funnel and install the radiator cap.
• Tip: Recheck coolant after the first drive.

Step 12: Reinstall under cover and lower the vehicle

• Reinstall the under cover using the 10mm socket and plastic trim clip tool.
• Lower the vehicle using the floor jack (rated 3-ton minimum) and remove the jack stands.

---

✅ After Repair

• Check for leaks around the thermostat housing and the lower hose connection while idling.
• Verify the temperature gauge stays normal on a 10–15 minute drive.
• After a full cool-down, recheck radiator level and reservoir level and top off if needed.
• If the heater blows cold or the gauge climbs, stop and bleed air again.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$160 (parts only)

You Save: $190-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
