🔧 Frontier - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it’s stuck closed you can overheat, and if it’s stuck open you may run cool with weak heater and poor fuel economy.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; coolant can spray and burn you.
• ⚠️ Support the truck with jack stands before going underneath; never rely on a floor jack alone.
• ⚠️ Coolant is toxic to people and pets—catch it in a drain pan and dispose of it properly.
• ⚠️ Keep hands/loose clothing away from belts and the fan while the engine is running during bleeding.
• ⚠️ Battery disconnect is not required, but disconnect the negative cable if your tools could touch the alternator power terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Spill-free funnel kit (specialty)
• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3/8" drive extension (6")
• Torque wrench (inch-pound or low-range Nm)
• Hose clamp pliers (specialty)
• Pick tool
• Plastic trim tool
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket / O-ring - Qty: 1
• Engine coolant (Nissan Blue Long Life or equivalent pre-mix) - Qty: 2-3 gallons
• Hose clamp - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (ideally overnight).
• Set the HVAC to full HOT during the bleeding step later (this opens the heater circuit).
• Take a quick photo of hose routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front safely

• Use a floor jack (rated 3-ton minimum) to lift the front at the frame jacking point.
• Set the truck down onto jack stands (rated 3-ton minimum) and keep wheel chocks in place.

Step 2: Remove the front skid plate (if equipped)

• Place a drain pan (at least 10-quart) under the radiator area.
• Use a 12mm socket and 3/8" drive ratchet to remove the skid plate bolts, then lower the plate.

Step 3: Drain coolant from the radiator

• Remove the radiator cap only after the engine is cool. Use nitrile gloves and safety glasses.
• Open the radiator drain cock and drain into your drain pan (at least 10-quart).
• If the drain cock is tight or hard to reach, use a plastic trim tool gently—don’t force it.

Step 4: Access the thermostat housing (water inlet)

• From the front/underneath, locate the lower radiator hose where it connects to the engine’s water inlet (thermostat housing).
• Use hose clamp pliers (specialty) to compress the hose clamp and slide it back on the hose. (Hose clamp pliers are locking pliers made to squeeze spring clamps safely.)
• Twist the hose gently to break it loose, then pull it off the housing. Use a pick tool carefully at the edge if it’s stuck. Don’t gouge the hose or housing.

Step 5: Remove the thermostat housing

• Use a 10mm socket, 3/8" drive ratchet, and 3/8" drive extension (6") to remove the thermostat housing bolts.
• Pull the housing off and be ready for more coolant to spill into the drain pan (at least 10-quart).

Step 6: Replace the thermostat and gasket

• Note how the old thermostat sits, then remove it.
• Clean the mating surfaces with shop towels until they’re dry and smooth.
• Install the new thermostat with the jiggle valve/air bleed at the top if your thermostat has one. (The jiggle valve is a tiny loose pin/port that lets trapped air escape.)
• Install the new thermostat gasket / O-ring (do not reuse the old one).

Step 7: Reinstall the housing and hose

• Reinstall the housing bolts by hand first to avoid cross-threading.
• Use a torque wrench (inch-pound or low-range Nm) to tighten evenly: Torque to 10 Nm (89 in-lbs).
• Reinstall the lower radiator hose and reposition the clamp using hose clamp pliers (specialty).
• Put the clamp back in its original spot.

Step 8: Refill coolant

• Close the radiator drain cock.

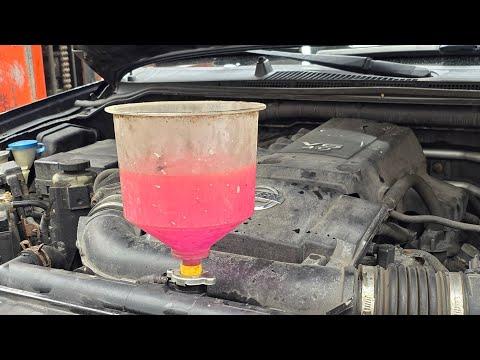

• Fill the radiator using a spill-free funnel kit (specialty) and engine coolant (Nissan Blue Long Life or equivalent pre-mix).
• Fill the overflow reservoir to the “MAX” line using a funnel.

Step 9: Bleed air from the cooling system

• Start the engine and let it idle with the heater set to HOT.
• Keep the spill-free funnel kit (specialty) installed so the coolant level stays above the radiator neck.
• As the engine warms up, gently squeeze the upper radiator hose by hand (with nitrile gloves) to help push air out.
• Watch for bubbles. When the thermostat opens, the coolant level may drop—add coolant as needed.
• Once bubbles stop and heat is steady, shut the engine off and let it cool, then top off the radiator and reservoir.

Step 10: Reinstall the skid plate and lower the truck

• Reinstall the skid plate using a 12mm socket and 3/8" drive ratchet.
• Lift slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), then lower the truck.

Assumption: thermostat housing fasteners are small M6 bolts; torque listed is typical for this setup.

---

✅ After Repair

• With the engine fully warm, check for leaks around the thermostat housing and the lower radiator hose connection.
• Verify the heater blows hot and the temperature gauge stays normal during a 10-15 minute drive.
• After the engine cools completely, recheck the reservoir level and top off if needed.
• If you see overheating, gurgling, or no heat, stop and re-bleed—air is still trapped.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
